Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-60
(4) Remove the cup S M3x6 Taptite screw, and then remove the ground spring.
(5) Remove the six bind B M4x12 Taptite screws.
(6) Remove the cup S M3x6 Taptite screw.
(7) Remove the cup S M3x6 Taptite screw, and then remove the sub gear plate.
(8) Remove the LD harness 5P from the drive unit.
(9) Remove the drive unit.
(10) Disconnect the connector for the main motor harness from the main motor ASSY.

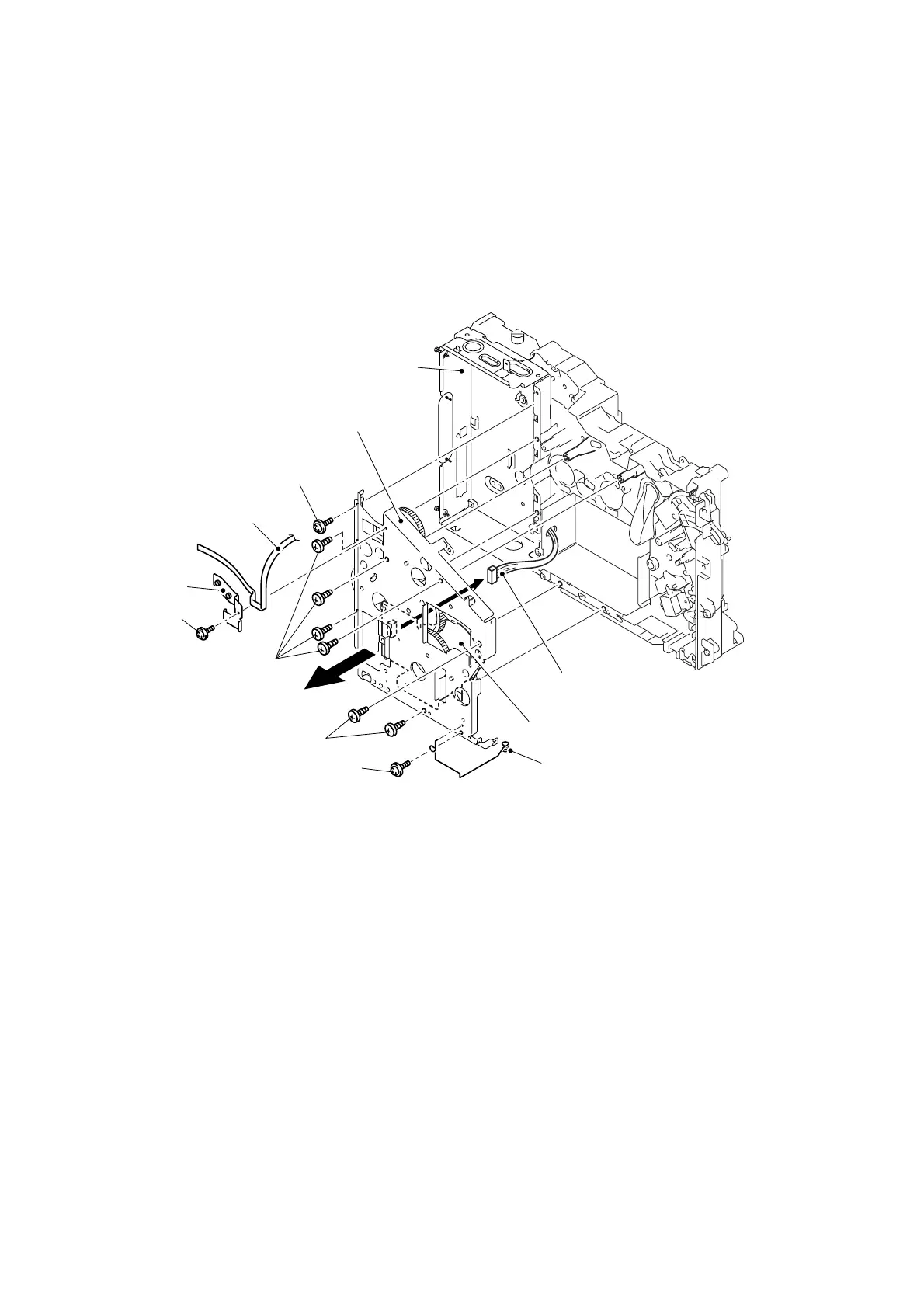

Fig. 4-109
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6
Taptite, cup S M3x6
Main motor harness
Taptite, cup S
M3x6
Sub gear plate
Main frame L unit
Drive unit
Main motor ASSY
Ground spring
LD harness 5P

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
