Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-61
(11) Remove the four cup S M3x6 Taptite screws, and then remove the main motor ASSY.
(12) Remove the develop joint and joint spring from the drive unit.
(13) Release the two hooks from the develop joint, and remove the joint stopper.
(14) Remove the gear 25/130 and fuser drive gear from the drive unit.

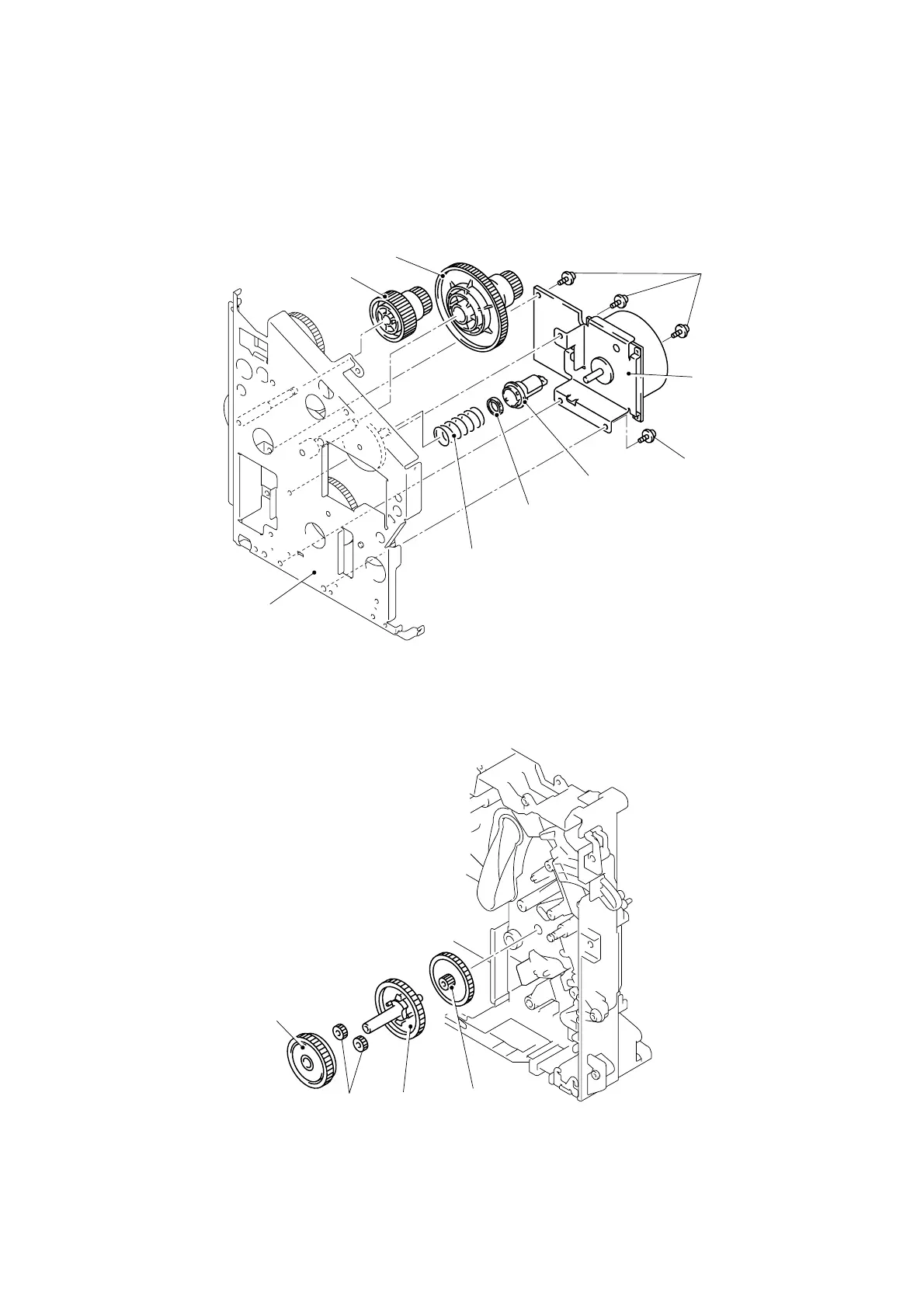

Fig. 4-110
(15) Remove the gear 40/54Y, gear 17 planetary, gear 45 arm F/R and gear 20 center F/R
from the frame L.
Fig. 4-111
Taptite, cup S M3x6
Main motor ASSY
Drive unit
Taptite, cup S M3x6
Develop joint
Joint stopper
Joint spring
Gear 40/54Y
Gear 17
planetary
Gear 20
center F/R
Gear 45
arm F/R
Gear 25/130
Fuser drive gear

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
