Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-62

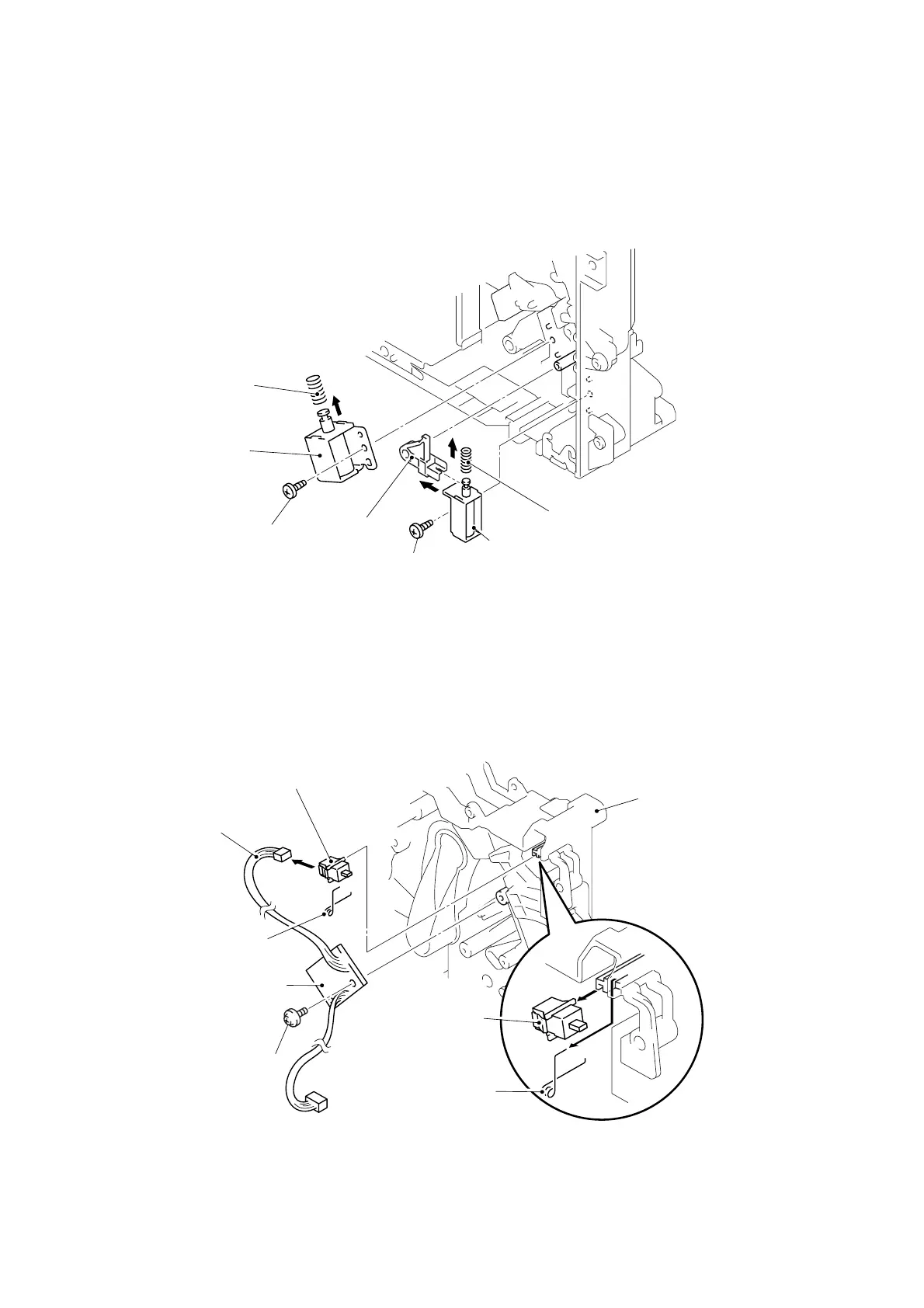

(16) Remove the bind B M3x10 Taptite screw.
(17) Remove the P/R solenoid ASSY, the P/R solenoid lever and the solenoid release spring
P/R.
(18) Remove the bind B M3x10 Taptite screw.
(19) Remove the F/R solenoid ASSY and solenoid release spring F/ R.
Fig. 4-112
(20) Disconnect the connector from the document cover sensor.
(21) Remove the bind B M3x10 Taptite screw.
(22) Remove the toner LED PCB unit ASSY.
(23) Remove the sensor clip.
(24) Remove the document cover sensor from the frame L.
Fig. 4-113
Taptite, bind B M3x10
F/R solenoid
A
SS
Y
Solenoid release spring P/R
P/R solenoid ASSY
Toner LED PCB
unit ASSY
Sensor clip
Document cover
sensor
Sensor clip
P/R solenoid lever
Solenoid release
spring F/R
Taptite, bind B M3x10
Taptite, bind B M3x10
Frame L
Document cover sensor
Connector

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
