Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-44

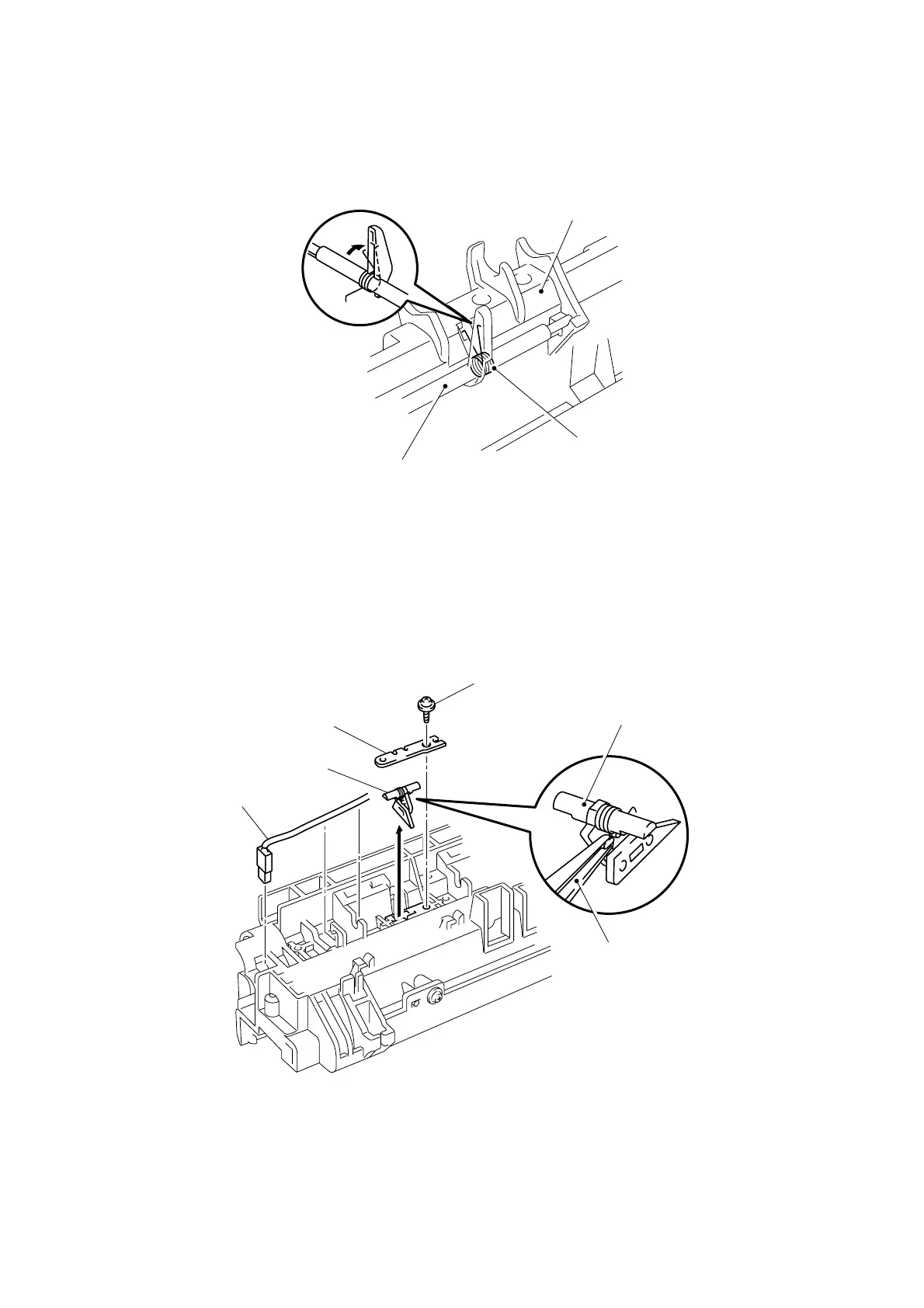

NOTE:
When re-assembling the paper eject actuator and the eject actuator spring to the FU frame
lower, ensure the paper eject actuator is seated correctly in the locating channel referring to
the figure below;
Fig. 4-79
(28) Disconnect the heater harness.
(29) Remove the four cup B M3x6 Taptite screws.
(30) Remove the four separate claw holder plate.
(31) Remove the four separate claw ASSY.
Fig. 4-80
Paper eject actuator
Eject actuator spring
FU frame lower
Separate claw ASSY
Separate claw ASSY
Heater harness
Separate claw holder plate
Taptite, cup B M3x6
Tweezers

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
