Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-42
(19) Remove the three cleaner spring S.
(20) Remove the three cleaner pinch roller ASSY S.
(21) Remove the cleaner spring L.
(22) Remove the cleaner pinch roller ASSY L.

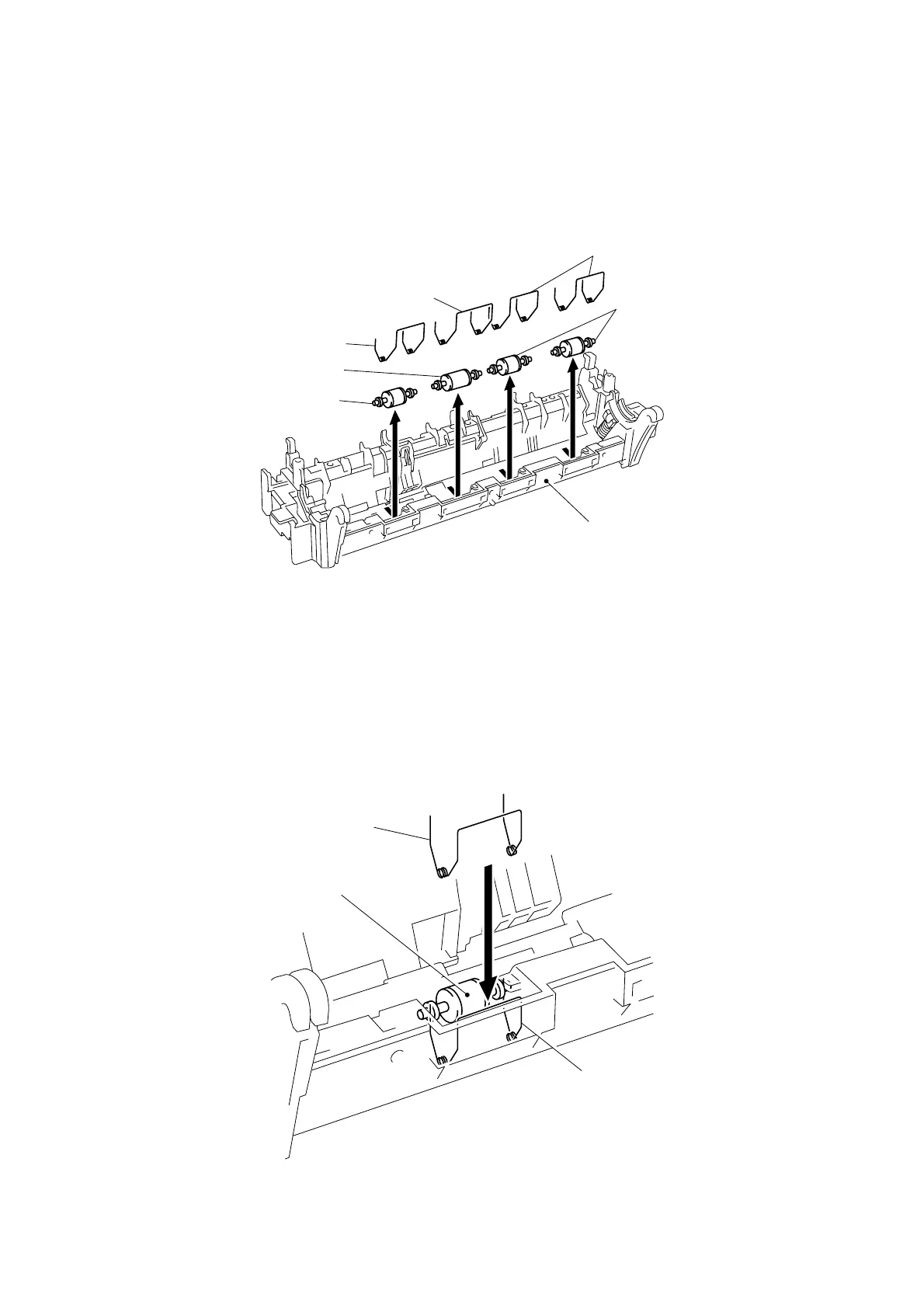

Fig. 4-75
NOTE:
• When re-assembling the cleaner pinch roller ASSY complete with the cleaner spring onto
the FU frame lower, ensure the direction of the roller is correct referring to the figure above.
• Ensure that the both springs are seated correctly in the locating channel and does not
protrude from either end.
• Ensure also that the proper spring is fixed to the each cleaner pinch roller ASSY because
the both springs are NOT identical with each other.
Fig. 4-76
FU frame lower
Cleaner pinch roller ASSY S
Cleaner pinch roller ASSY S
Cleaner pinch roller ASSY L
Cleaner spring S
Cleaner spring
FU frame lower
Cleaner pinch roller ASSY
Cleaner spring S
Cleaner spring L

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
