MFC-8220
SERVICE MANUAL
4-65

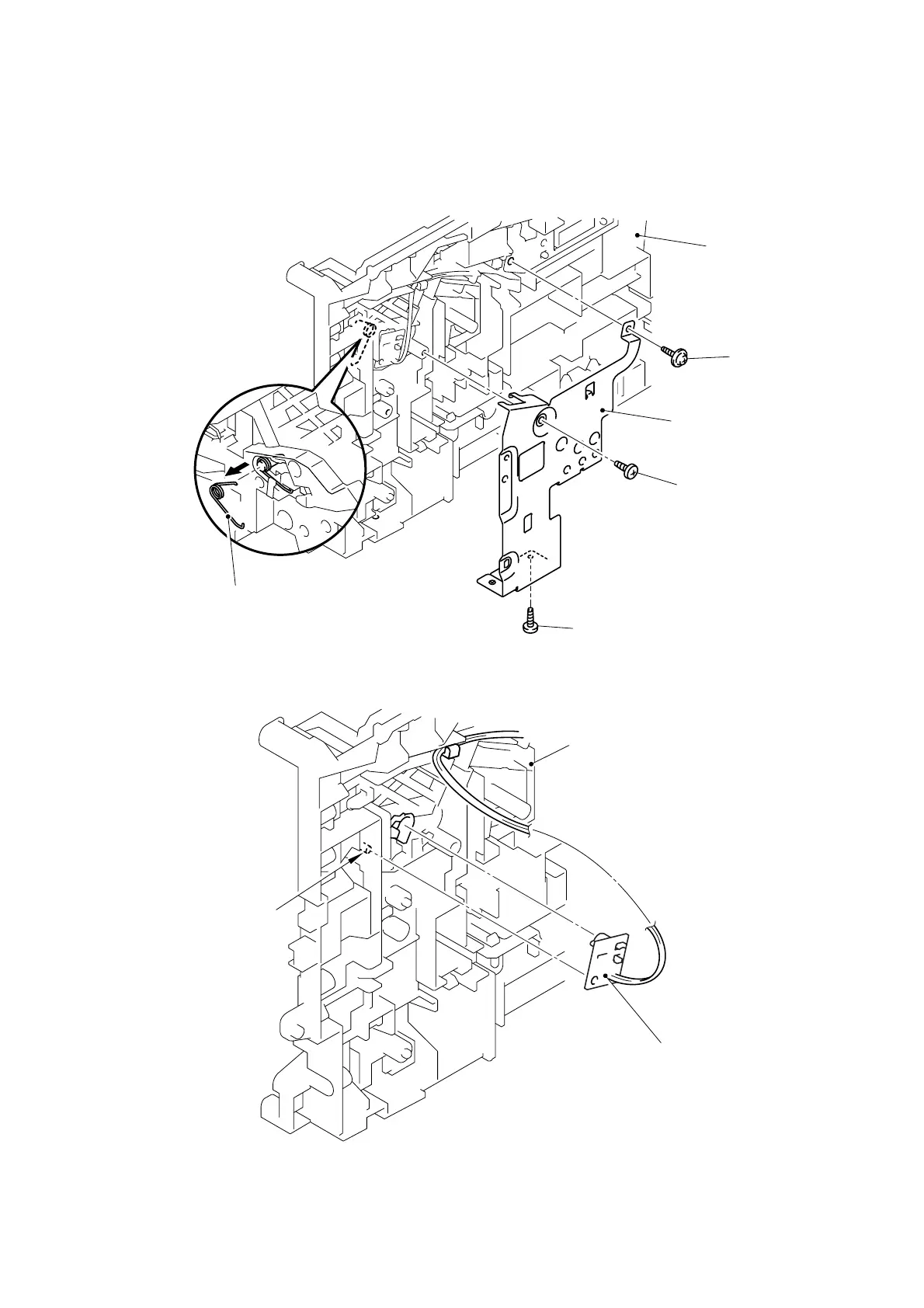

(5) Remove the two bind B M4x12 Taptite screws.
(6) Remove the cup S M3x6 Taptite screw.
(7) Remove the drum spring R.
(8) Remove the FG plate.
Fig. 4-117
(9) Remove the toner sensor PCB unit (Light reception).
Fig. 4-118
Toner sensor PCB unit
(Light reception)
Pin
Drum spring R
Taptite, bind B M4x12
Taptite, bind B M4x12
FG plate
Taptite, cup S M3x6
Main frame R
Main frame R
