Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
5-5
!

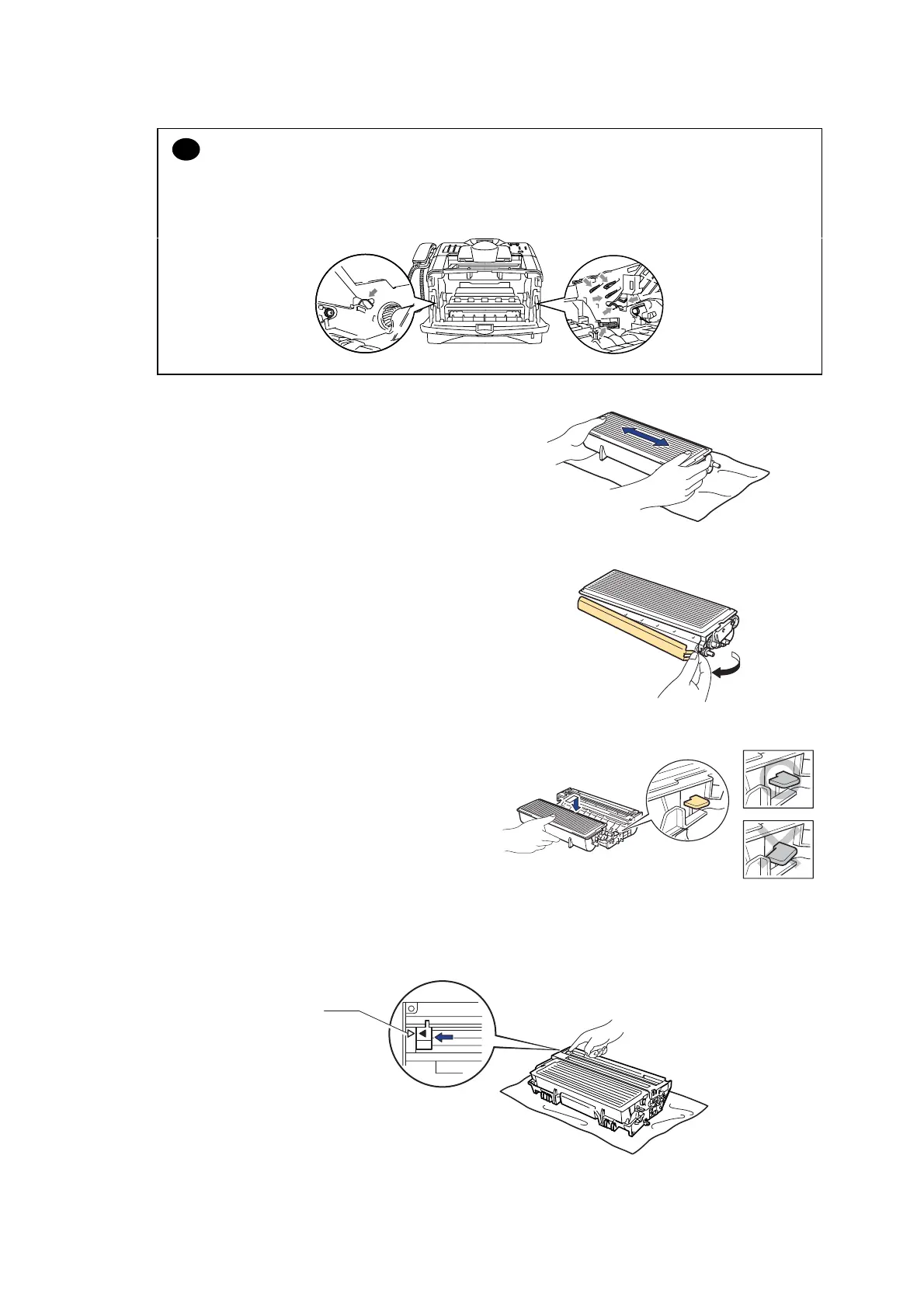

CAUTION:
• It is recommended to place the drum unit assembly on a piece of disposable paper or
cloth in case you accidentally spill or scatter toner.
• To prevent damage to the machine from static electricity, do not touch the electrodes
shown in the figure below.
(3) Push down the blue lock lever and take
the toner cartridge out of the drum unit.
(4) Unpack the new toner cartridge. Hold
the cartridge level with both hands and
gently rock it from side to side five or six
times to spread the toner evenly inside
the cartridge.
Fig. 5-9
(5) Remove the protective cover.
Fig. 5-10
(6) Put the new toner cartridge firmly into
the drum unit until you hear it lock into
place. If you put it in properly, the lock
lever will lift automatically. Make sure
you fit the toner cartridge properly or it
may separate from the drum unit.
Fig. 5-11
(7) Clean the primary corona wire inside the drum unit by gently sliding the blue tab from
right to left several times. Return the tab to the home position before you put the drum
unit back in the machine. If you do not, printed pages may have a vertical stripe.
Fig. 5-12
Home position

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
