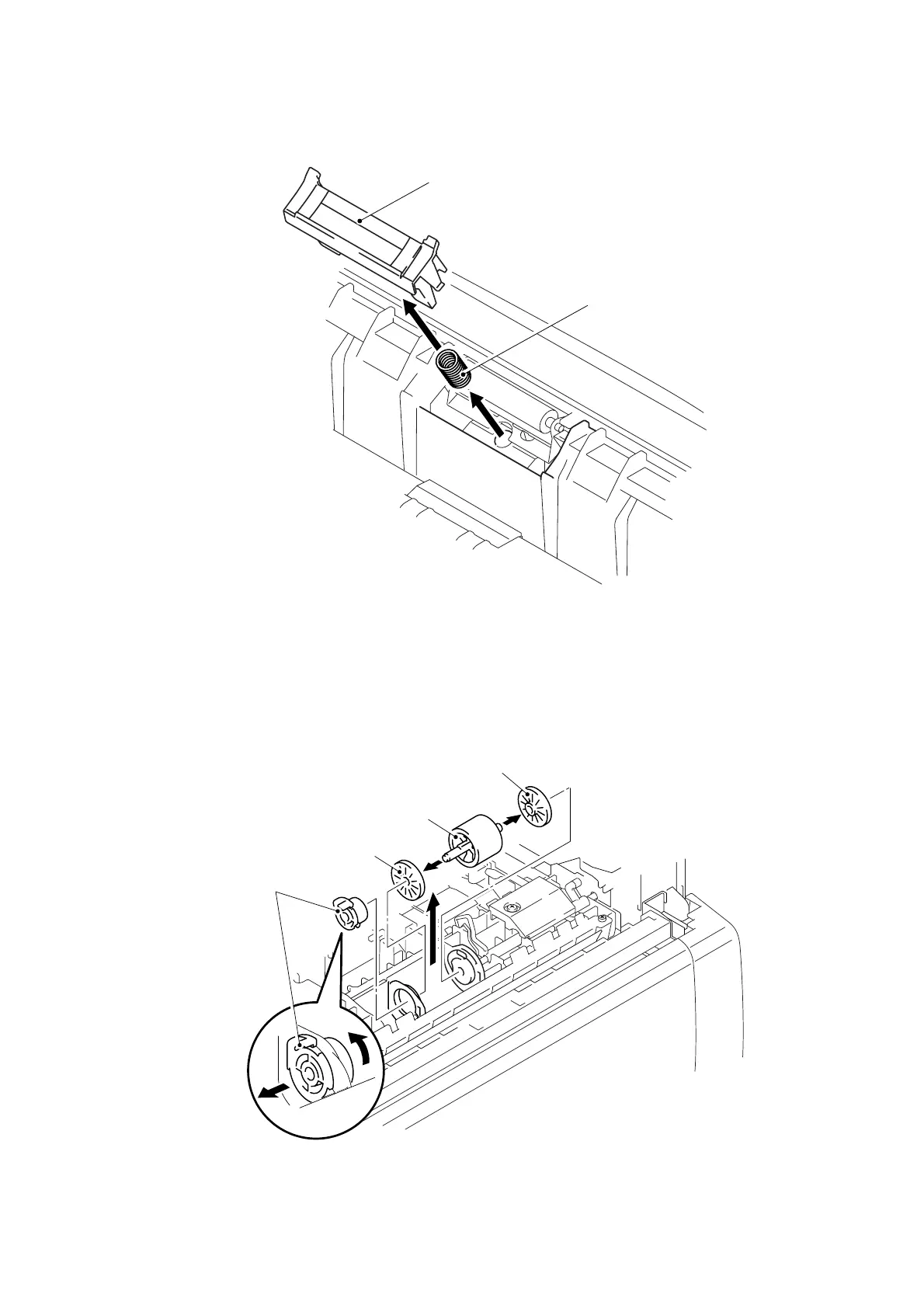

3) Remove the pad holder and the separation pad spring from the paper tray.
Fig.5-29
4) Turn the machine over.
5) Remove the bush R.
6) Remove the paper pick-up roller ASSY.
7) Remove the two roller collars from the paper pick-up roller ASSY.
Fig.5-30
Pad holder
Separation pad spring
Paper pick-up roller ASSY
Bush R
Roller collar
Roller collar
1
2
