Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL

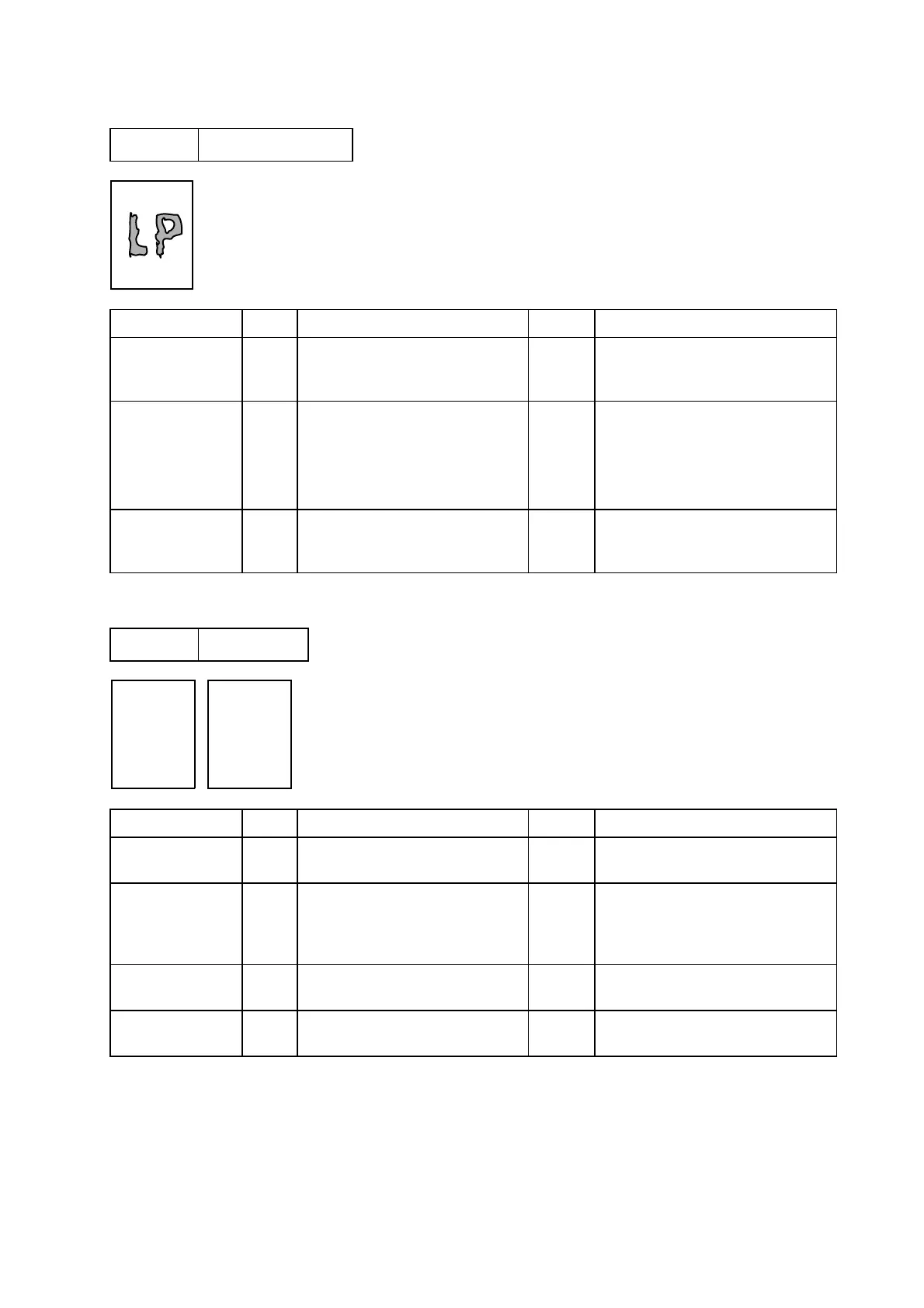

6-41
I-13 Image distortion
Possible cause Step Check Result Remedy
Laser unit
installation
1 Is the laser unit secured to the
frame incorrectly?
(Check if there is any play.)
Yes Secure the unit correctly and
tighten the screws.
Laser scanner
LD emission
failure
Scanner motor
rotation failure
2 Is the laser diode or the
scanner motor defective?
Yes Replace the laser unit.
Scanner
connection
failure
3 Is the scanner harness
connected properly?
(Check if it is coming loose.)
No Connect the harness correctly.
I-14 Faint print
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Print out test print out test print out test Print out test print o Print out test print o
Possible cause Step Check Result Remedy
Machine
installation
1 Is the machine placed
horizontally?
No Place the machine on a flat
surface.
Toner cartridge
failure
2 Does the problem happen
immediately after replacing the
toner cartridge with a new
one?
Yes Remove and carefully shake the
toner cartridge horizontally.
Scanner window
dirty
3 Is the scanner window dirty? Yes Clean the scanner window with a
soft dry cloth.
Laser unit failure 4 Is the problem solved by
replacing the laser unit?
Yes Replace the laser unit.

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
