Brother MFC-8220 - Page 32

CHAPTER 2 INSTALLATION AND BASIC OPERATION
2-8

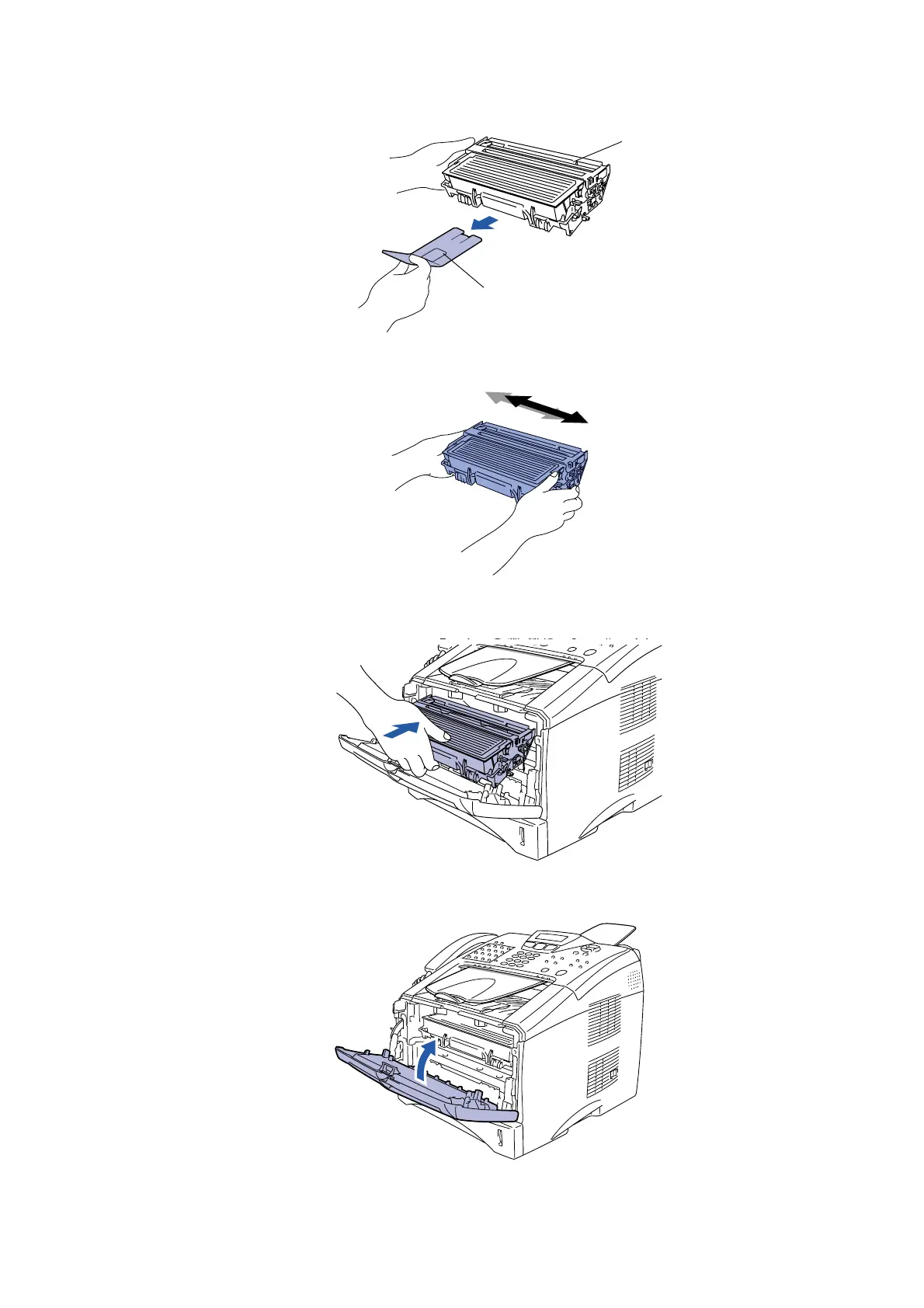

(2) Unpack the drum unit assembly. Remove the protective part.
Fig. 2-7
(3) Rock it from side to side several times to distribute the toner evenly inside the assembly.
Fig. 2-8
(4) Push the drum unit assembly into the machine (until it snaps into place).
Fig. 2-9
(5) Close the front cover of the machine.
Fig. 2-10
Drum unit assembly
Protective part
