Operating structure / Factory settings
EXTRAS SERIAL.CONFIG
CAL.USER
SET.FACTORY
SER.I/O
calibr. POS
calibr. INP
2)
calibr. SP
10)
calibr. PV
1)
copy FACT->USER
factory reset
I/O.MODE
BAUDRATE
HART
1200
9600
POS.pMIN
INP 4mA 0
13)
SP 4mA 0
13)
PV 4mA 0
14)
CAL reset
Burst
2400
19200
Auto
4800
38400
POS.pMAX
INP 20mA 0
13)
SP 20mA 0
13)
PV 20mA 0
14)
SET VALUE
15)
PT100:
Activatable auxiliary functions
x*
x**
x**
x**
x*
x**
x**
x**
x**
* Value is set for X.TUNE
(automatic or manual).
** Value is set by the manufacturer
during device-specific calibration.

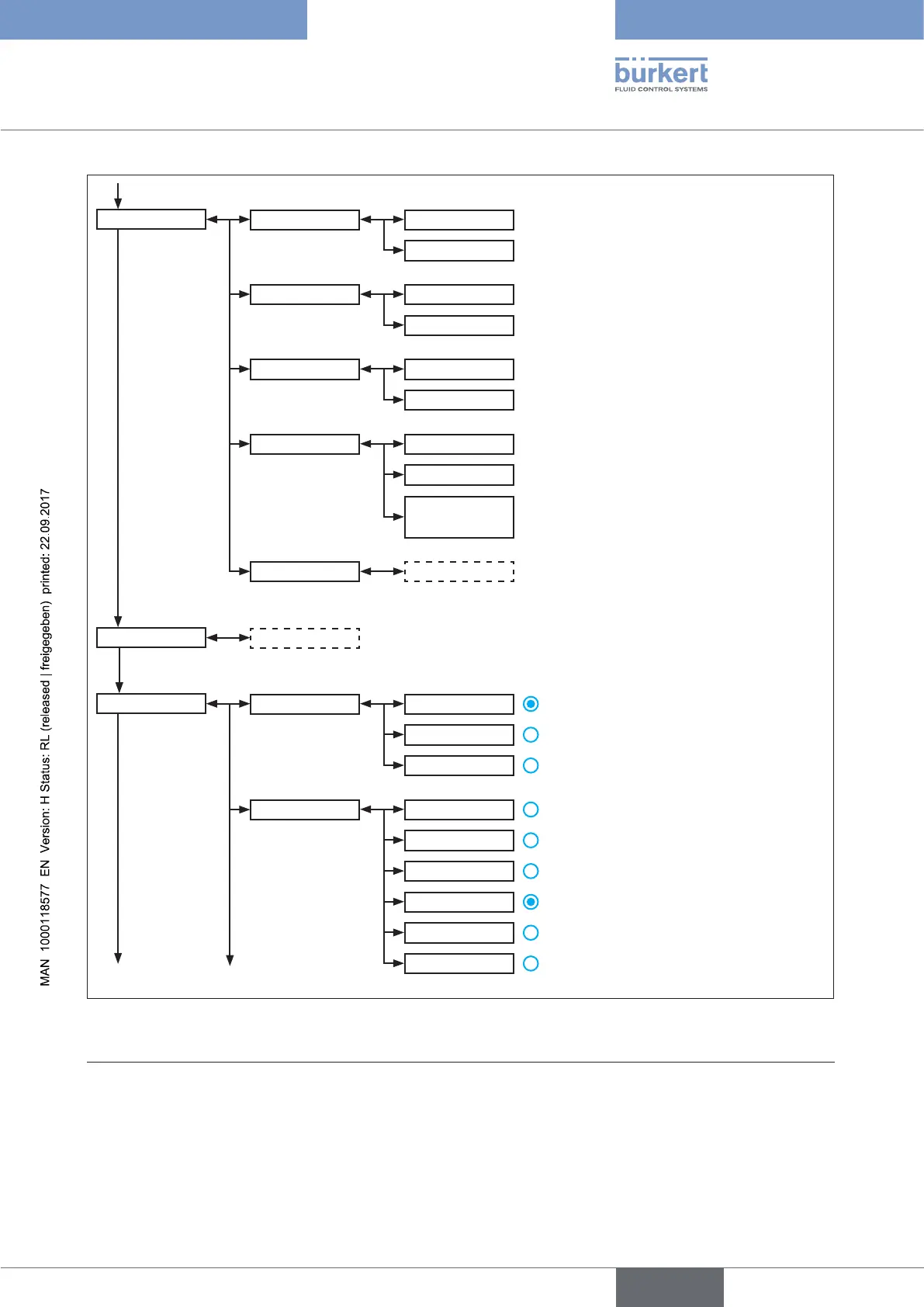

Figure 108: Operating structure - 9
1) only process controller Type 8793
2) only for positioner mode
10) Only process controller Type 8793 and for external set-point value default
(P.CONTROL
→ SETUP → SP-INPUT → extern)
13)
The signal type is displayed which is selected in the INPUT menu
14) Only for signal type 4-20 mA (P.CONTROL → SETUP → PV-INPUT → 4-20 mA)
15) Only for circuit with Pt 100 (P.CONTROL → SETUP → PV-INPUT → PT 100)
