Installation
Type 8792, 8793
english
Anti-twist safeguard:
Note the flat side of the shaft!
One of the setscrews must be situated on the flat side of the shaft as an anti-twist safeguard
(see “Figure 18”).
Rotation range of the position sensor:
The maximum rotation range of the position sensor is 180°.
The shaft of the Type 8792/8793 may be moved within this range only.
90°
Ideal position
for the swing range
of the flattened shaft
(min. 30 ° / max. 180 °).
The swing movement of the
flattened shaft must be within the
position sensor rotation range of
180°.
Flattened shaft
180°
Maximum
swing range

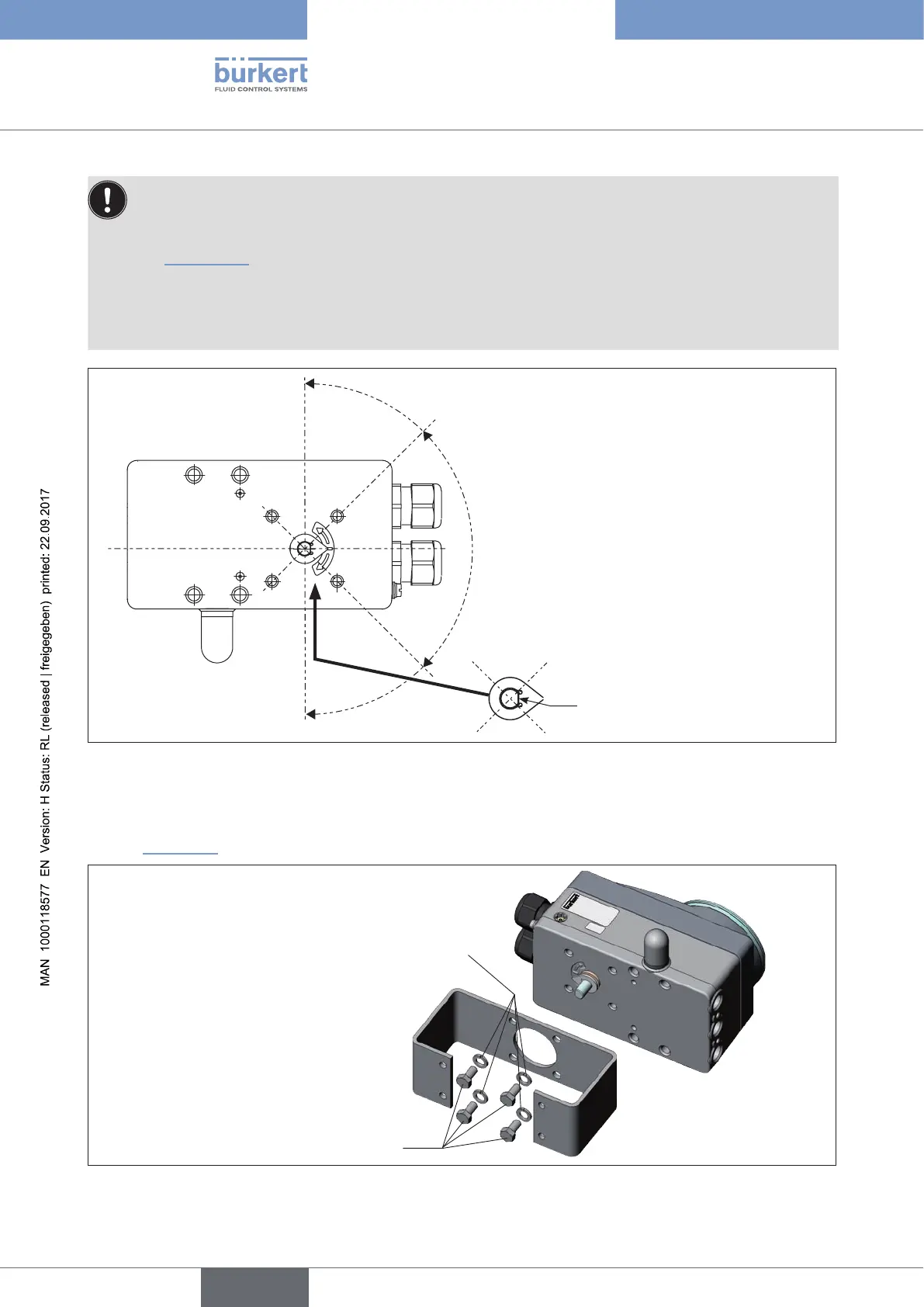

Figure 18: Rotation range / anti-twist safeguard
→ Assemble the multi-part assembly bridge* suitable for the actuator.
→ Attach the assembly bridge to the Type 8792/8793 using 4 cheese-head screws ③ and circlips ④
(see “Figure 19”).
③
④
* The assembly bridge consists of
4 parts which can be adjusted
to the actuator by varying the
arrangement.
Figure 19: Attach assembly bridge (schematic representation)
