000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 8.2.5
Setting up the baler

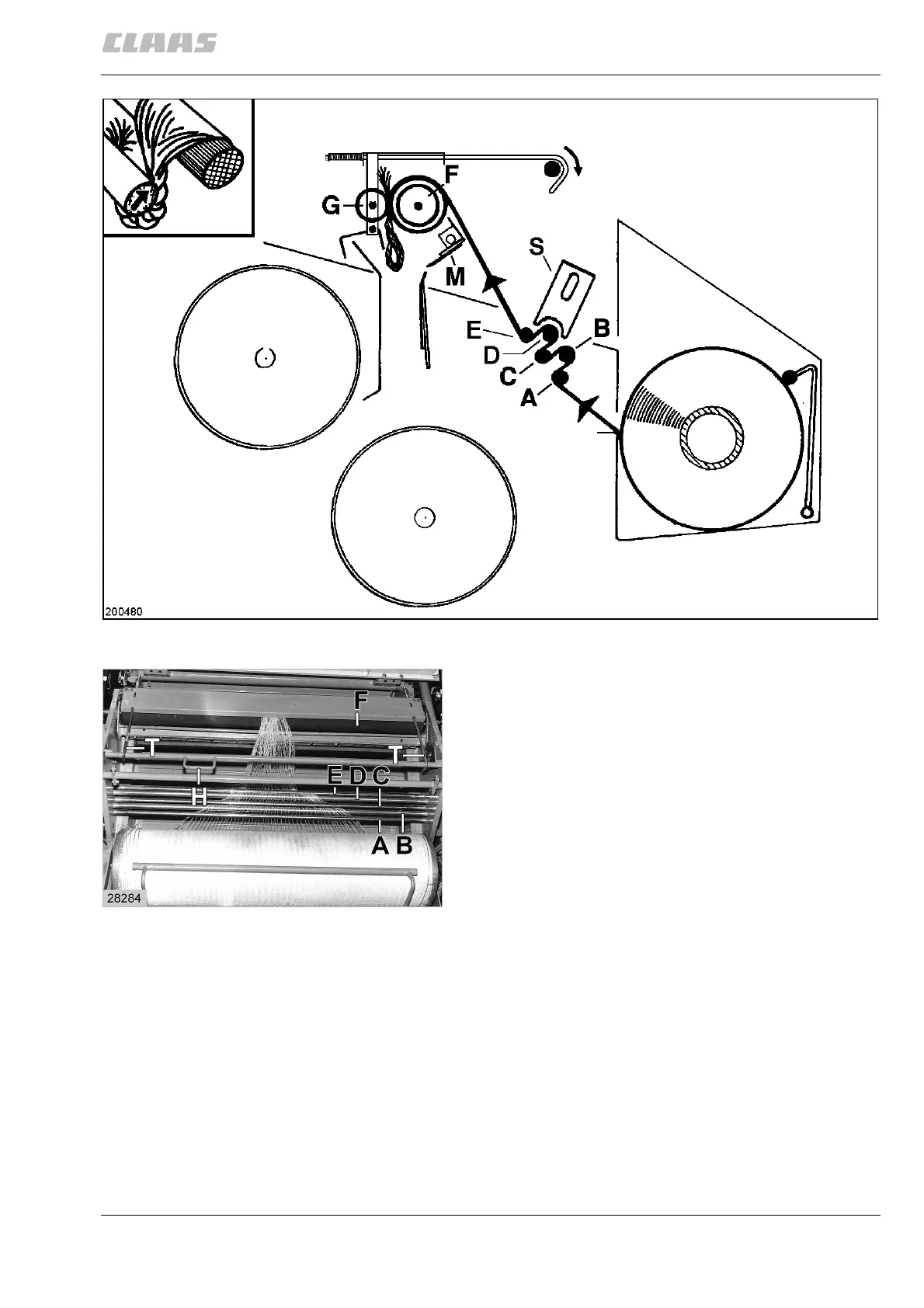

Net guide with two baffle plates:
Pull the net from the roll and guide it under shaft (A),
over shaft (B), under shaft (C), over shaft (D), and
under shaft (E).
If the net is difficult to draw in or is even torn off limit
shaft (D) more with stop (S).
Form the net into a braid and feed it between the
rubber roller (F) and the pressure roller (G). Allow the
net to jut outwards by about 20 cm (7.9 inch).
Replace the pressure roller tension rods (T) and
retighten the pressure roller with the lever (H).
(Fig. 7, 8)
7
8
