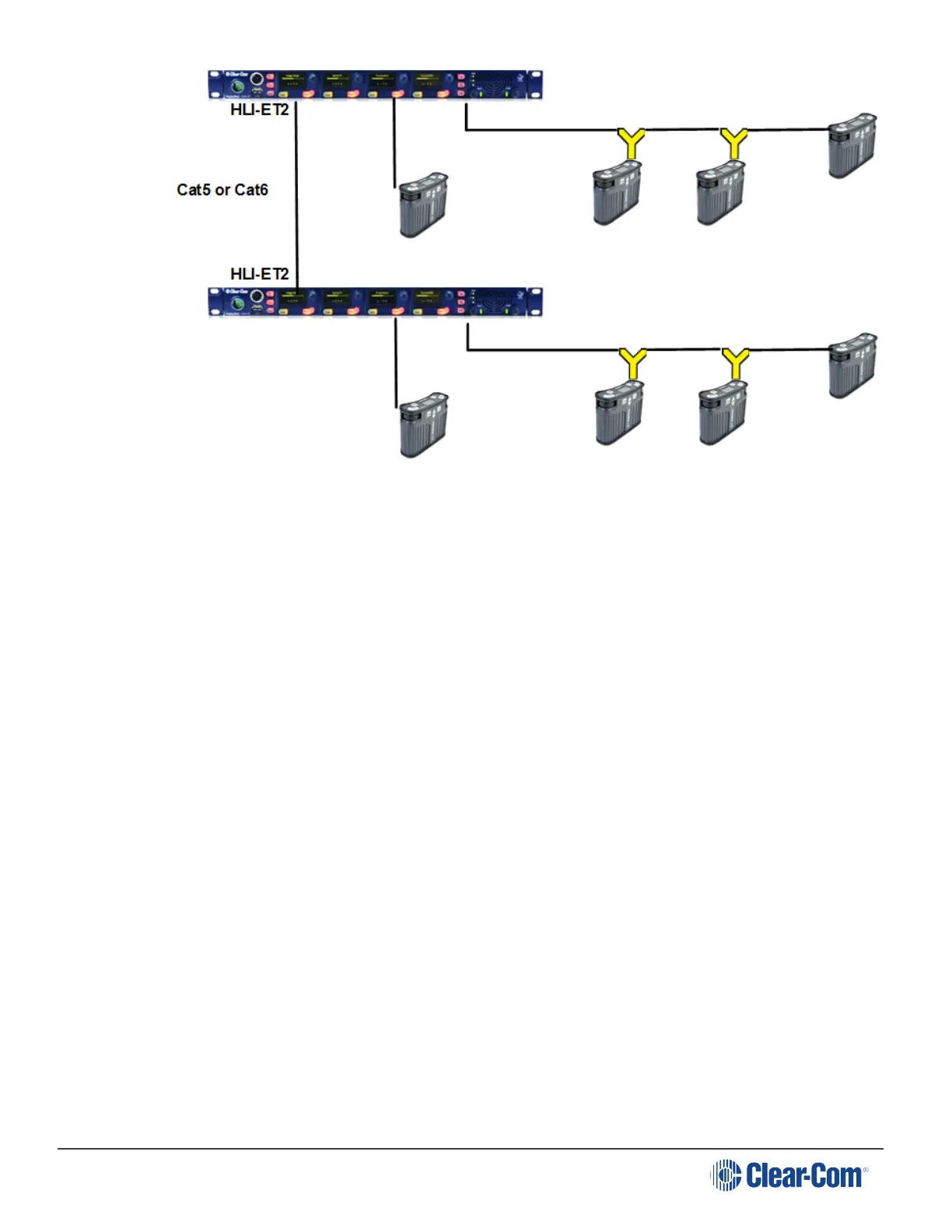

17.1.2 Linking Two Main Stations with Fiber
1. Insert an HLI-FBS Fiber interface module in each station. Use any of the three slots available.
Note: Ensure that the Main Station is powered down before inserting modules.
2. Ensure that an SFP Transceiver is connected into one HLI-FBS module port on each station.
3. Connect Two Fibers from one HLI-FBS port on one station to one HLI-FBS port on the other
station. If using Duplex LC/SC connectors, make sure that Tx on one goes to Rx on the other.
4. Power up both stations. Verify that the green LED on each HLI- FBS port is flashing.
5. On one HMS go to Networking->Linking->Link Mode menu and select Master.
6. On the other HMS go to Networking->Linking->Link Mode and select Member. Then in
Networking->Link to Master select the Master HMS you identified in the previous step.
