Configuration examples

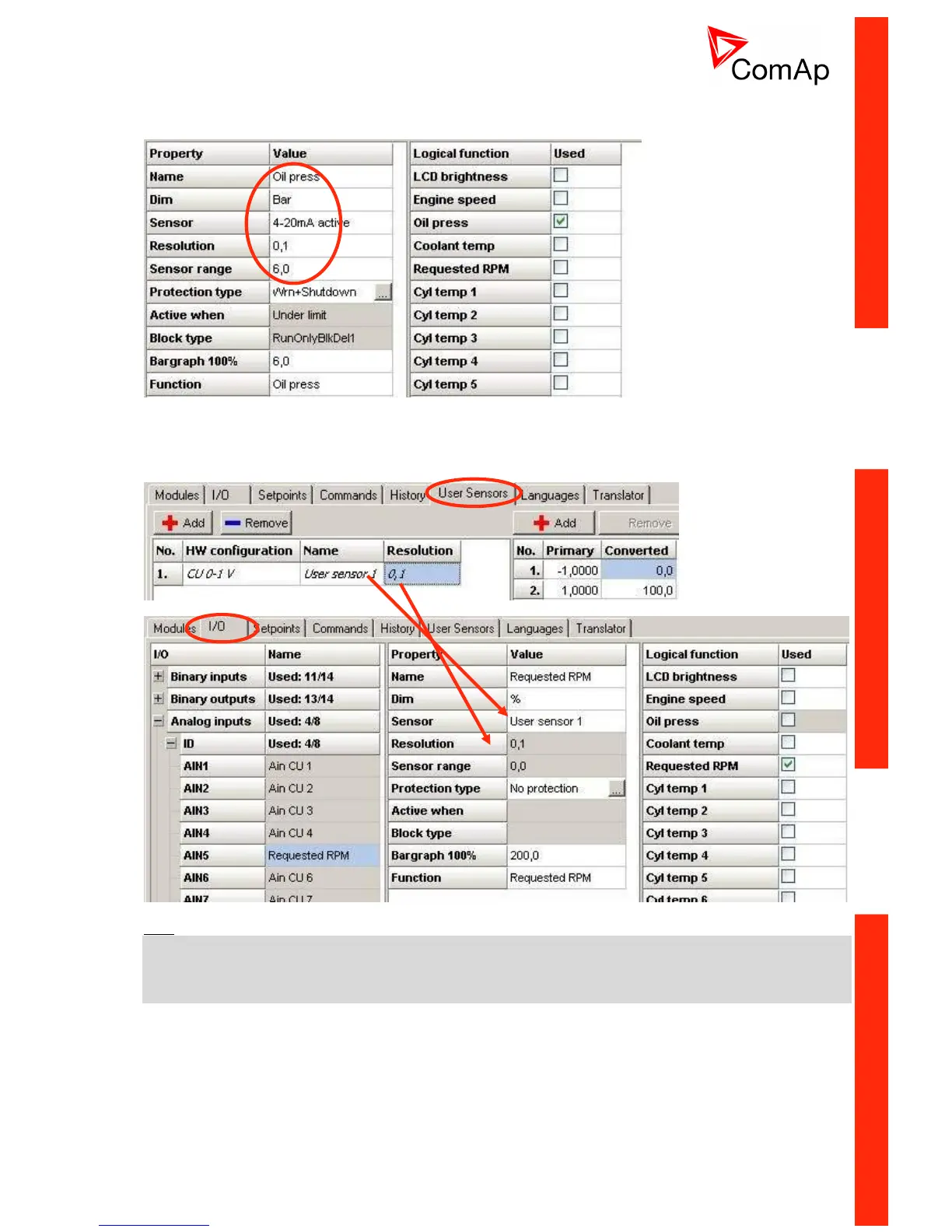

Conversion from 4-20mA to 6,0 Bar Oil pressure sensor (Wrn+Sd protection and Oil press function)
Conversion from ± 1V input to engine speed request 0 to 100%
Step 1. Create new User sensor
Hint:
HW configuration: CU 0-1V can be used for characteristics ± 1V, but this ± characteristics can be configured
to AI5 to AI8 inputs only!
Sensor range (gray background) automatically follows the User sensor characteristics (zero value in drawing
above is not important).
