1.2 V3 BDA MAIN FEATURES

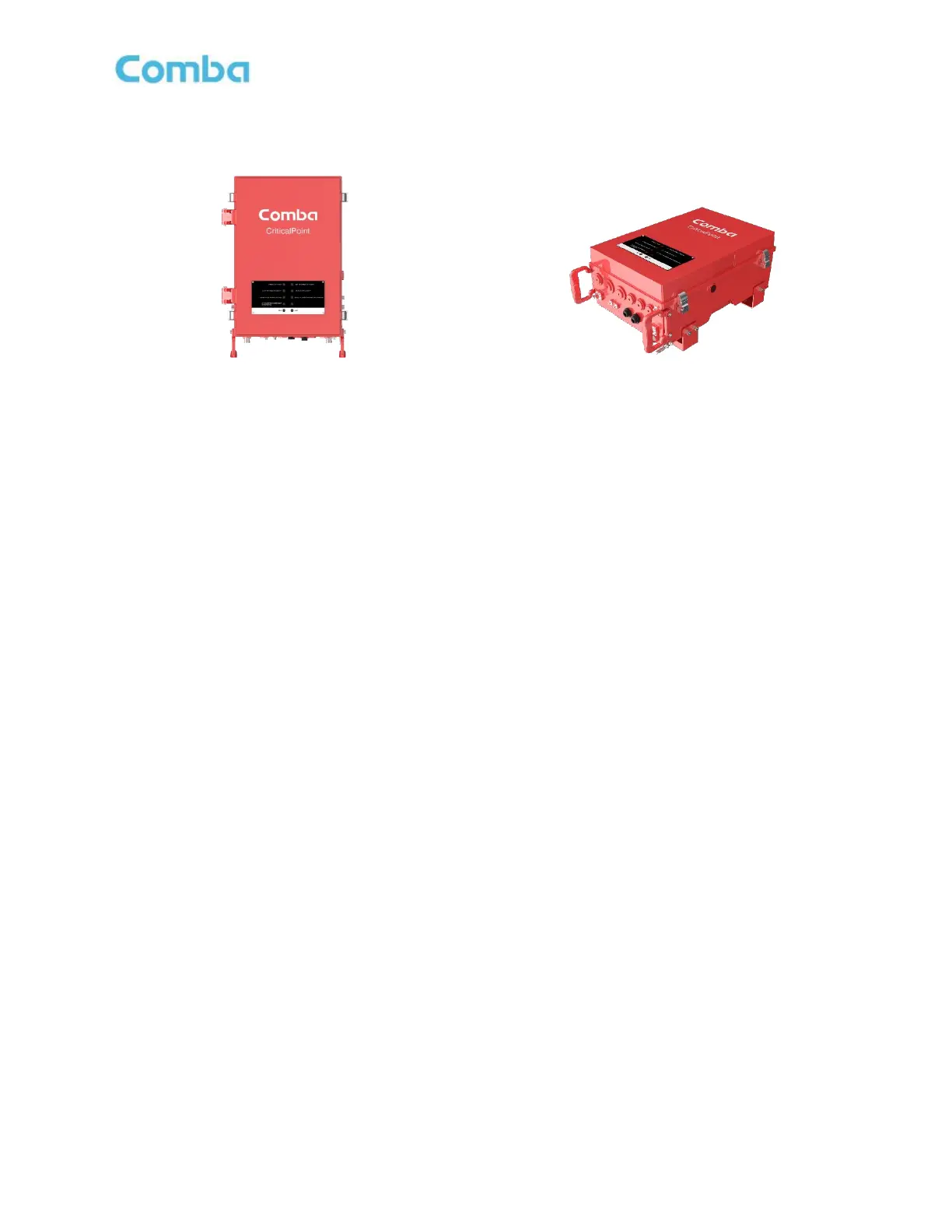

Figure 3: V3 BDA – Front View Figure 4: V3 BDA – Isometric View
• Dual-band configuration supports 700MHz and 800MHz public safety bands.
• Supports P25 P1/P2, digital and conventional analog communications simultaneously.
• License based switching between Class A or Class B, Single Band or Dual Band, 0.5W or 2W
configurations.
• Built-in cavity filtering to protect the unit from interference from FirstNet Band 14 and other neighbor
bands.
• Up to 64 channels per band on single band models; up to 96 channels shared
across bands on dual band models (maximum of 64 on individual band) (Class A).
• Up to 3 sub-band filters per band on single and dual band models (Class B).
• Channelized (Class A) with Downlink and Uplink AGC per channel and wideband ALC.
• Downlink and Uplink squelch per channel supported.
• NetProtect
TM
Uplink PA shutdown during no traffic periods to minimize noise being introduced to the
network.
• Built-in mandatory isolation test to prevent BDA oscillation.
• Oscillation Detection with Auto-Gain Correction and Automatic PA Shutdown.
• Expandable to 700/800MHz V3/NG fiber system.
• Web based GUI for intelligent configuration, SNMP v2c/v3 supported.
• Integrated Battery Charger Unit, Comba BBU V2 and BBU V3 supported.
• NFPA / IFC / UL 2524 compliant with dry contact alarms and built-in visual / audio annunciator.
• Additional external Comba Annunciator Panel supported.
• OSHPD Special Seismic Certification Preapproval (OSP) listed
