filtering and frequency conversion. Once the UL signals have been digitally processed, they are fed to the RF-
to-Optical converter to be converted to an optical signal and are transmitted towards the FOU on the MAIN
Fiber port.
1.20 V3 BDA/MU AND RU CABINET DIMENSIONS
330[13.0]
490[19.3]
553[21.8]
199[7.8]
248.5[9.8]

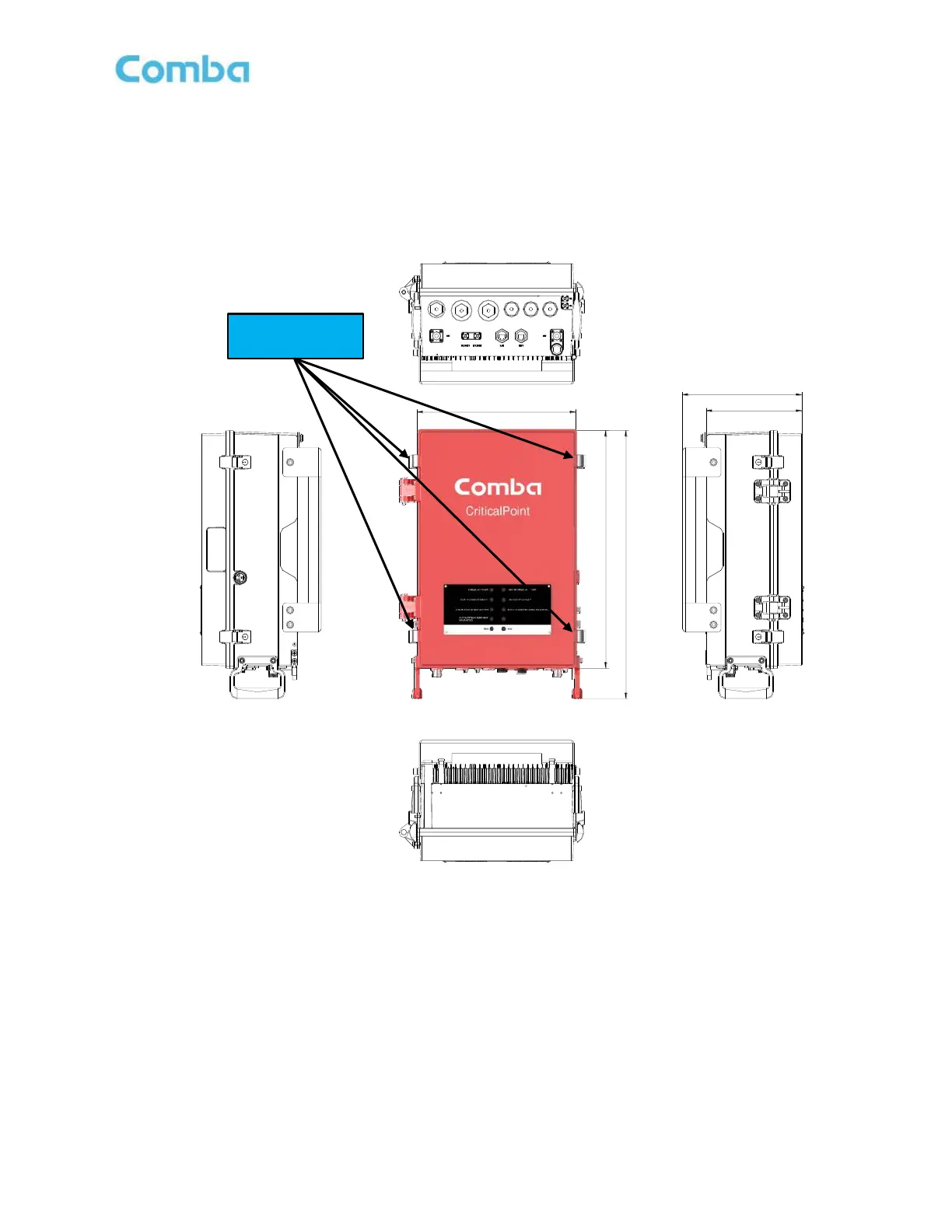

Figure 13: V3 BDA/MU Cabinet Dimensions – Front, Side and Bottom View
Note: The BDA/MU and the RU use the same cabinet. Internal components and some ports will differ,
but the core chassis is identical.
4 x Door Latches
(Require Key)
To Next Page
