1.30 V2 FOU CABINET CONNECTIONS

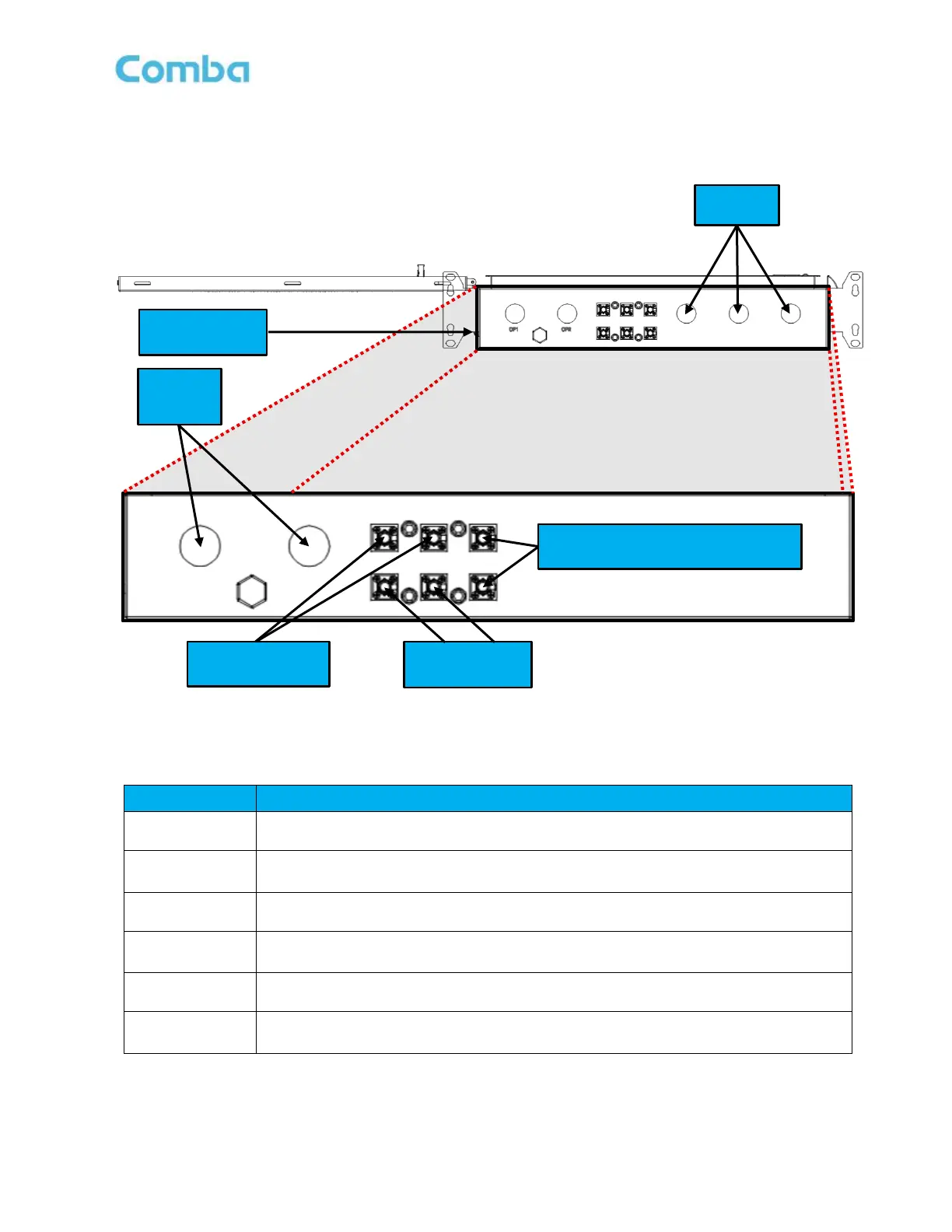

Figure 23: V2 FOU Cabinet Connections
Table 4: V2 FOU Cabinet Connections
Identifier
Descriptions
Knock Outs
(3) 1/2’’: For DC Power, Cat5/RJ45 cable for RS485 Comms, and/or alternate fiber ports
Optical Knock
Outs
Optical Knock Out 1: Comes from factory with fiber cable gland installed. Used for fibers 1-4.
Optical Knock Out 2: Additional knock Out for fibers 5-8
UL 1/DL 1
SMA-Female connectors to interface to BDA/MU 1
UL 2/DL 2
SMA-Female connectors to interface to BDA/MU 2 (Redundancy Feature not currently
available)
UL E/DL E
SMA-Female connectors to interface to additional FOUs for system expansion
Ground
Connection
Two-Post Ground for connection to protective earth ground.
Note: All Knockouts can be used with direct connection to conduit, but liquid tight conduit fittings must be
installed to maintain the UL50E Type 4 waterproof rating.
OP1
OP2
UL1
UL2
DL2
DL1
DL_E
UL_E
Optical
Knockouts
1 and 2
Conduit
Knockouts
UL OUT 1 & DL IN 1
to BDA/MU1
UL IN & DL OUT
to FOU Expansion
UL OUT 2 & DL IN 2 to BDA/MU2
Two-Post Ground
on left side
