1.23 V3 RU CABINET CONNECTIONS

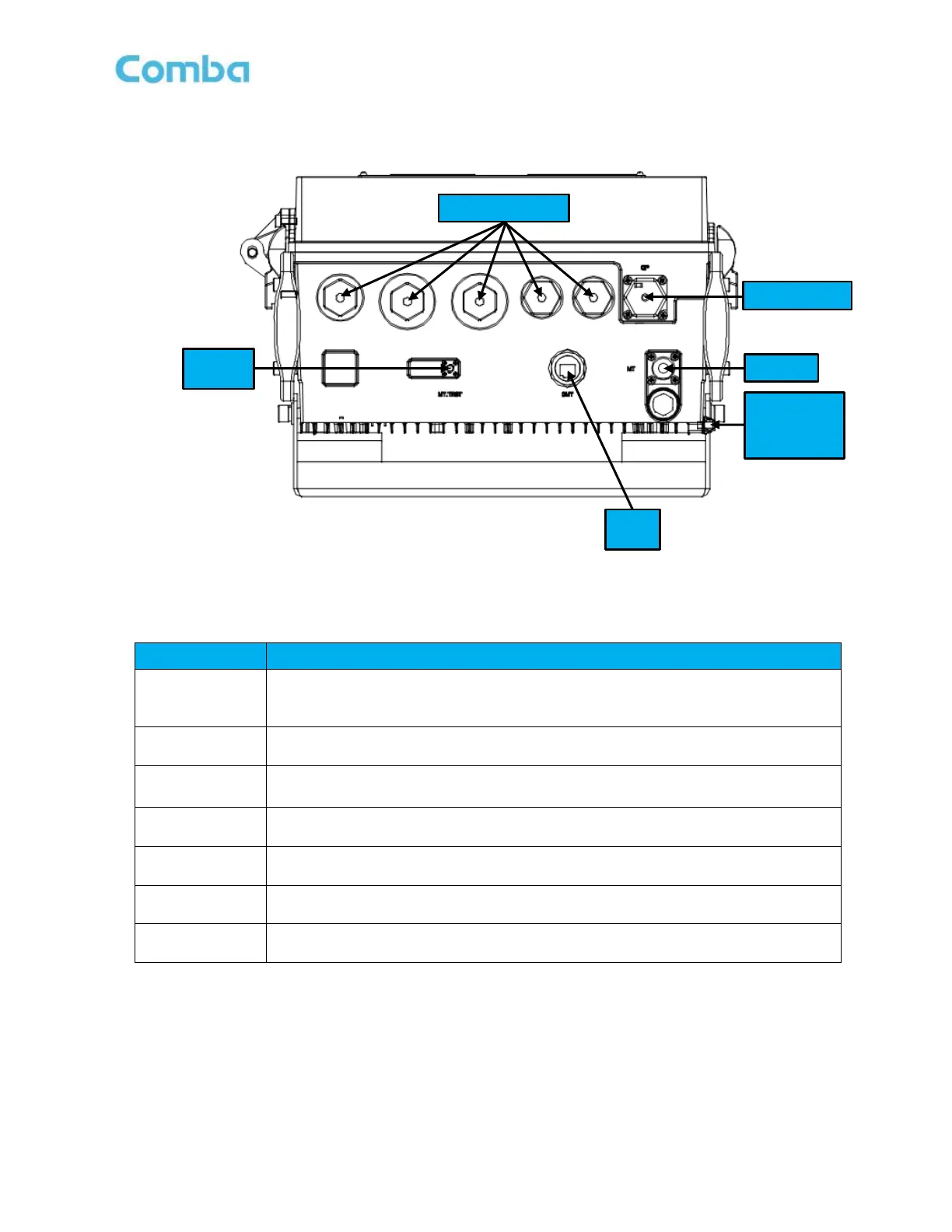

Figure 16: V3 RU Cabinet Connections
Table 2: V3 RU Cabinet Connections
Identifier
Descriptions
Knock Outs
(1) 3/4’’: For Hybrid cable (includes AC cable, DC Cable, and monitor cable from BBU)
(2) 1’’: For Hybrid Cable or Alarm Cables
(2) 1/2’’: For Dry contact or External alarm cables
Optical Port
Optical Fiber Port Connector
MT Test
SMA-Female connector for MT port test, -28dB coupling to MT port, available for both
downlink and uplink test.
DT
N-Female connector for connection to the donor antenna feedline.
MT
N-Female connector for connection to service antenna feedline.
OMT
RJ45 Connector for local WEB GUI connection.
Ground Lug
Two-Post Ground Lug for connection to protective earth ground.
Note: All Knockouts can be used with direct connection to conduit, but liquid tight conduit fittings must be
installed to maintain the UL50E Type 4 waterproof rating.
Conduit Knockouts
Optical Port
MT Port
MT Test
Port
OMT
Port
Two-Post
Ground Lug
on Right Side
