1.31 V2 FOU INTERNAL LAYOUT

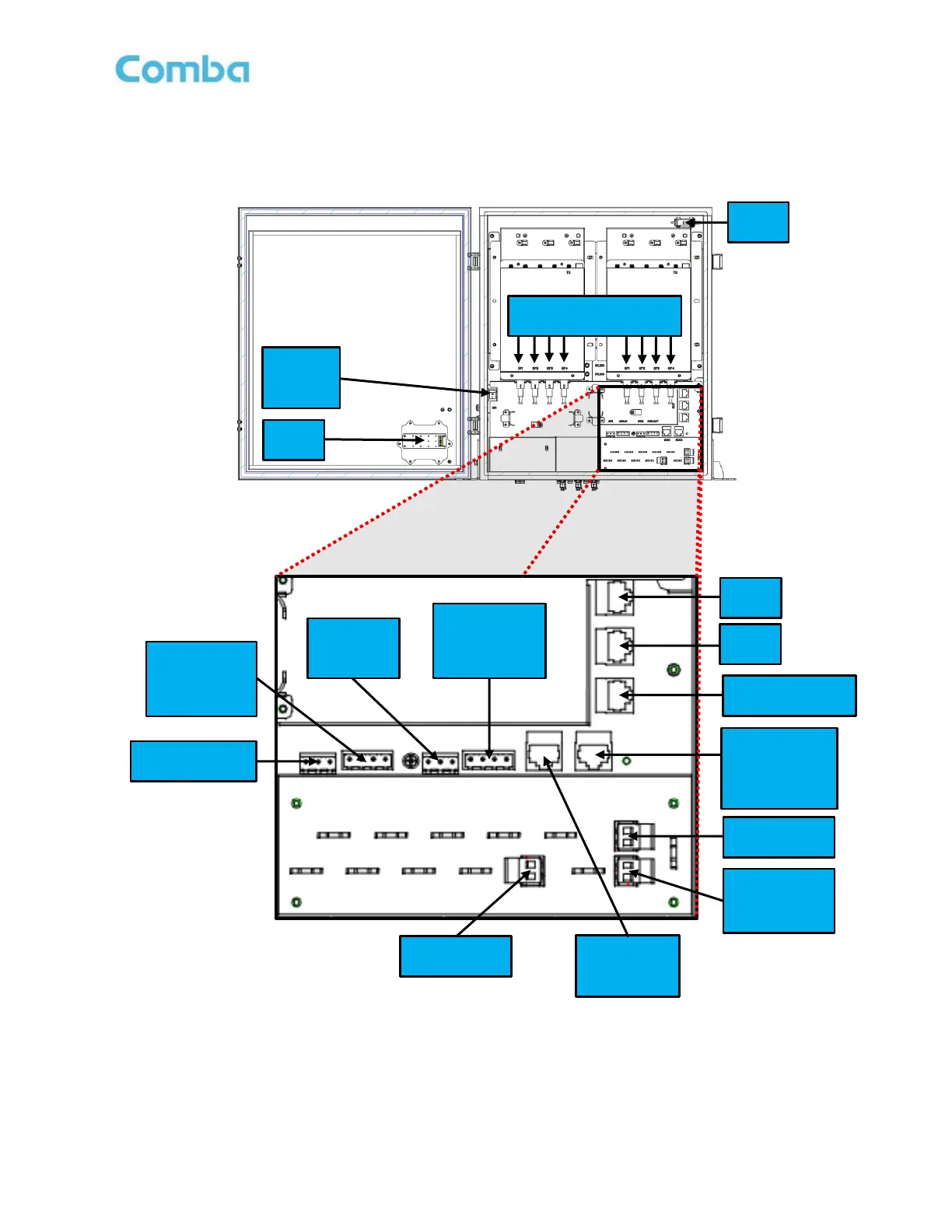

Figure 24: V2 FOU Internal Layout
Note: Further descriptions of these connections are provided in the installation, commissioning, and alarms
sections of this manual.
Fiber Ports 1 - 8
Status
LEDs
Power
ON/OFF
Switch
SW1 ADD.IN SW2 ADD.OUT
AUX1 AUX2
OUT IN2
FOU Expansion
Address Cable
from Previous
FOU
IN1
+
-
+
-
+
-
AUX3
OMT
Redundancy
Switch 1 (Future)
Redundancy
Switch 2
(Future)
OMT
Port
RS485 from Next
FOU Over Ethernet
Not
Used
RS485 Comms
to BDA/MU 2
Over Ethernet
(Future)
48VDC IN from
BDA/MU1
48VDC IN from
BDA/MU2
(Future)
FOU Expansion
Address Cable
to Next FOU
48VDC OUT to
Next FOU
Door
Switch
RS485 Comms
to BDA/MU 1
Over Ethernet
AUX4
