2.19 V2 FOU 19IN RACK MOUNTING
The FOU can also be mounted into a 19in rack. There are two separate ways to mount it in a 19in rack. The
FOU can be mounted vertically with the door and status LEDs facing outward. This is the recommended rack
mount method to allow door clearance and accessibility. However, the device will occupy more rack space.
Alternatively, the FOU can be mounted horizontally in a 19in rack. In this configuration, the RF Ports and
Knockouts are facing outward. However, the status LEDs and the door are facing upwards, which is not ideal.
This configuration occupies less rack space but provides less accessibility.
For the above-described cases, you must adjust the FOU mounting brackets as shown in Figure 52 below.
Once the mounting brackets are adjusted correctly, you can secure the device to the 19in rack using 4 x rack
screws (not provided).

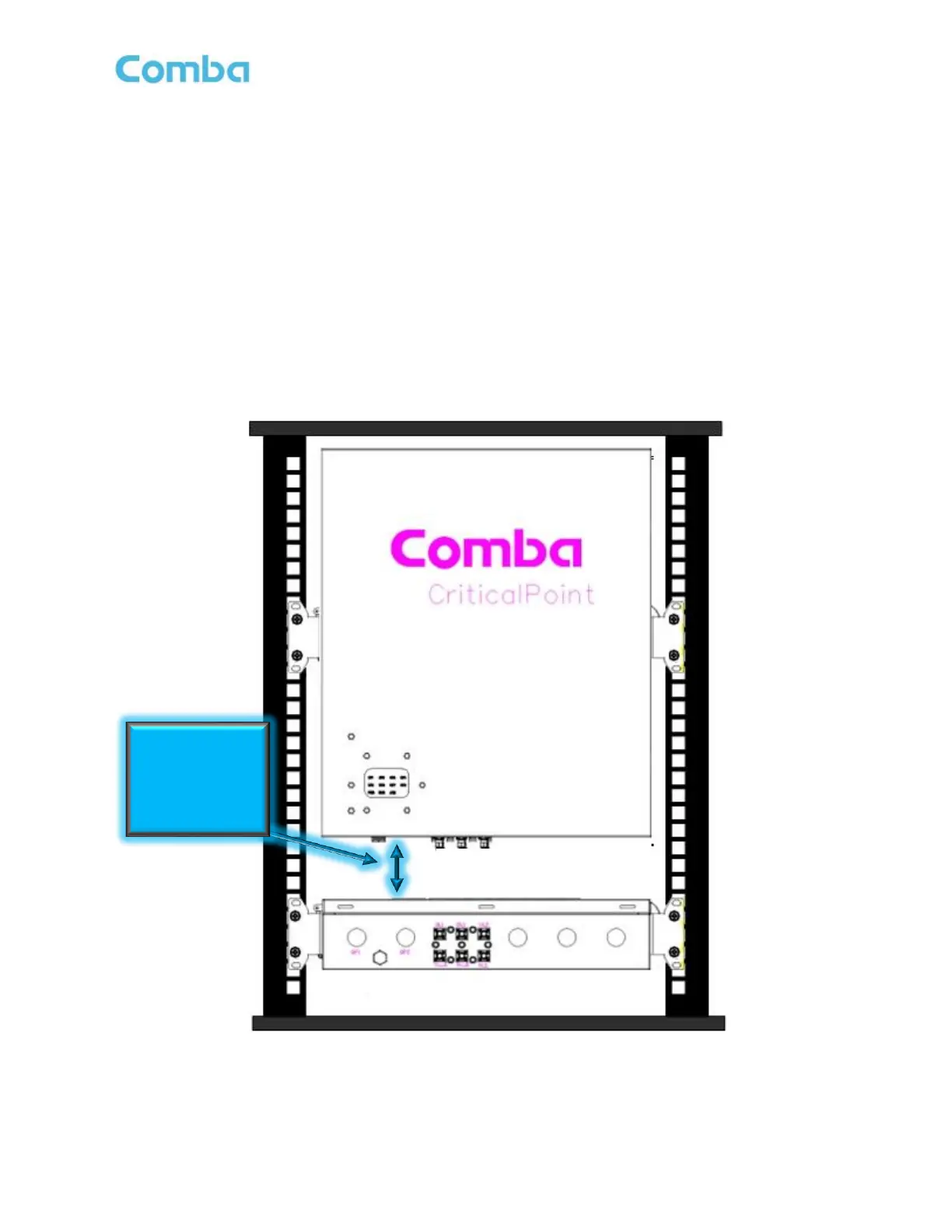

Figure 52: V2 FOU 19in Rack Mounting
A minimum of 10RU
clearance space
required to open
door when
horizontally
