2.7 V3 BDA/MU/RU MOUNTING BRACKET PREPARATION
• The BDA/MU and RU devices come from the factory with the wall mounting bracket attached to the
cabinet. Prior to installation, remove the mounting bracket from the cabinet by removing the M8x25
bolts.

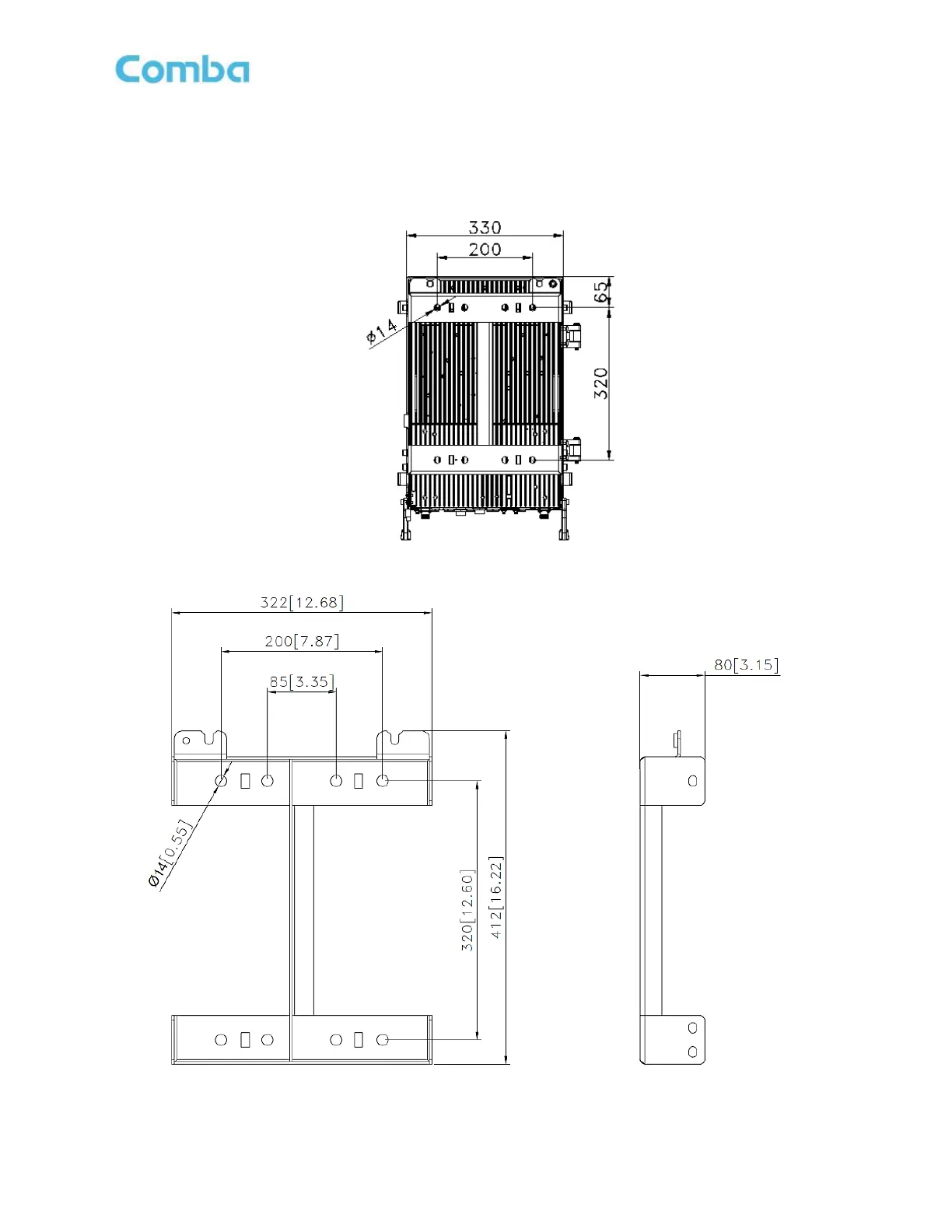

Figure 25: V3 BDA/MU RU Mounting Bracket Overview
