1.28 V3 BBU INTERNAL LAYOUT

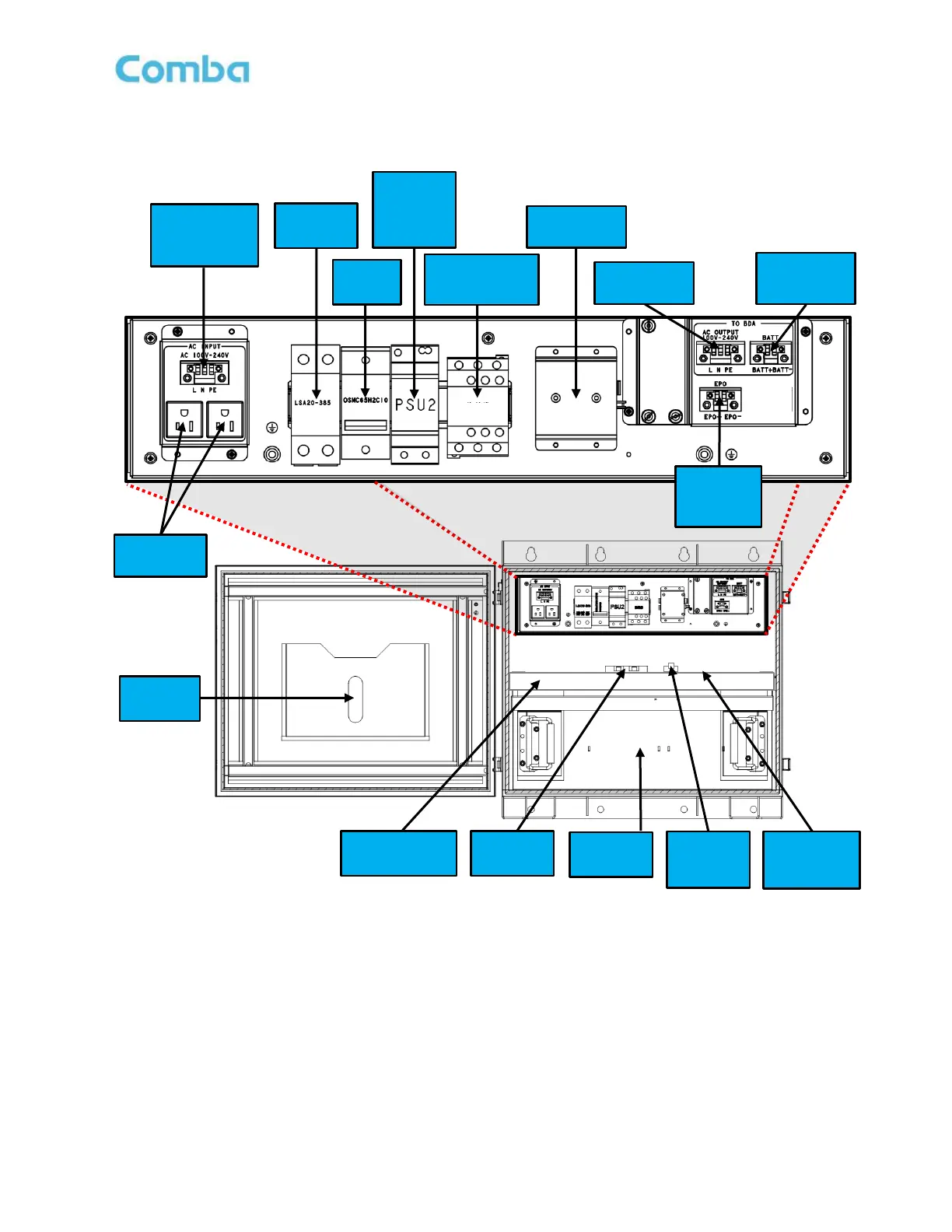

Figure 21: V3 BBU Internal Component Layout
Note: Further descriptions of these connections are provided in the installation, commissioning, and alarms
sections of this manual.
Main AC Input
from Dedicated
Branch Circuit
Document
Holder
LiFePO
4
Battery
RS485
Comms
Terminals
Battery
Terminals
AC Surge
Protector
AC
Breaker
AC/DC
Converter
for EPO
Keep Alive
EPO
Contactor/Relay
Convenience
DIN Rail
AC OUT to
BDA/MU/RU
Battery to
BDA/MU/RU
EPO
Switch
Terminal
Convenience
AC Outlets
Battery Retainer
Bracket
Battery
Reset Button
(top)
