CRITICALPOINT 700/800MHZ BDA/DAS/BBU V3 USER MANUAL

568 Gibraltar Drive, Milpitas, CA 95035 | +1 408 526 0180

Rev. 1-0-2 Rev. Date: 11-1-2024

Page: 41

1.21 V3 BDA/MU AND RU MOUNTING BRACKET DIMENSIONS

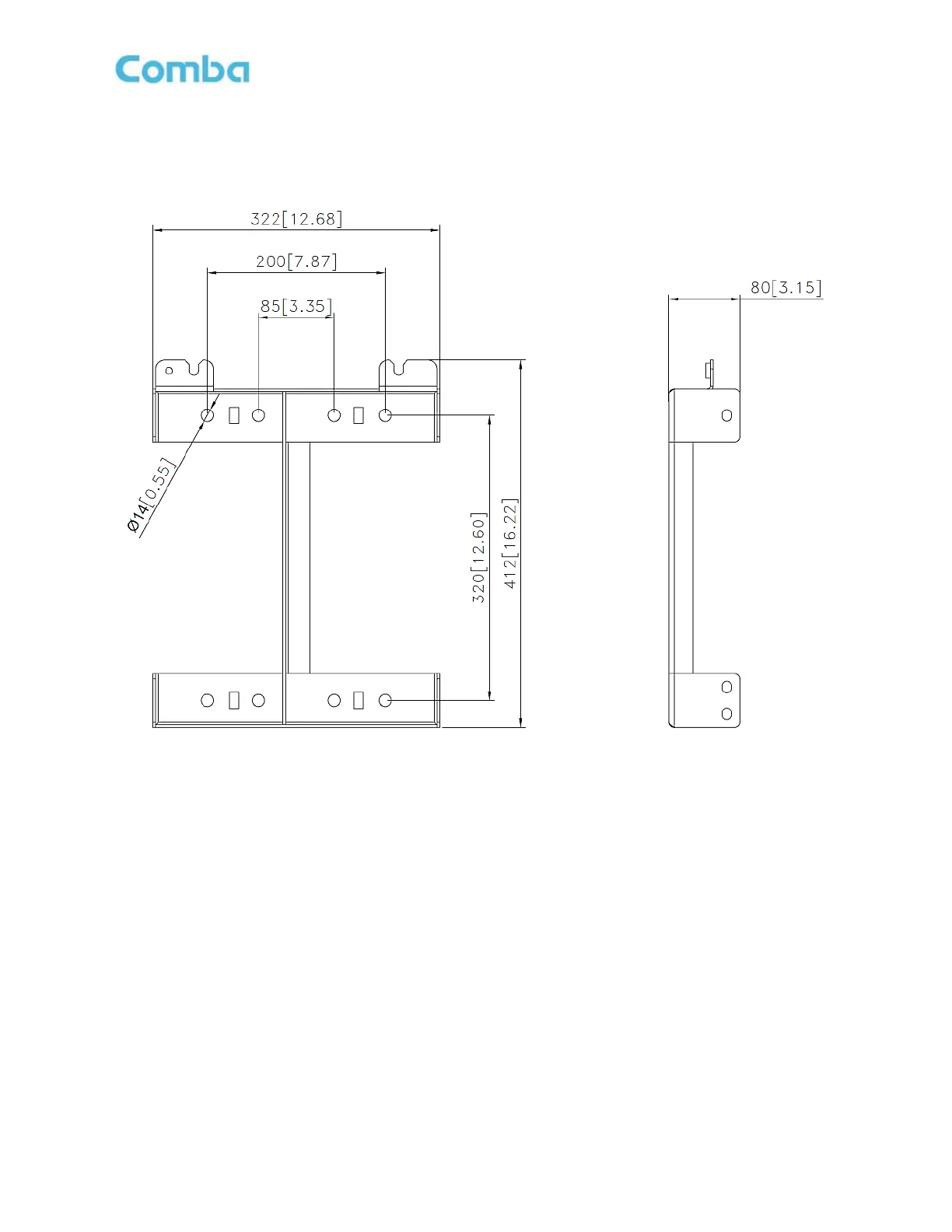

Figure 14: V3 BDA/MU/RU Mounting Bracket Dimensions
