1.27 V3 BBU CABINET CONNECTIONS

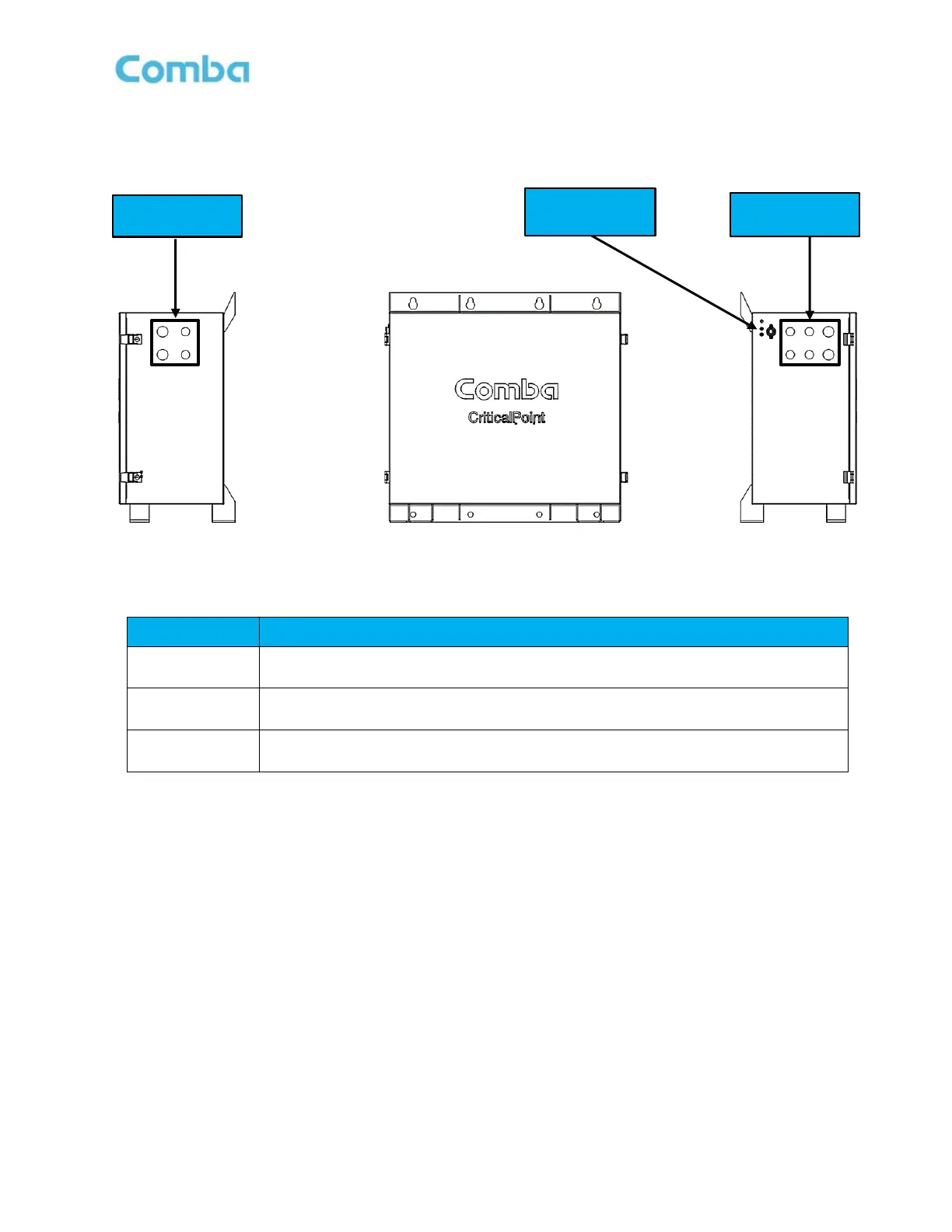

Figure 20: V3 BBU Cabinet Connections
Table 3: V3 BBU Cabinet Connections
Identifier
Descriptions
Knock Outs
(Left Side)
(2) 3/4’’: For Hybrid cable (includes AC cable, DC Cable, and monitor cable from BBU)
(4) 1/2’’: For AC or DC Power Connections
Knock Outs
(Right Side)
(2) 3/4’’: For Hybrid cable (includes AC cable, DC Cable, and monitor cable from BBU)
(2) 1/2’’: For AC or DC Power Connections
Ground
Connection
Two-Post Ground for connection to protective earth ground.
Note: All Knockouts can be used with direct connection to conduit, but liquid tight conduit fittings must be
installed to maintain the UL50E Type 4 waterproof rating.
Conduit Knockouts
(Right Side)
Conduit Knockouts
(Left Side)
Two-Post Ground
Connection
