2.17 V3 BDA/MU/RU ANNUNCIATOR FRONT PLATE INSTALLATION
The V3 BDA/MU and V3 RU come from the factory with 5 different front plate options for the built-in alarm
annunciator panel on the front of the device. This allows the user to choose the front panel plate that
matches the authority’s code requirements. The NFPA1221 2019 Alarm plate installed from the factory.
To replace the factory installed plate:
• Remove the 4 screws and washers holding the factory installed plate in place. This hardware will be
reused. Do not discard! See Figure 49 for screw locations.
• Position the desired plate such that all 4 cabinet screw holes are aligned with the holes in the new plate.
• Secure the plate using the 4 screws and washers.

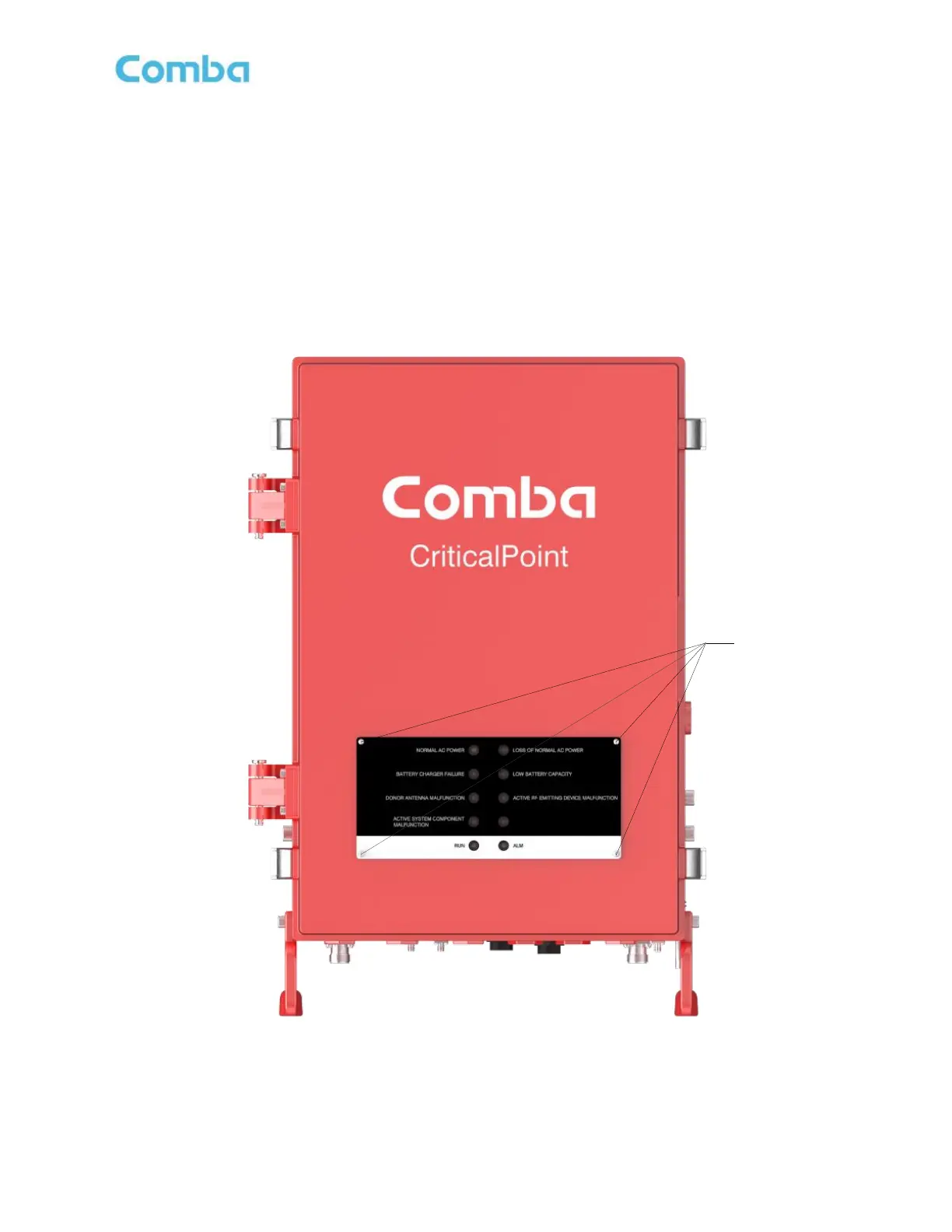

Figure 49: V3 BDA/MU/RU Annunciator Front Plate Installation
