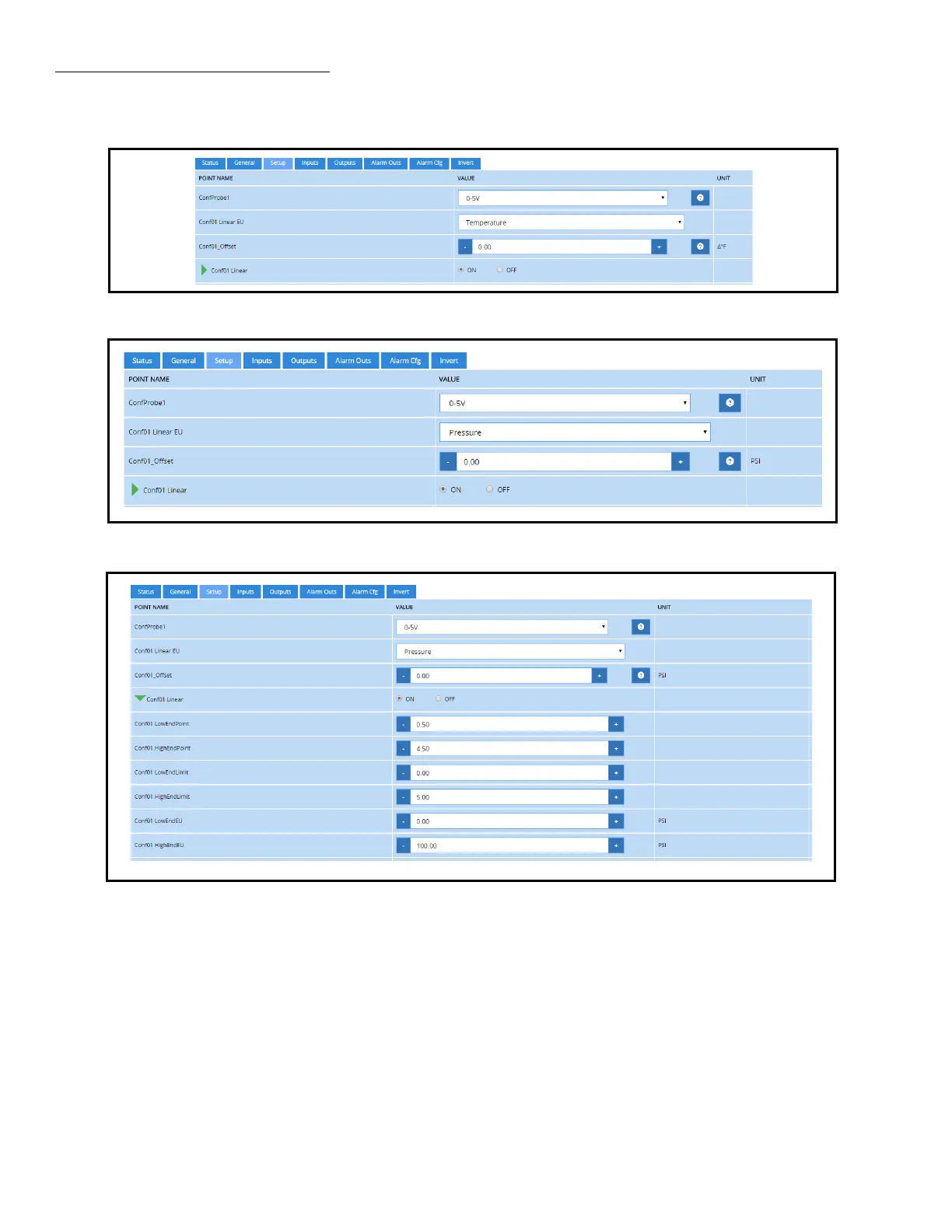

Setting up a Pressure Transducer
Note: This applies to both Onboard IO and IPX.
1. Configure ConfProbeX to 0 - 5V and Set ConfX Linear to On. Press Save.
2. Select Pressure for the ConfX Linear EU. Press Save.
3. Fill in the appropriate configuration values (Example, for a 100 psi Transducer)
