7.2.1.2 MultiFlex Combination
Input/Output Boards
There are several models of the MultiFlex board that combine
the functionalities of input boards, relay output boards, digital
output boards, and analog output boards. The MultiFlex
combination input/output boards are designed to be
replacements for the 8IO Combination Input/Output Board,
but the MultiFlex board provides several new hardware
options and software features.
The MultiFlex combination I/O boards consist of up to 16
combination digital/analog inputs, and a combination of relay
outputs, digital outputs, and analog outputs.
All boards feature both +5VDC and +12VDC output
voltage points for use in powering transducers or other input
devices that require power.

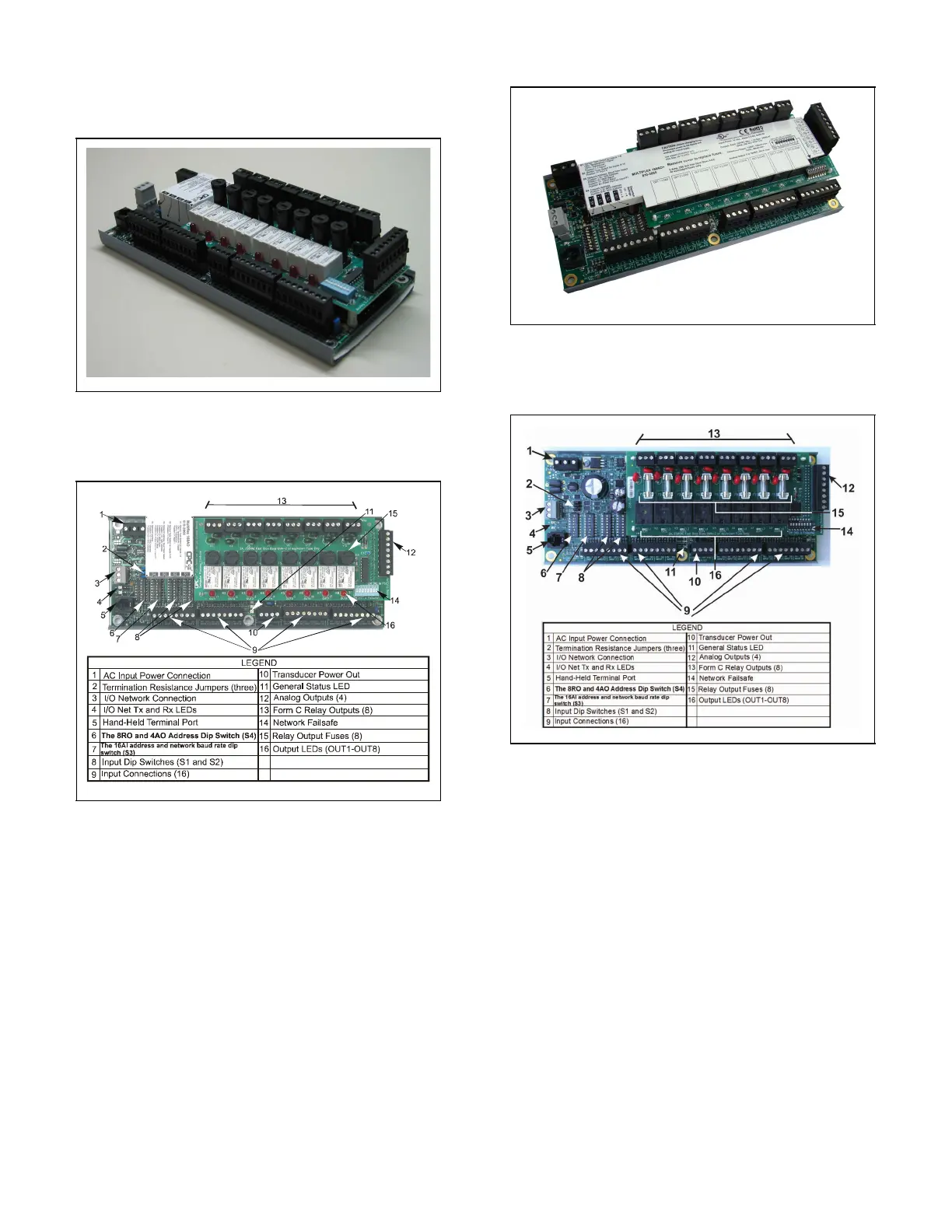

Figure 7-2 - Non-RoHS MultiFlex Combination Input/Output Board
(Side View)
Figure 7-3 - Non-RoHS MultiFlex Combination Input/Output Board
(Top View)
Figure 7-4 - RoHS MultiFlex Combination Input/Output Board (Side
View)
Figure 7-5 - RoHS MultiFlex Combination Input/Output Board (Top
View)
