3.11 Analog Inputs
• Supports 0-10VDC, 0-1 DC, 0-5VDC, 2-20mA, 4-20mA, NTC temperature and dry contact digital input.
• Supports engineering units for temperature, pressure, humidity, light level and generic percentage.
• When wiring transducers or amplifiers (for example, outdoor light level) the odd numbered terminal is the + or
signal and the even numbered terminal is the – or common.
• Provides (2) 12VDC (160mA) and (2) 5VDC (40mA) power supply terminals for humidity sensors, pressure transducers, and
more.

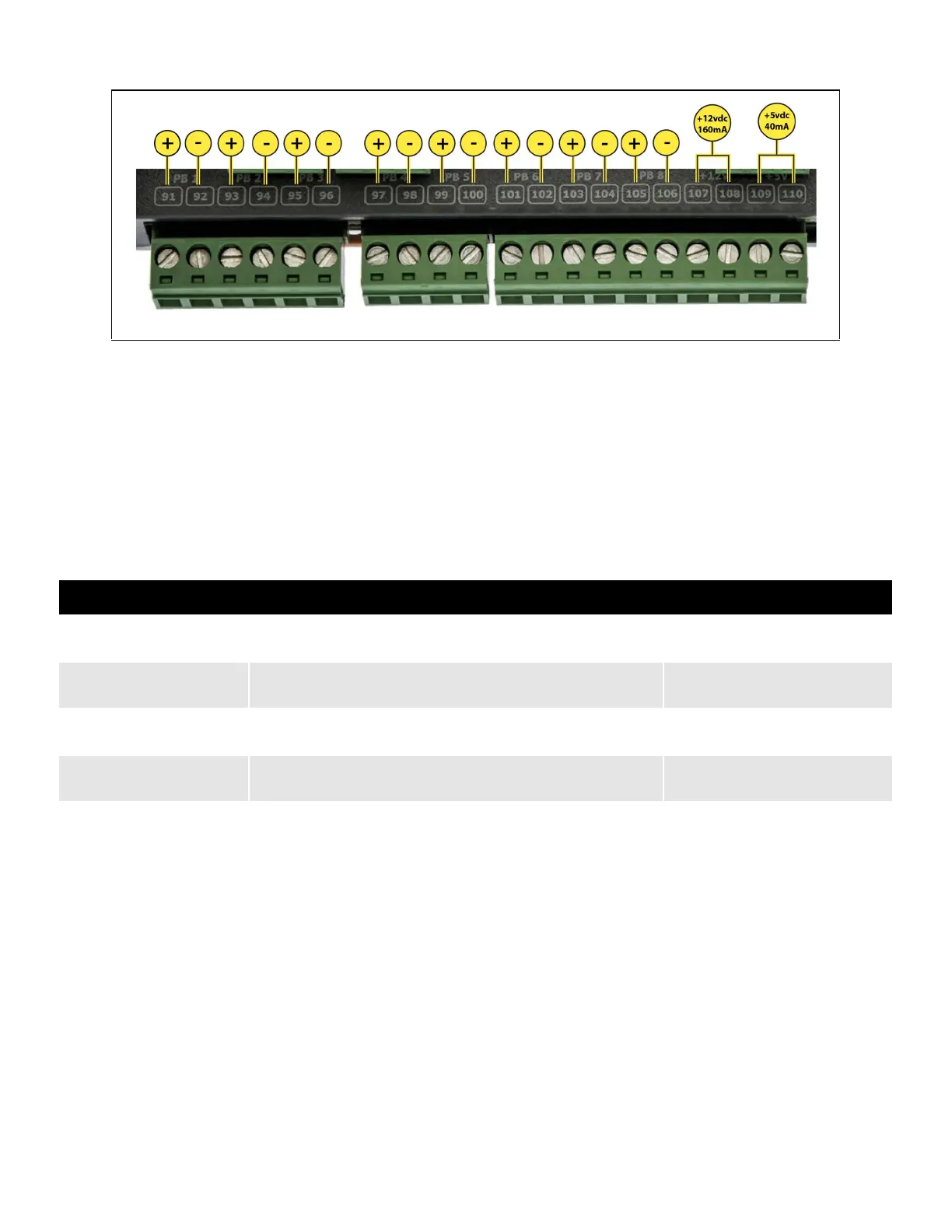

Figure 3-16 - Analog Inputs
Table 3-5 - UL Relay Ratings
Type Ratings Terminal
Relay 1 (N.O. & N.C.)
5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles
J5-2, J5-3, J5-4 (Base Board)
Relay 2 (N.O. & N.C.)
5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles
J5-1, J5-2, J6-6 (Base Board)
Relay 3 (N.O. & N.C.)
5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles
J6-1, J6-4, J6-5 (Base Board)
Relay 4 (N.O. & N.C.)
5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles
J6-1, J6-2, J6-3 (Base Board)
