8.3 21.5-Inch Touchscreen Display
The Site Supervisor 21.5-Inch Touchscreen Display (P/N
818-7242) is a remote user interface for the Site Supervisor
that connects to the controller using the Ethernet network
through the Ethernet port. The Site Supervisor UI allows
users to perform critical actions in the controller quickly.
Functions such as lighting overrides, controlling heating
and cooling stages, status information, and viewing alarms
can all be performed using the 21.5-Inch Display.
Site Supervisor 21.5-Inch Display Quick Start Guide
P/N 026-4055.

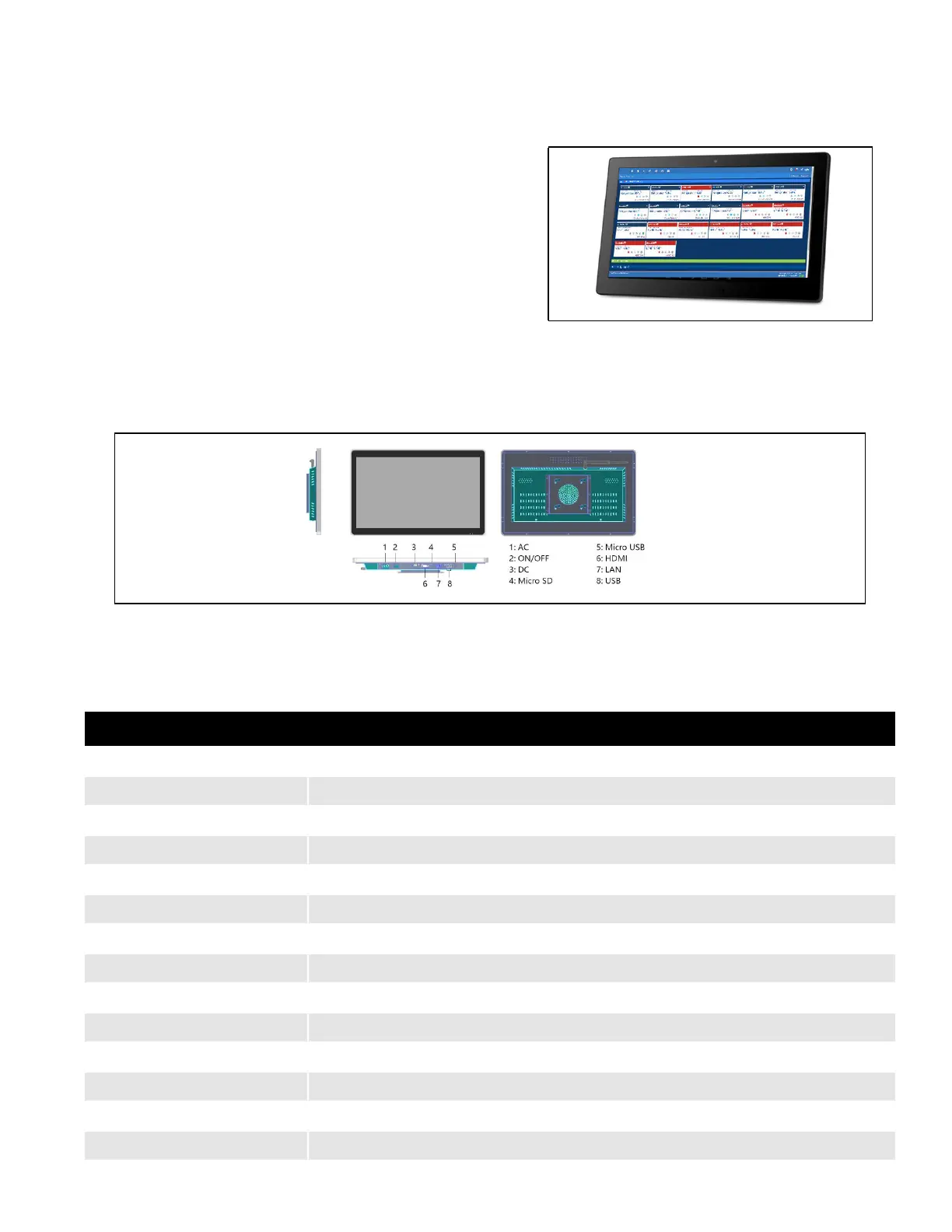

8.3.1 Display Connections
8.3.2 Specifications
Figure 8-11 - Supervisory Controller 21.5-Inch Display
Figure 8-12 - 21.5-Inch Display Connections
Table 8-3 - Product Specifications
21.5-Inch Touchscreen Display for Site Supervisor
Screen Size 21.5-Inch
Screen Type Capacitive Multi-Touch
Resolution 1920 x 1080
Material Metal Housing
Mounting Type 100mm x 100mm Wall Mounting
CPU Quad core RK3288, Android 6.0
RAM 2GB (optional 4GB)
Internal Memory 16GB (optional 32GB)
Network 10M/100M Ethernet Port
WIFI 802.11b/g/n
Bluetooth 4.0
Unit Size 24.7 x 16.4 x 2.5cm
Temp Rating 14°F to 131°F (-10°C to 55°C)
Power Supply 12V, 3A-5A
