8.2.4 Direct Connect to Site Supervisor
1. Connect the power supply to the 15.6-Inch Display.
2. Connect one end of the network cable to ETH1 of the Site Supervisor and the other to the Ethernet port of the 15.6-Inch
Display.
1. Once you have connected the network cable to the Site Supervisor and 15.6-Inch Display, press the menu icon and
then press the browser icon . You will now have access to the Site Supervisor through the Display.
Note: If the Site Supervisor has already been set up, you can skip steps 4-6 and log into your Site Supervisor. If this is the
initial setup of the Site Supervisor, continue following the steps to set up the Site Supervisor.
2. Once you have accessed the Site Supervisor via the 15.6-Inch Display, you will be prompted to log in.
The username will be “user” and the password will be “pass.”
Note: Look at the lower right of the screen to see the version of the Site Supervisor. If the version is 2.06 or above, you will be
prompted to change the password.
3. Once you have changed the password, you will be on the Localization menu in the Setup Wizard. Press the Next arrow key
at the top right of the screen.
4. This will take you to the General Setup Parameter where you will need to enter a Site Name. Once the Site Name has been
entered, you will be able to log into the Site Supervisor.

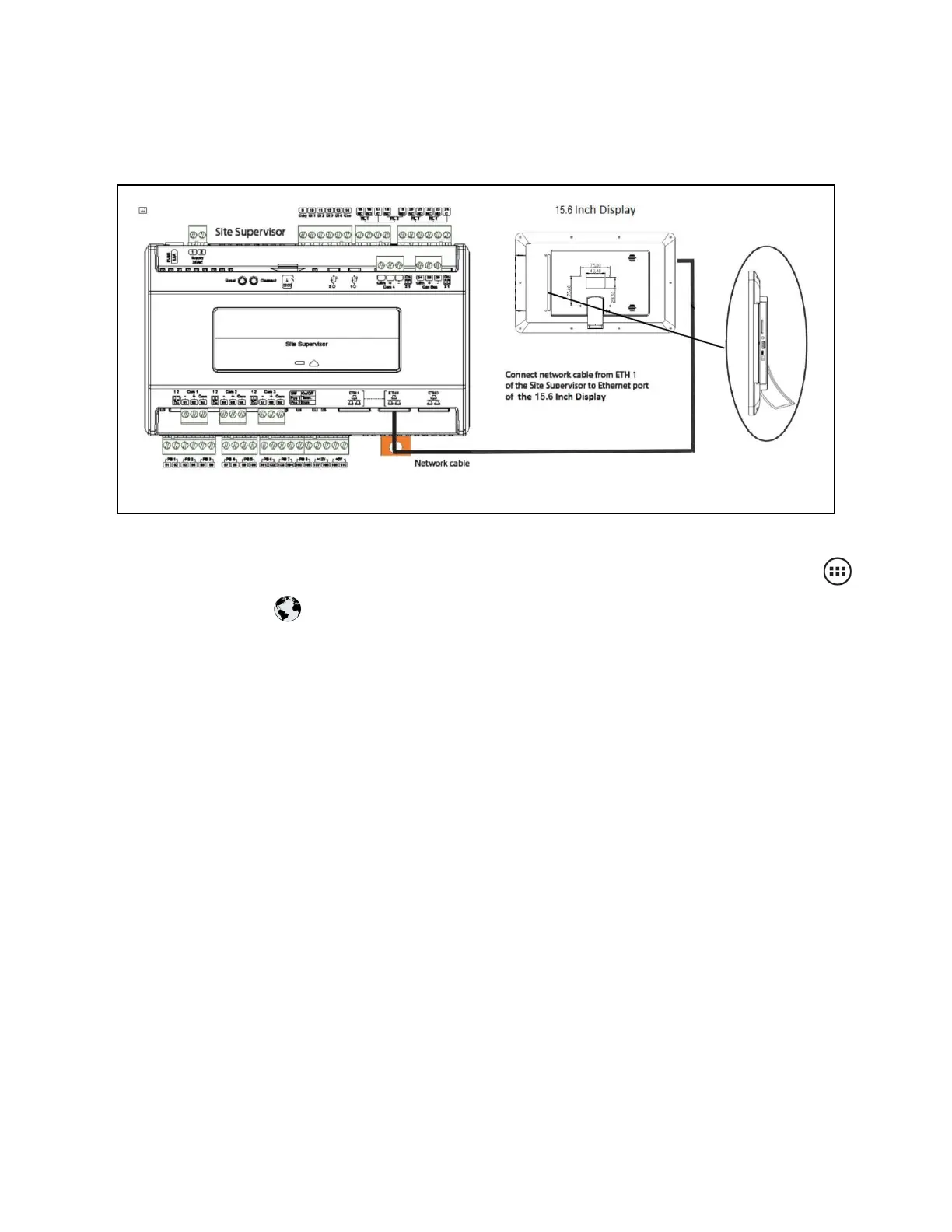

Figure 8-10 - Direct Connect 15.6-Inch Display to Site Supervisor
