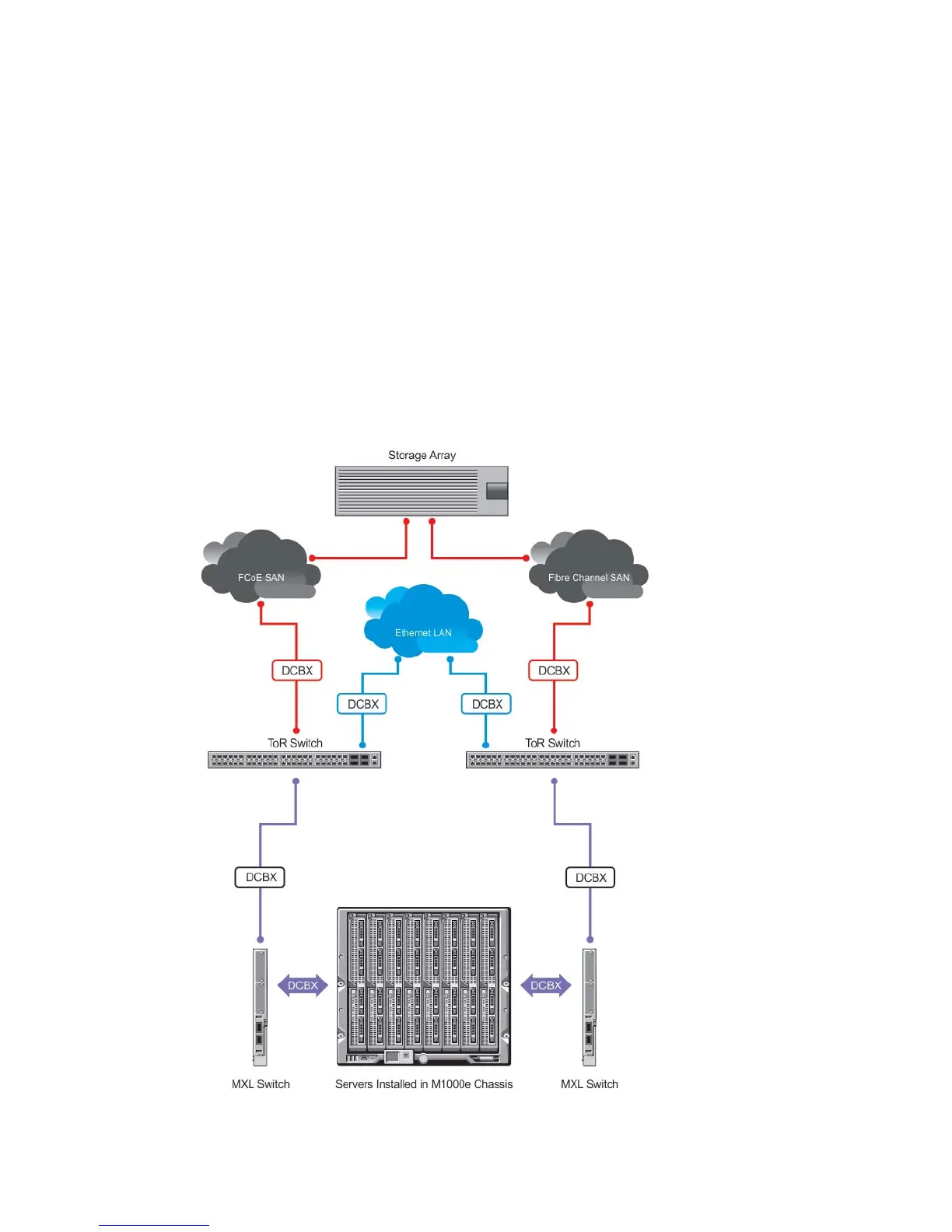

Data Center Bridging (DCB) | 153
PFC and ETS Configuration Examples
This section contains examples of how to configure and apply DCB input and output policies on an
interface.
Using PFC and ETS to Manage Data Center Traffic
In the example shown in Figure 8-17 for an MXL 10/40GbE Switch:
• Incoming SAN traffic is configured for priority-based flow control.
• Outbound LAN, IPC, and SAN traffic is mapped into three ETS priority groups and configured for
enhanced traffic selection (bandwidth allocation and scheduling).
• One lossless queue is used.
Figure 8-17. Example: PFC and ETS Applied to LAN, IPC, and SAN Priority Traffic
dot1p priority 3
dot1p priority
0, 1, 2, 4, 5
dot1p priority 0-7
Converged LAN, SAN, and IPC traffic
SAN
priority 3
IPC
priority 4
