Link Layer Discovery Protocol (LLDP) | 313
18
Link Layer Discovery Protocol (LLDP)
This chapter contains the following sections:
Overview
TIA-1057 (LLDP-MED) Overview
Configuring LLDP
Overview
Link layer discovery protocol (LLDP)—defined by IEEE 802.1AB—is a protocol that enables a local area
network (LAN) device to advertise its configuration and receive configuration information from adjacent
LLDP-enabled LAN infrastructure devices. The collected information is stored in a management
information base (MIB) on each device, and is accessible via a simple network management protocol
(SNMP).
Protocol Data Units
Configuration information is exchanged in the form of type, length, value (TLV) segments. Figure 18-1
shows the Chassis ID TLV.
Type—the kind of information included in the TLV
Length—the value, in octets, of the TLV after the Length field
Value—the configuration information that the agent is advertising

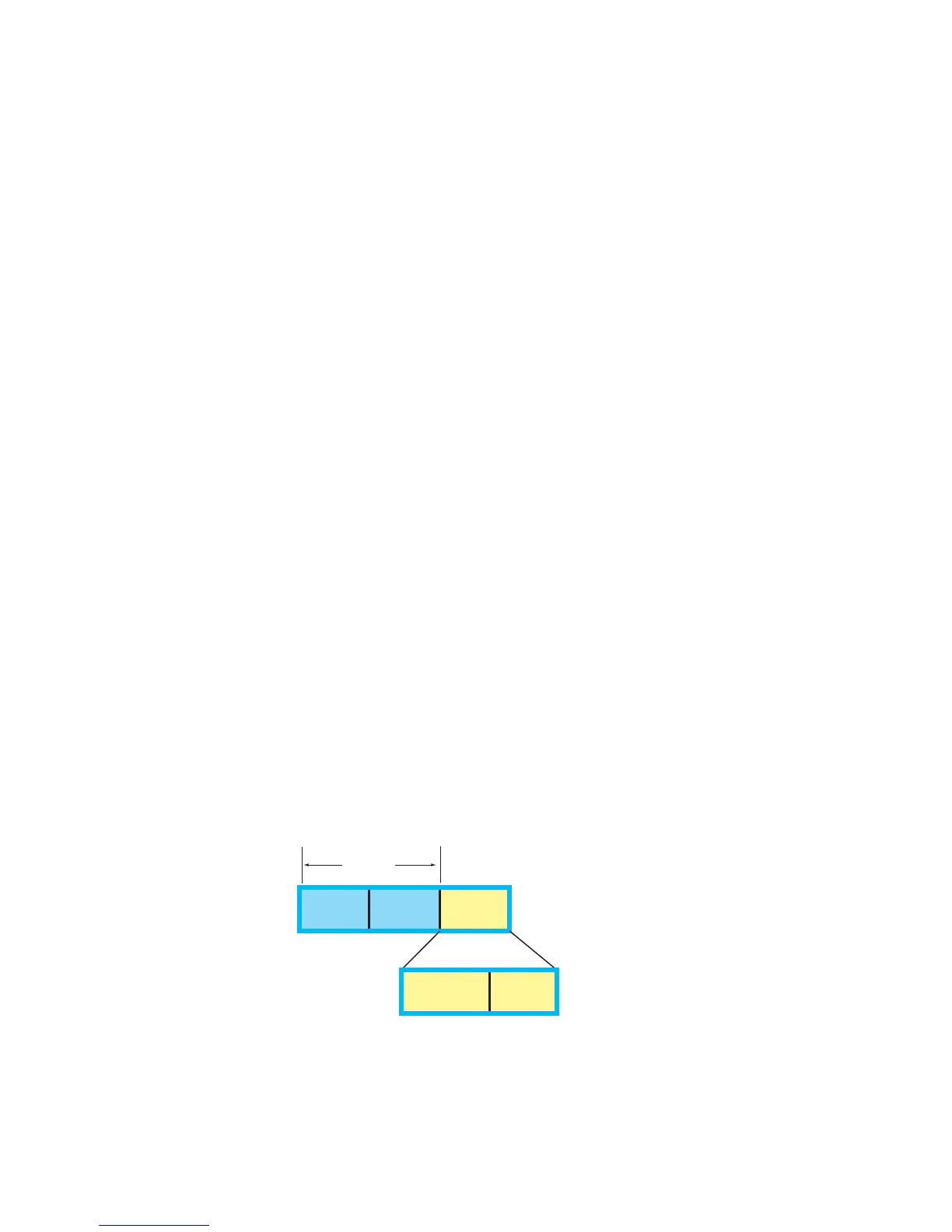

Figure 18-1. Type, Length, Value (TLV) Segment
Chassis ID Sub-type
fnC0057m
p
Chassis ID
7 bits
9 bits
1 octet
1- 255 octets
TLV Type
(1-127)
TLV Length
Value
TLV Header
0-511 octets
