298 | Link Aggregation Control Protocol (LACP)

www.dell.com | support.dell.com

To Verify LAG 10 Status on ALPHA, use the show lacp command (Figure 16-13).

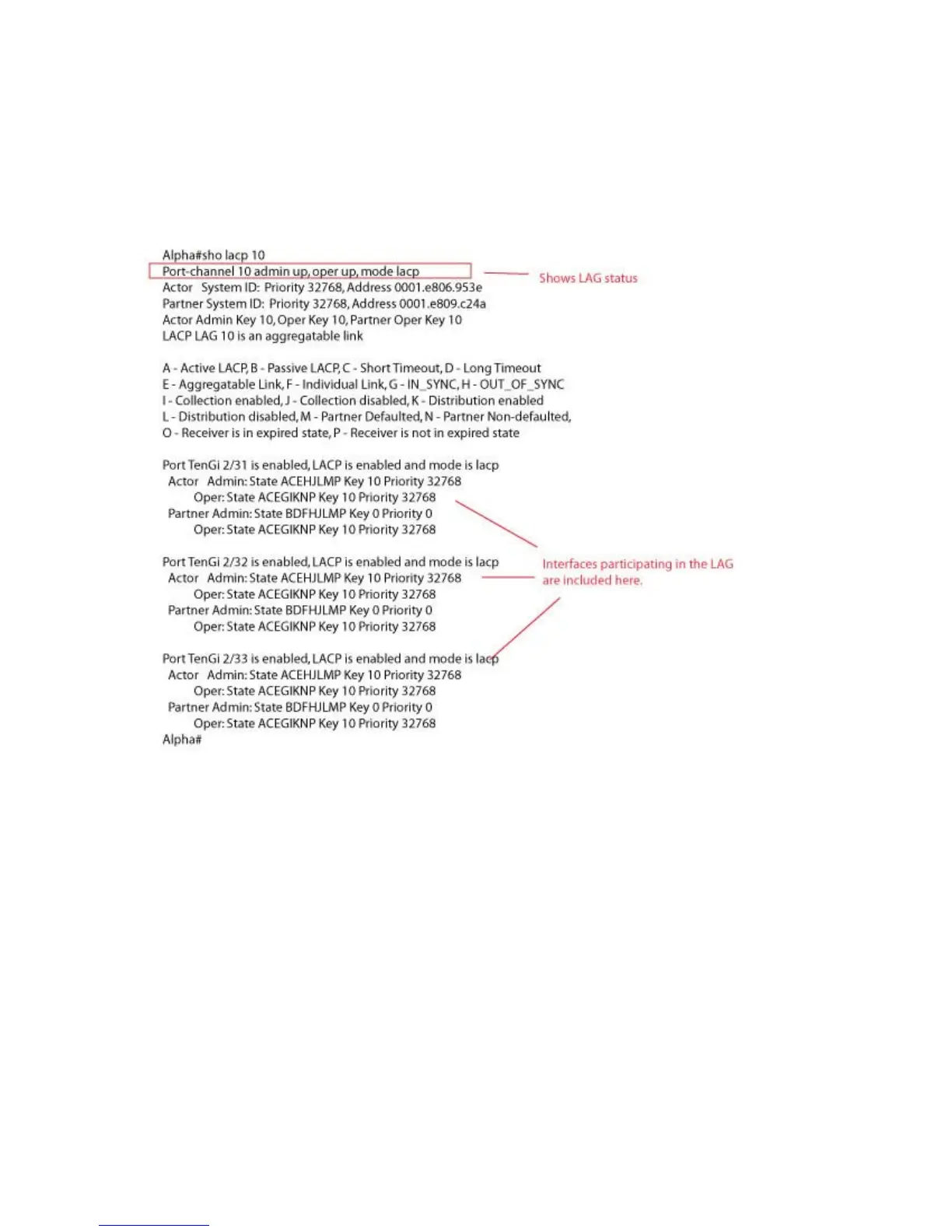

Figure 16-14. show lacp Command Example
