Link Aggregation Control Protocol (LACP) | 301

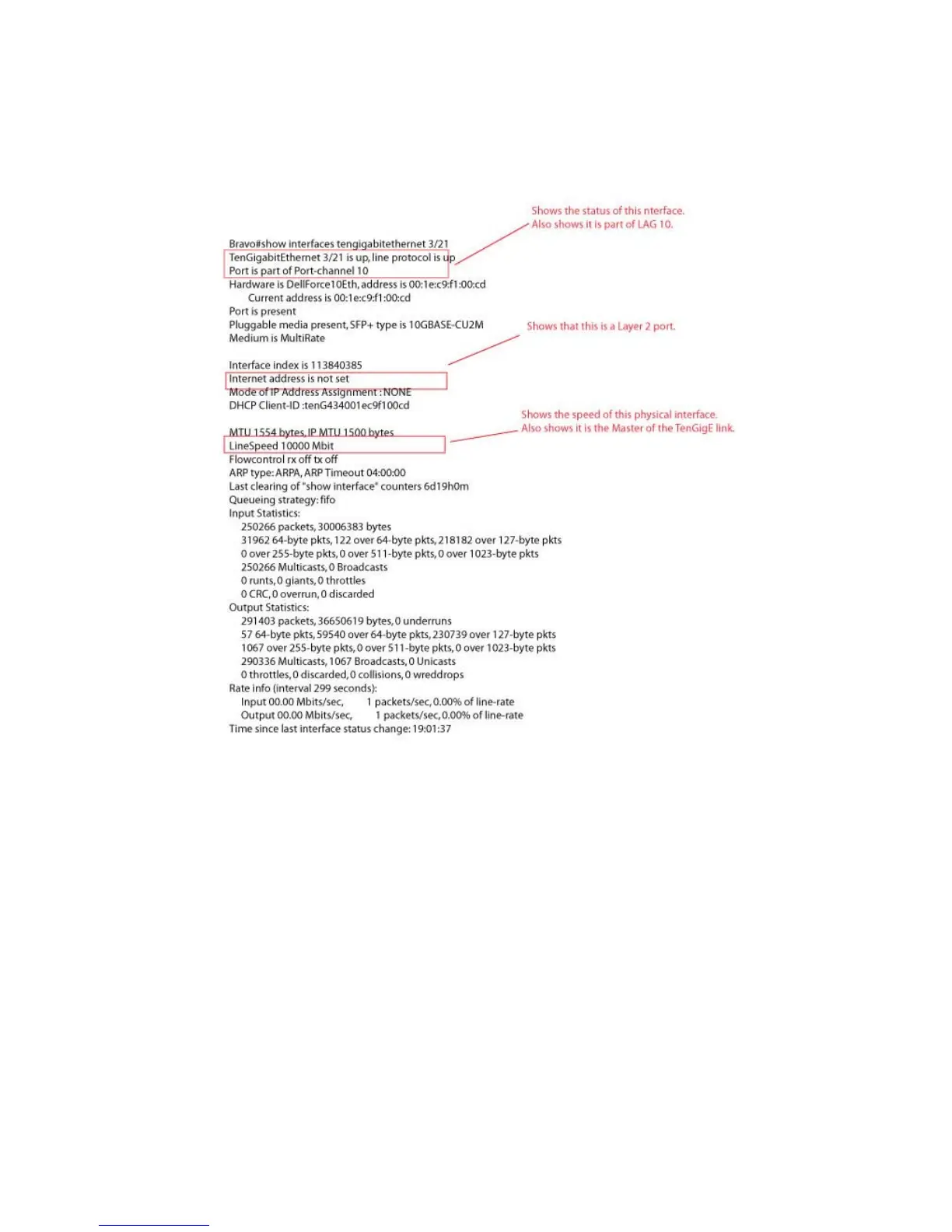

To inspect a LAG port on BRAVO, use the show interface command (Figure 16-17).

Figure 16-17. Inspect the LAG Port on BRAVO
