Diatron Abacus 5 - Figure 1. Abacus 5 with Autosampler Space Requirements

15
Your selected location should allow placement of the reagents in an unobtrusive location below the laboratory bench
that the instrument is placed on, or on the same surface. Placement below the laboratory bench also allows for
storage of a spare set of reagents. Never place the reagents above the ‘Abacus 5’ analyzer.
Placing reagents above the ‘Abacus 5’ analyzer could result in reagent overflow and
spilling.

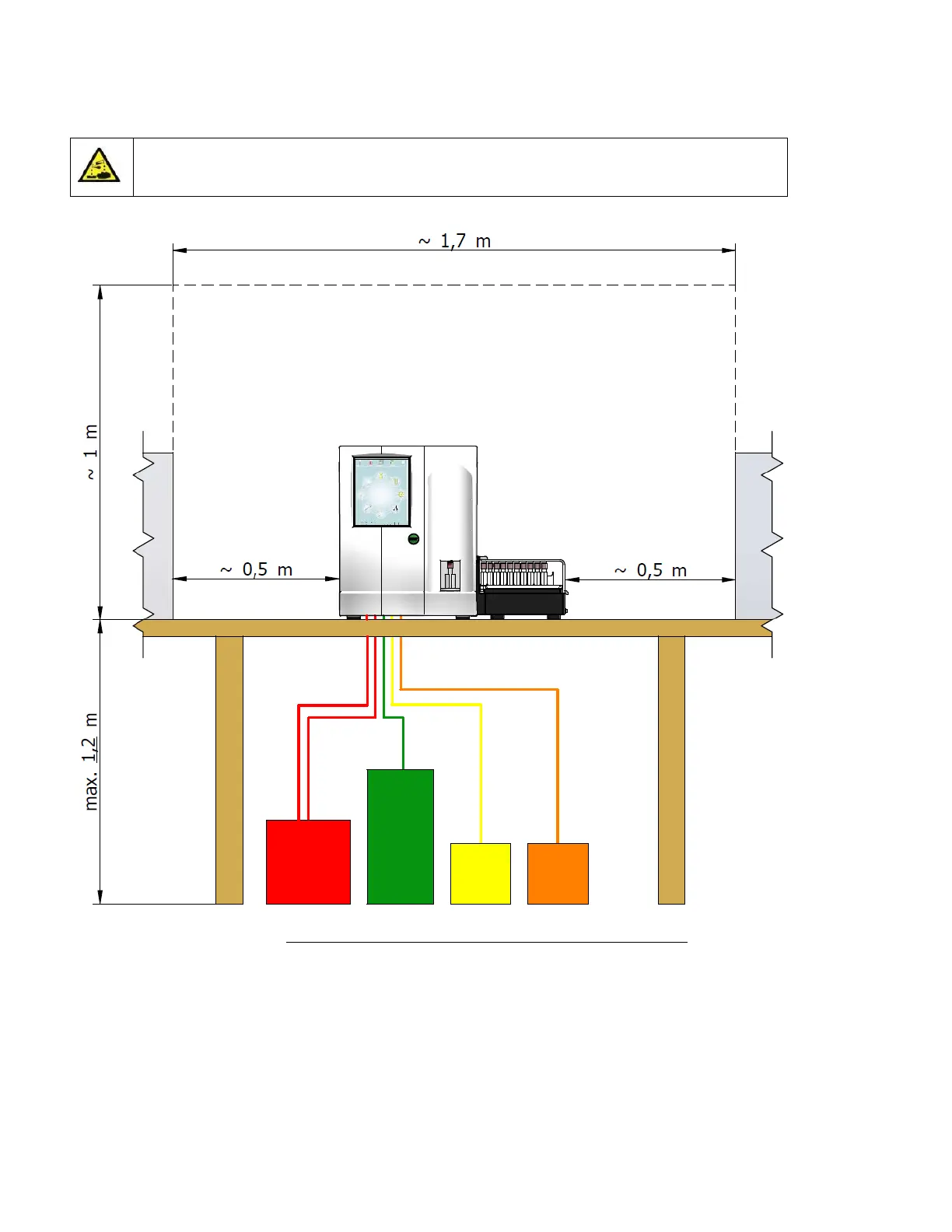

See Figure 1 and Figure 2 for more information about proper analyzer location and clearance.
Figure 1. Abacus 5 with Autosampler Space Requirements
