16

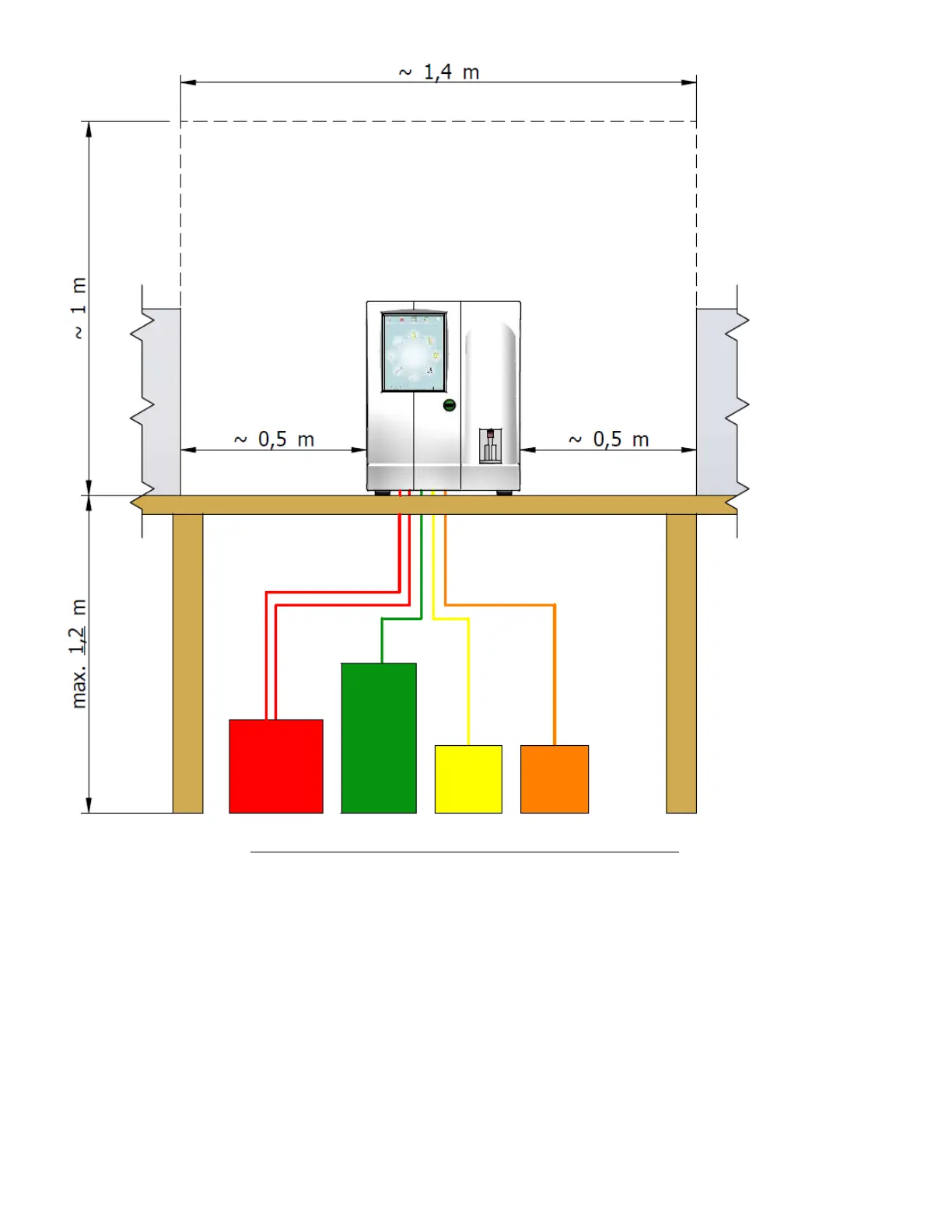

Figure 2. Abacus 5 Without Autosampler Space Requirements
2.7 Weight Requirements
The ‘Abacus 5’ analyzer weighs 35 Kg (77 lb) without the Autosampler. The ‘Abacus 5’ with optional Autosampler
weighs 47Kg (104 lb). Adding an external keyboard, documents etc. can bring the total weight up to 60 Kg (132 lb). If
you decide to store the reagents on the same surface, then the combined weight can reach 100 Kg (220 lb).
Please select a table, laboratory shelf, or other location which can support the weight of the ‘Abacus 5’ with
accessories and is free from vibration.
