5.3.5 Front Assembly

Shear Valve

Aspiration Needle

Sample Rotor

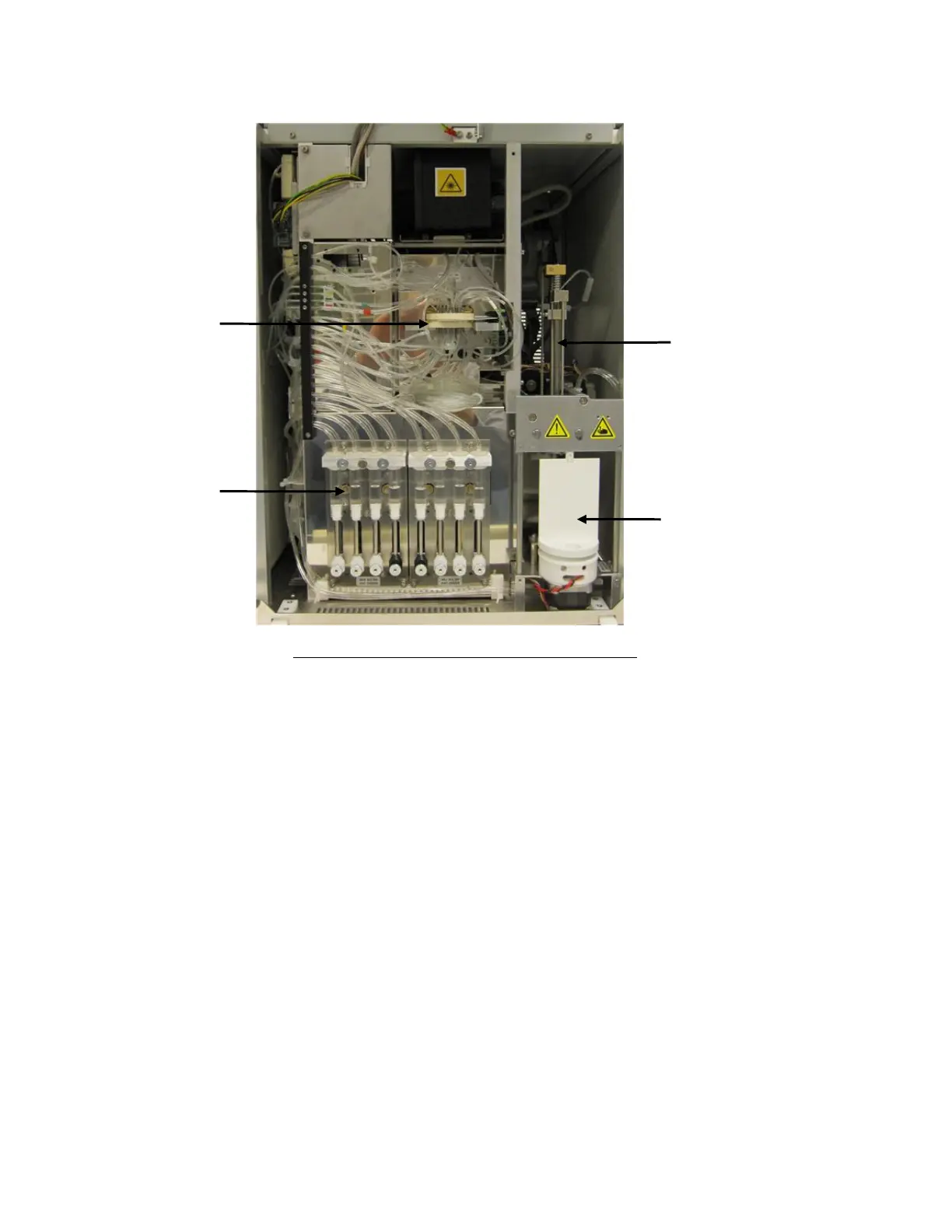

Figure 14. Front Assembly Behind the Front Panel

 Syringe pumps control the volume and flow rate of reagents through the pneumatic components.

 Shear valve is an integrated multi-functional valve for segmenting precise volumes of blood.
