ALT2 keys
Horizontal alignment

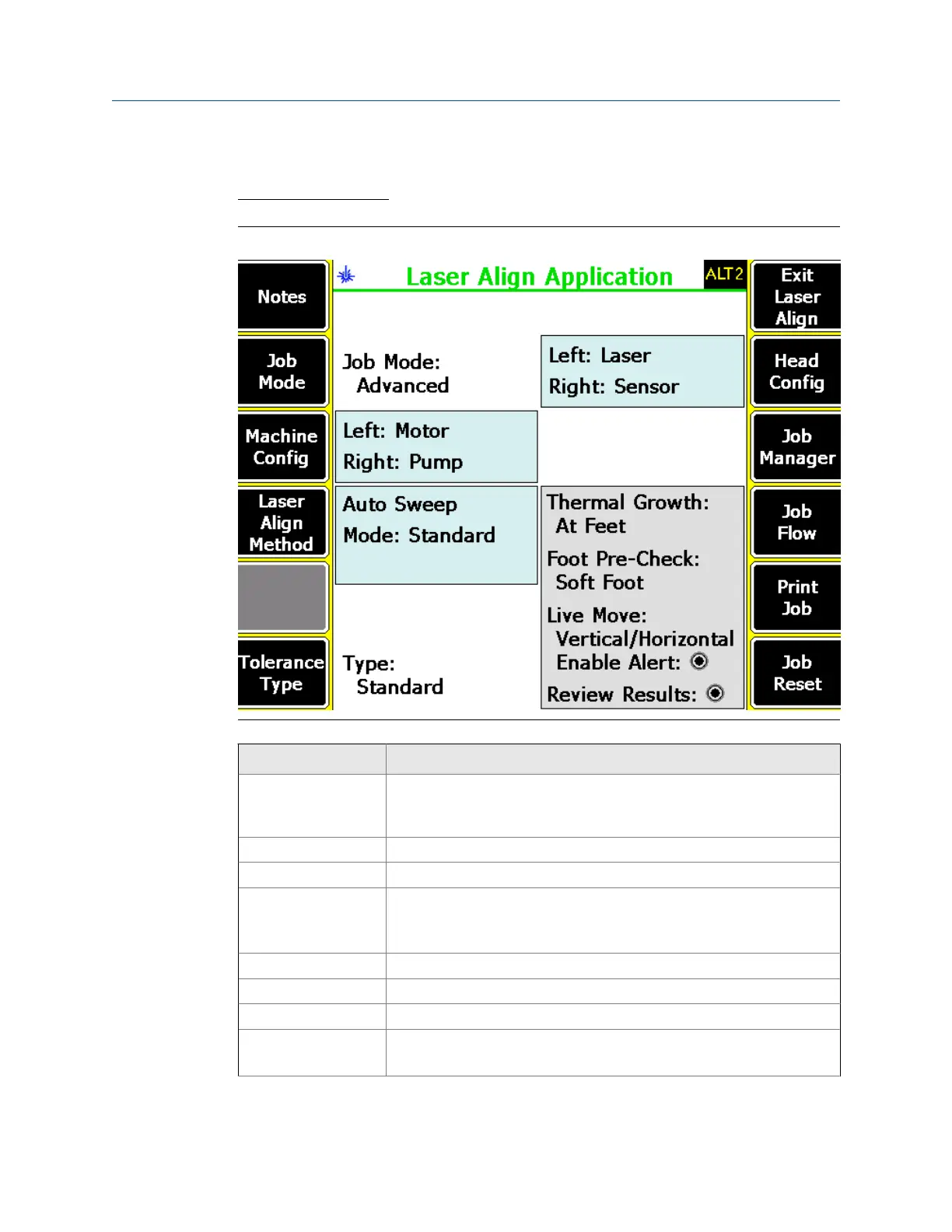

ALT 2 keys - horizontal alignmentFigure 7-3:
Option Description
F1 Notes Create, add, or remove notes from an alignment job or the analyzer.
Notes can be saved with the job to help you remember important
information about a machine.
F2 Job Mode Select Advanced or Basic.
F3 Machine Config Select the machine components for the alignment job.
F4 Laser Align Method Select the alignment method.
This is intentionally blank when the job mode is set to Basic. Manual 4
Point is the only alignment method available in Basic mode.
F5 Intentionally blank.
F6 Tolerance Type Select Standard or Jackshaft tolerance.
F7 Exit Laser Align Exit the Laser Align Application and return to the Home screen.
F8 Head Config Specify or view the placement of the laser and sensor.
This is also where you can check the status of the laser and sensor.
Advanced Laser Alignment
MHM-97432 Rev 7 167
