Growth At Profile

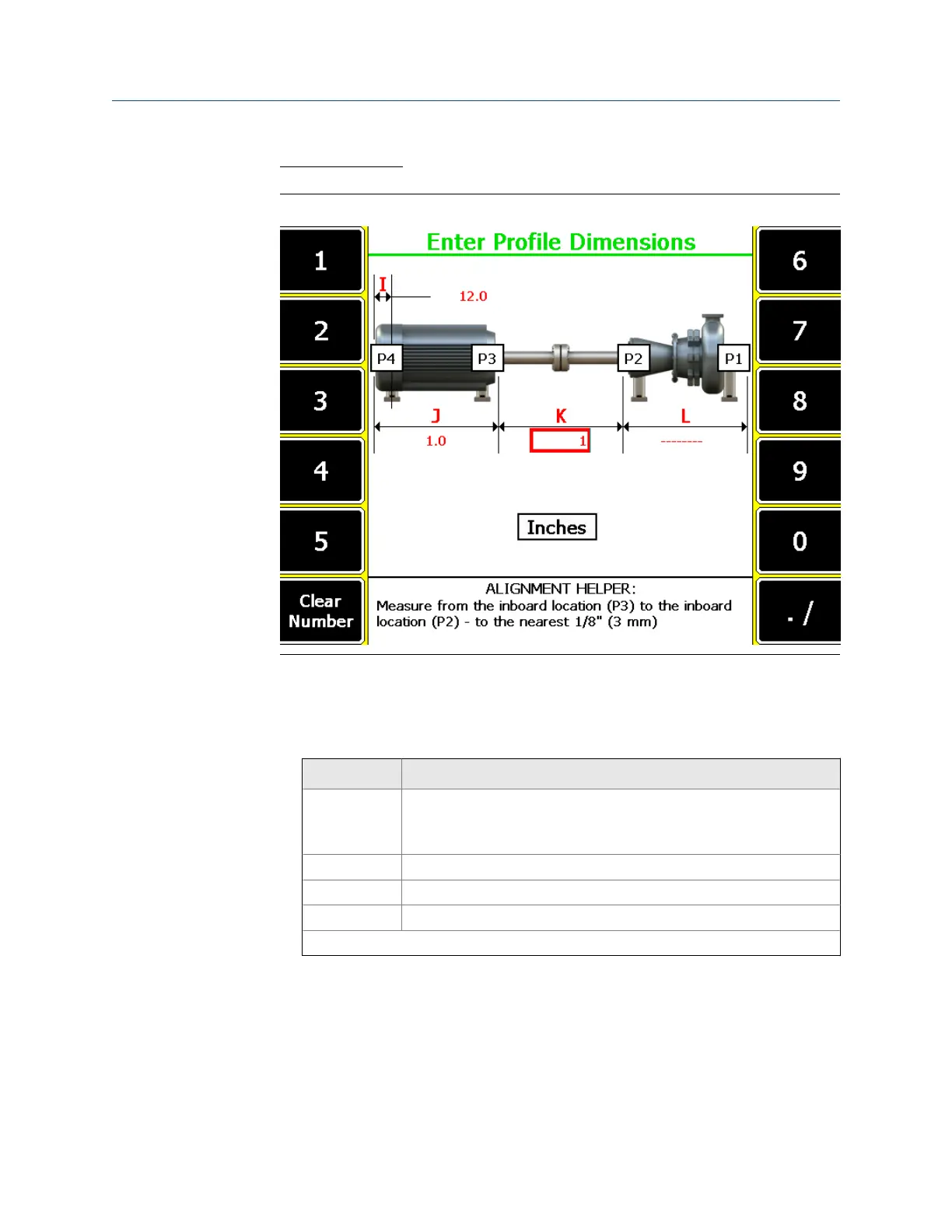

Enter profile dimensionsFigure 7-19:
a. Enter dimensions for the profile locations and their relationship with respect to
the machine feet locations as defined in the Enter Dimensions screen and press
Enter.
Dimension* Measurement description
I Profile P4 to the center of the outboard foot of the machine on the left.
This value should be negative if the location of profile P4 is closer to the
coupling than the outboard feet of the machine.
J Profile P4 to profile P3.
K Profile P3 across the coupling to profile P2.
L Profile P2 to profile P1.
*Measure to the nearest 1/8 inch (3 mm).
b. Enter the amount of vertical and horizontal thermal growth at a location other
than at each machine foot.
If one or both machines experience downward growth during operation, enter
negative numbers for the vertical direction. If one or both machines experience
growth to the right during operation, enter negative numbers for the horizontal
direction.
Advanced Laser Alignment
MHM-97432 Rev 7 203
