c. Press Enter.
This displays the Growth At Feet screen showing the calculated vertical and
horizontal thermal growth at each machine foot.
If one or both machines experience downward growth during operation,
negative numbers are displayed for the vertical direction. If one or both
machines experience growth to the right during operation, negative numbers
are displayed for the horizontal direction.
Gap/Offset

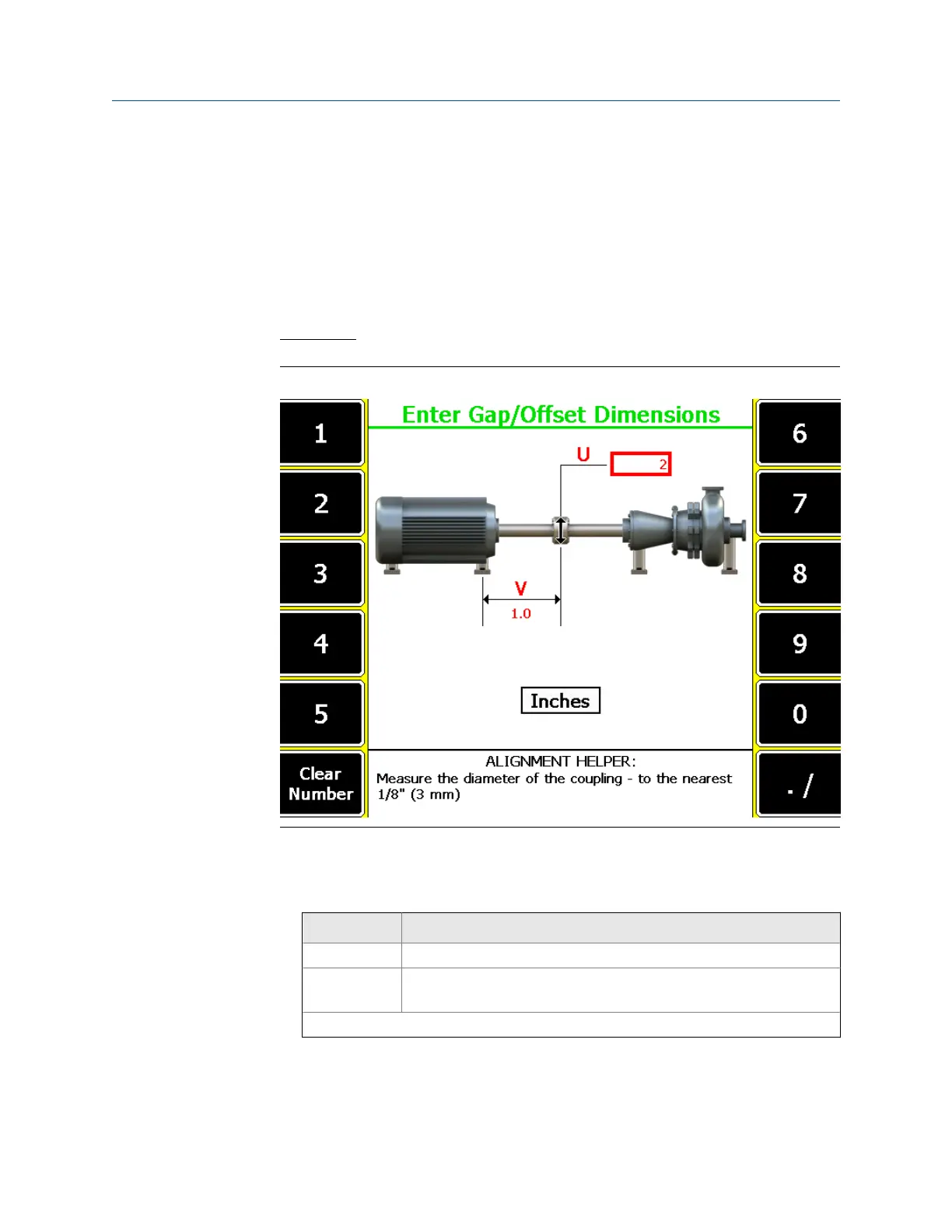

Gap/OffsetFigure 7-20:
a. Enter dimensions for the coupling and its relationship with respect to the
machine feet locations as defined in the Enter Dimensions screen and press Enter.
Dimension* Measurement description
U Diameter of the coupling.
V Center of the inboard foot on the left machine to the center of the
coupling.
*Measure to the nearest 1/8 inch (3 mm).
b. Enter the gap and offset thermal growth numbers at the coupling for both
vertical and horizontal directions and press Enter after entering each value.
Advanced Laser Alignment
204 MHM-97432 Rev 7
