Use the Set Gap and Set Offset keys to enter gap and offset growth for the
specified location. Use the Set Direction keys to define whether the coupling gap
is open at the top or bottom and to set the coupling offset location (whether the
left machine is higher than the right or vice versa).
Gap is the difference in the coupling halves at the top and bottom at the
specified diameter. If the number is greater at the top, the gap is considered to
be “open” at the top. If the number is greater at the bottom, the gap is
considered to be “open” at the bottom.
Offset is the difference in the coupling halves at the top. It is either the coupling
of the left machine is higher than the right machine or the coupling of the right
machine is higher than the left machine.
c.
Press Enter.
This displays the Growth At Feet screen showing the calculated vertical and
horizontal thermal growth at each machine foot.

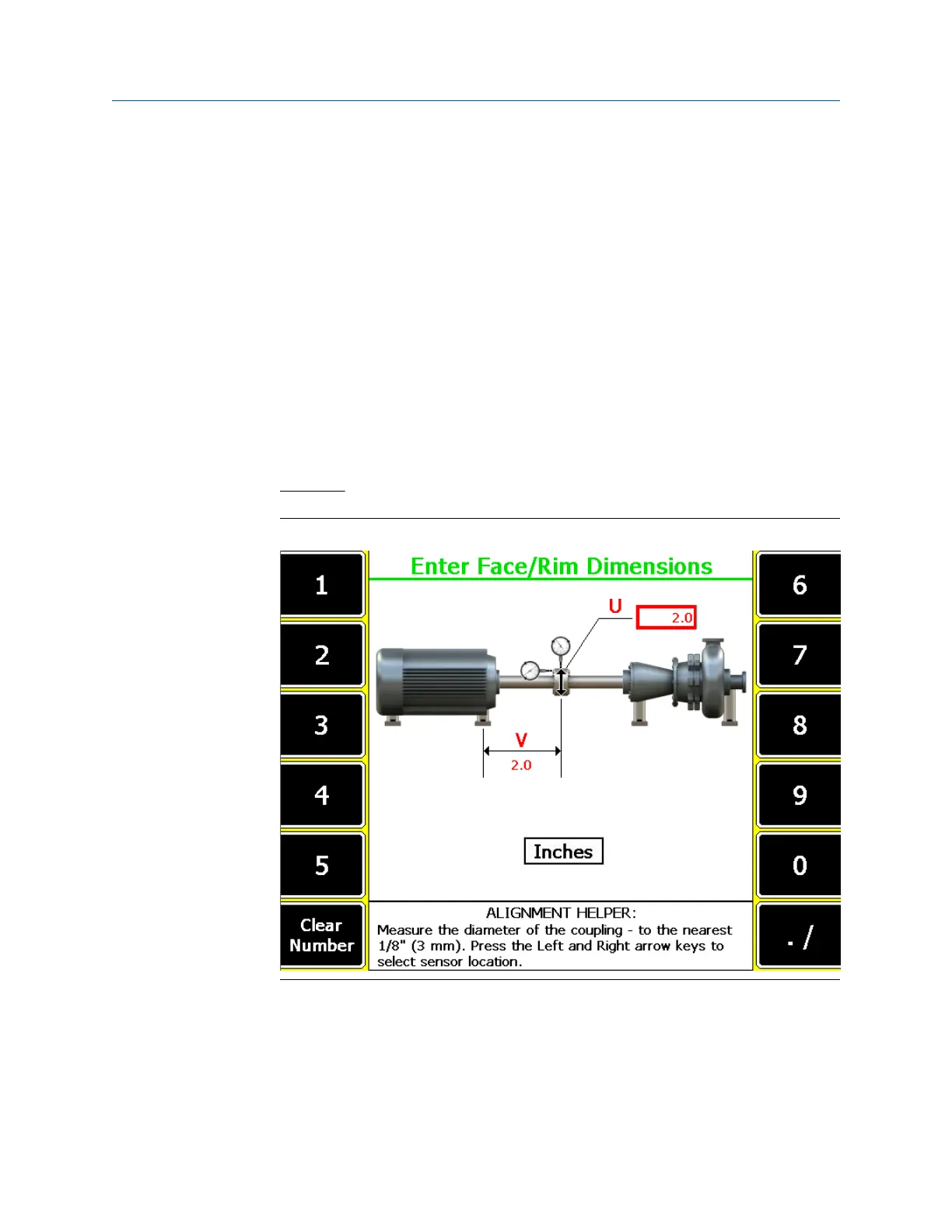

Face/Rim
Face/RimFigure 7-21:
a. Enter dimensions for the coupling and its relationship with respect to the
machine feet locations as defined in the Enter Dimensions screen and press Enter.
Advanced Laser Alignment
MHM-97432 Rev 7 205
