Emerson CSI 2140

Pass Mode

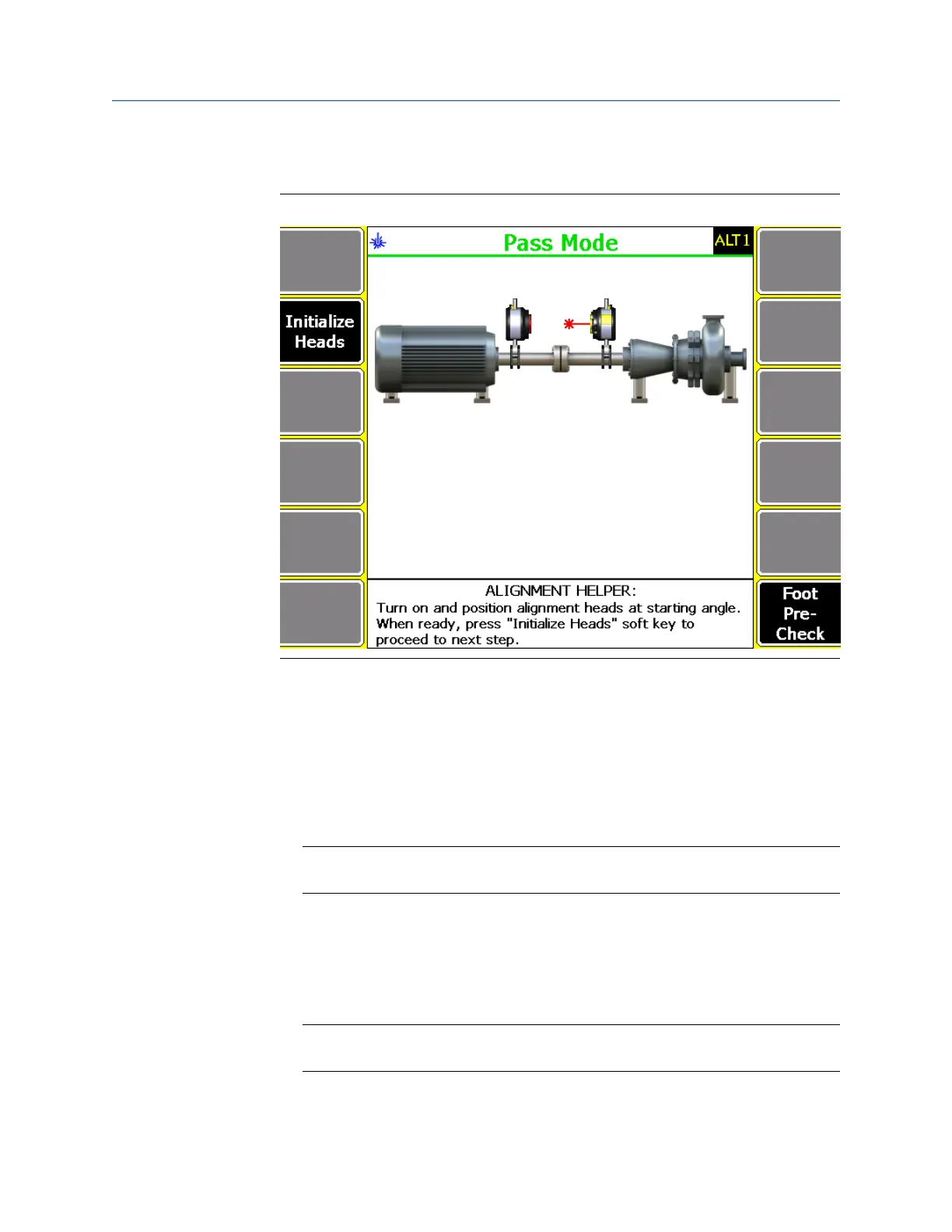

Pass ModeFigure 7-24:
a. Position the laser and sensor at a starting angle (any angle). The laser fixtures do
not have be in alignment with each other during this step.
b.
Press Initialize Heads.
c. Rotate one of the laser fixtures (laser or sensor) past the other.
The Laser Align Application takes a reading whenever the laser and sensor pass
through alignment.
Note
Do not rotate the laser or sensor too fast to capture the data readings.
d. Rotate the other laser fixture (laser or sensor) past the one previously rotated in
the step c.
The Laser Align Application takes a reading whenever the laser and sensor pass
through alignment.
Note
Do not rotate the laser fixture (laser or sensor) too fast to capture the data readings.
Advanced Laser Alignment
MHM-97432 Rev 7 209
