Emerson CSI 2140

Manual 4 Point

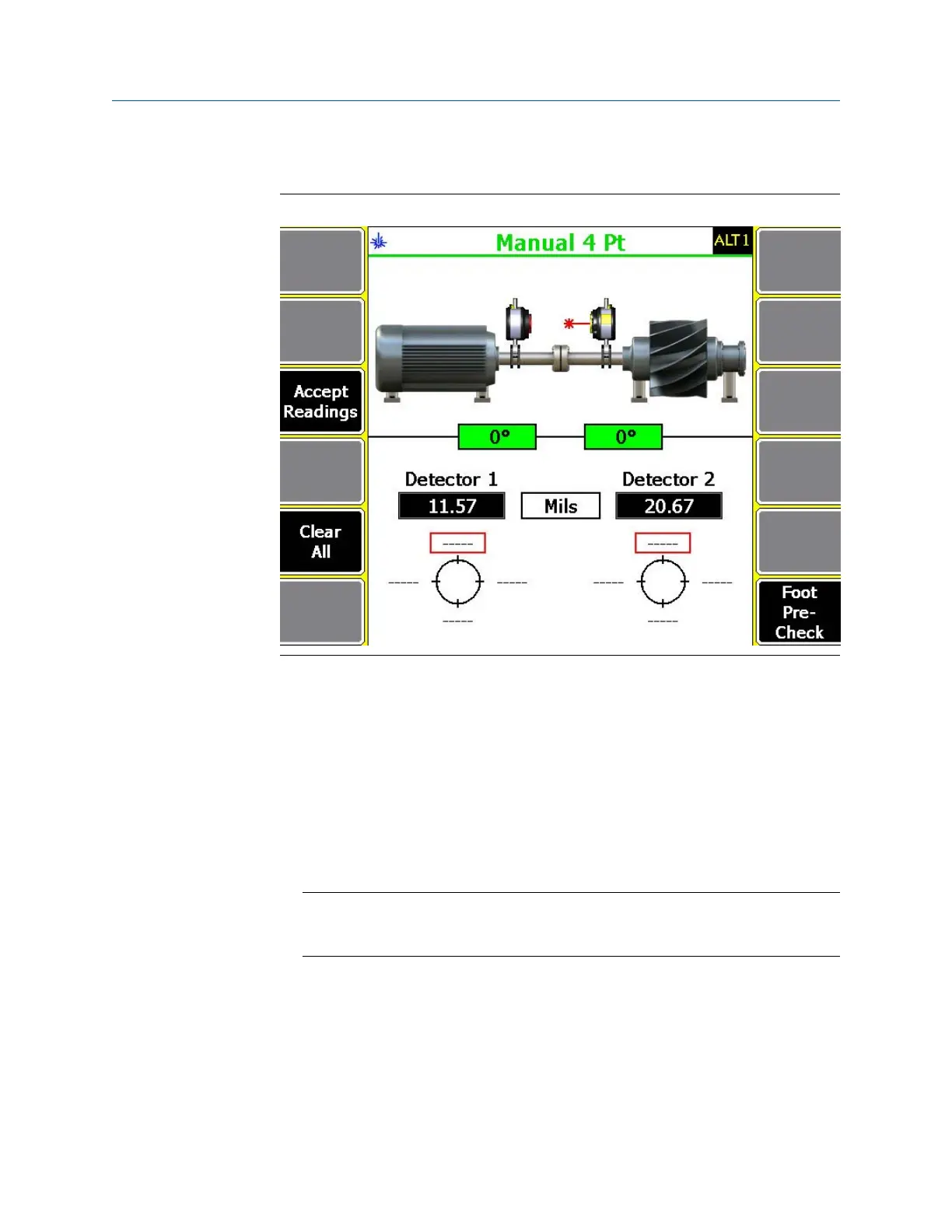

Manual 4 PointFigure 7-27:
a. Position the laser and sensor at a starting angle (ideally at the first cardinal
position, 0°).
The laser and sensor angles should be within 2° of each other and within 3° of the
active cardinal position (0°, 90°, 180°, and 270°), if possible. When this happens,
the background of the box displayed below the machine is green. If the laser and
sensor angles are not within 2° of each other and 3° of the active cardinal
position, the box background is white.
b. Rotate the laser fixtures a full revolution stopping at each cardinal position (0°,
90°, 180°, and 270°). Press F3 Accept Readings after stopping at each point.
Note
While it is always desirable to measure at all four cardinal positions, it is possible to
estimate an alignment solution with only three measurements.
The status LED on the analyzer flashes and an audible tone is produced whenever
a reading is taken. The audible tone is only available when the Status Beeper on
the General Setup screen is set to On
.
c. After taking readings for each of the cardinal position, press Enter.
Advanced Laser Alignment
212 MHM-97432 Rev 7
