7.5.6 Align the machine - horizontal alignment
After you acquire alignment data, the Laser Align Application automatically advances to
the next step, which is to make adjustments on the machines to align them (Move
Machine), if necessary. After completing this step, the Move Machine function on the Laser
Align Application main menu is marked with an X.
Procedure
1.
After acquiring alignment data, press Enter.
2. Review the amount of required vertical and horizontal machine moves and make the
necessary adjustments to the machine.

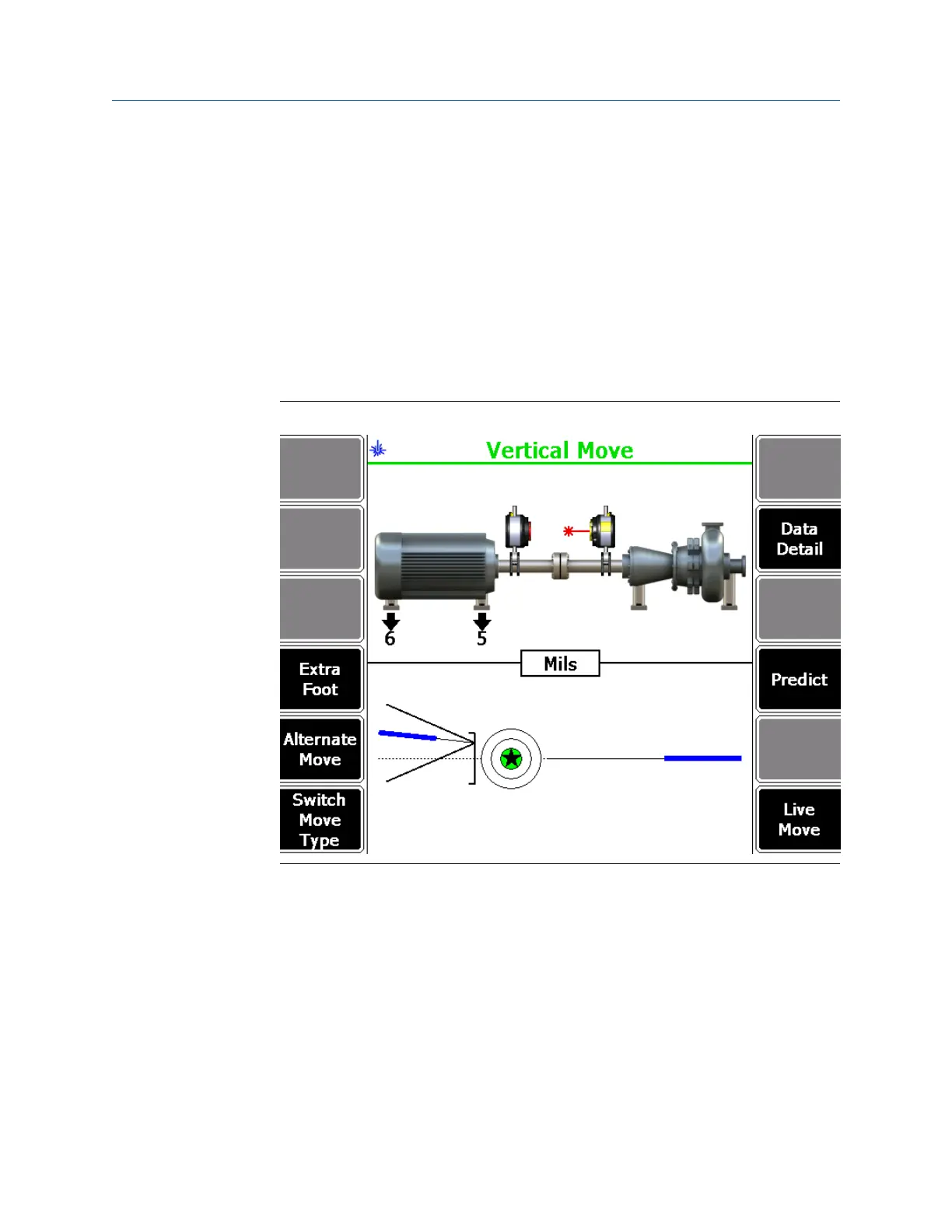

Vertical machine moveFigure 7-31:
For vertical machine moves, if the required movement is positive, the amount of
movement is shown above the machine at the appropriate foot with an up arrow. If
the required movement is negative, the amount of movement is shown below the
machine at the appropriate foot with a down arrow.
Advanced Laser Alignment
MHM-97432 Rev 7 219
