This displays the movement required to align the machine vertically or horizontally.
The bull's-eye target compares the total misalignment to the target tolerance. Each
circle in the bull's-eye target has a different meaning: red—more than two times the
tolerance, yellow—between one and two times the tolerance, green—within
acceptable the tolerance, green with a star—within excellent tolerance.
For movement in the vertical direction, if the movement required is positive/
upward, values are displayed above the machine. If the movement required is
negative/downward, values are displayed below the machine.
For movement in the horizontal direction (as viewed from the outboard end of the
right machine looking towards the left machine), if the movement required is
positive/to the left, values are displayed below the machine. If the movement
required is negative/to the right, values are displayed above the machine.

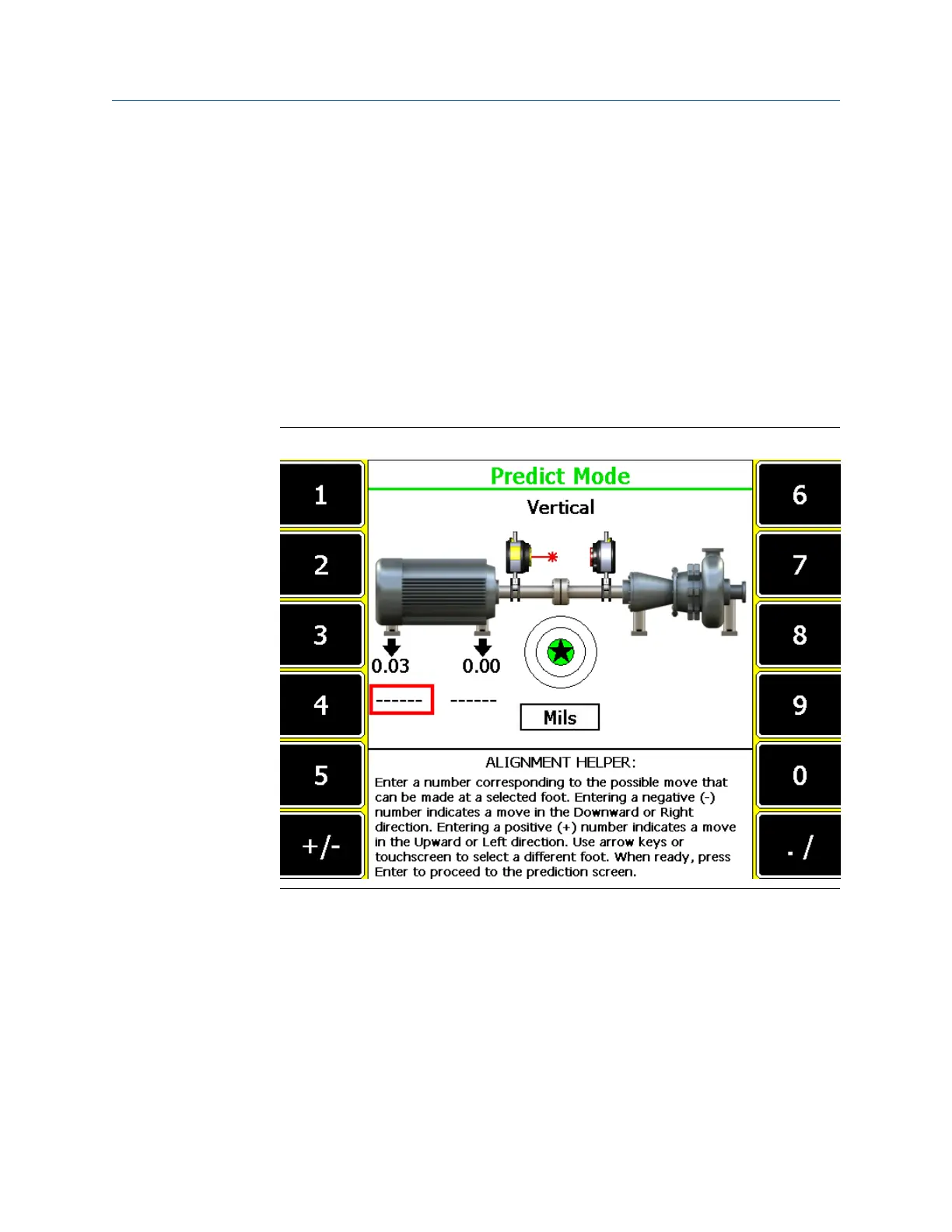

Predict modeFigure 7-35:
2. Optionally, enter a value corresponding to the possible move that can be made at
the selected foot.
3. Press Enter.
This shows the Prediction screen where you can view the alignment condition if the
moves specified are to be performed.
Advanced Laser Alignment
MHM-97432 Rev 7 225
