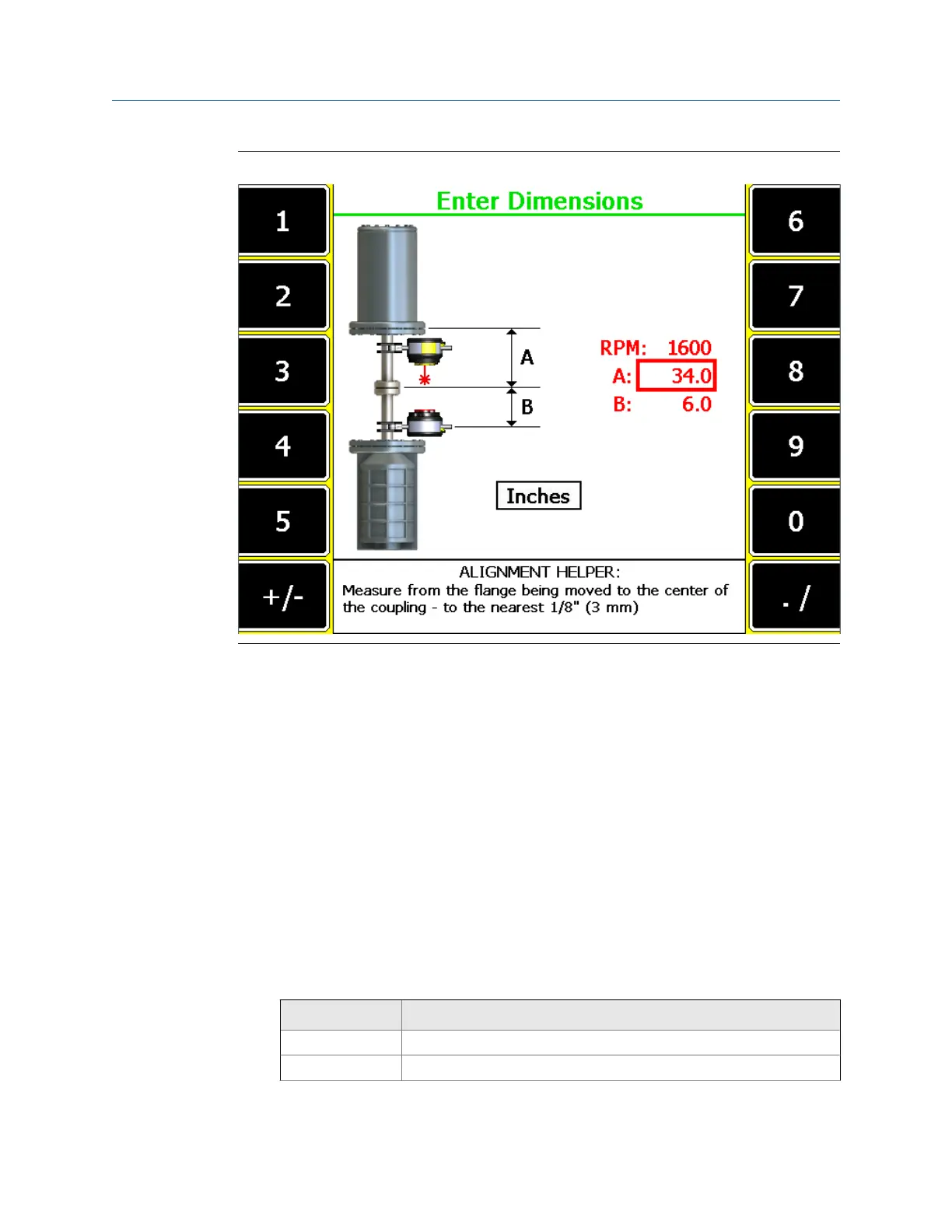

Enter dimensions - vertical alignmentFigure 7-37:
Prerequisites
1. Ensure the laser and sensor are mounted on the machines.
2. Create and/or activate an alignment job and set up the job parameters. An
alignment job is needed to perform alignment.
3. Set the measurement units for the alignment job. See Section 2.14.8 for more
information.
Procedure
1. From the Laser Align Application main menu, press F3 Enter Dimensions.
2. Set the machine RPM. This parameter is used to establish alignment tolerances.
If you have a variable speed machine, enter the highest RPM at which the coupling
operates.
3. Enter machine dimensions and press Enter.
Dimension* Measurement description
A Flange being moved to the center of the coupling
B Center of the coupling to the center of the sensor mounting post
Advanced Laser Alignment
MHM-97432 Rev 7 231
