A Using the transmitter display
This section explains how to use the display. Using the display, you can move through the menus, configure
the application, monitor and control the application, and perform maintenance and diagnostic tasks.
A.1 Components of the transmitter display
The transmitter display includes two status LEDs, a multi-line LCD panel, and four capacitive buttons — left, up,
down, and right — used to access the display menus and navigate the display screens.

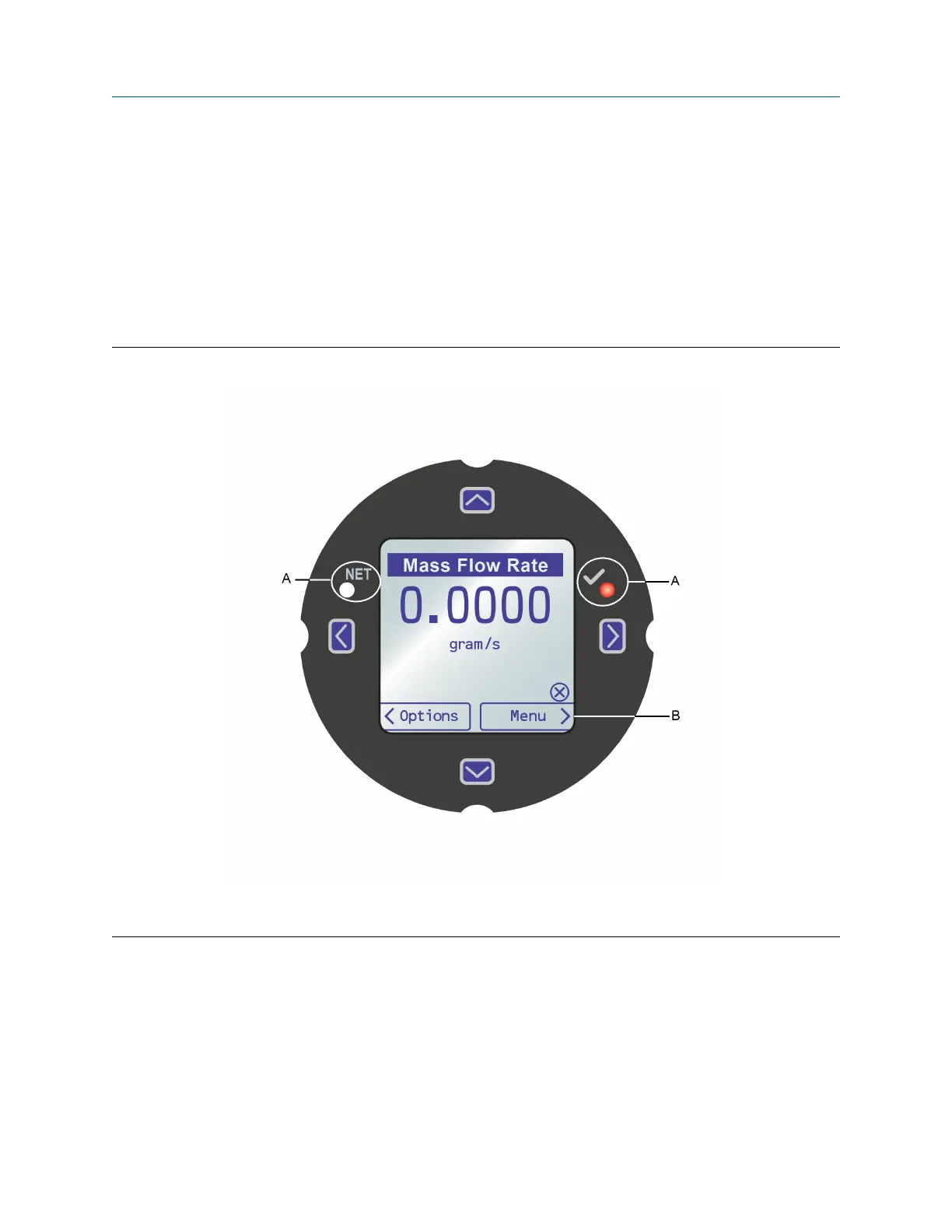

Figure A-1: 1600 transmitter display
A. Status LED
B. LCD Display
Status LEDs
The status LEDs indicate the current state of the transmitter (STATUS). From the display, the symbol “√” on the
right side is the transmitter status LED. The symbol “NET” on the left side is the network status LED. The 1600
status LED supports NE107 mode. For configuration information, see the Micro Motion 1600 Transmitters with
Configurable Inputs and Outputs: Configuration and Use Manual.
