Patch 135

{Color Wheels} - An attribute used to change the color wheel loaded in a moving light. Select

the {Color Wheels} button on the CIA to display the wheel picker with the options available for

your device. See Using the Picker (on page125) “More” as shown in the patch display, indic-

ates additional parameter properties are available for the selected device, such as the color

and gobo wheels.

[4] {Attributes} {Color Wheels} - selects channel 4 and opens the wheel picker in the CIA

for color wheel selection.

{Gobo Wheels} - An attribute used to change the gobo wheel loaded in a moving light. Select

the {Gobo Wheels} button on the CIA to display the wheel picker with gobo options available

for your device. See Using the Picker (on page125)

[3] {Attributes} {Gobo Wheels} - selects channel 3 and opens the Wheel Picker in the

CIA for gobo wheel selection.

{Effect Wheels} - An attribute used to change the effect wheel loaded in a moving light. Select

the {Effect Wheels} button on the CIA to display the wheel picker with the options available

for your device. See Using the Picker (on page125) “More” as shown in the patch display,

indicates additional parameter properties are available for the selected device, such as the

color and gobo wheels.

[5] {Attributes} {Effect Wheels} - selects channel 5 and opens the wheel picker in the

CIA for effect wheel selection.

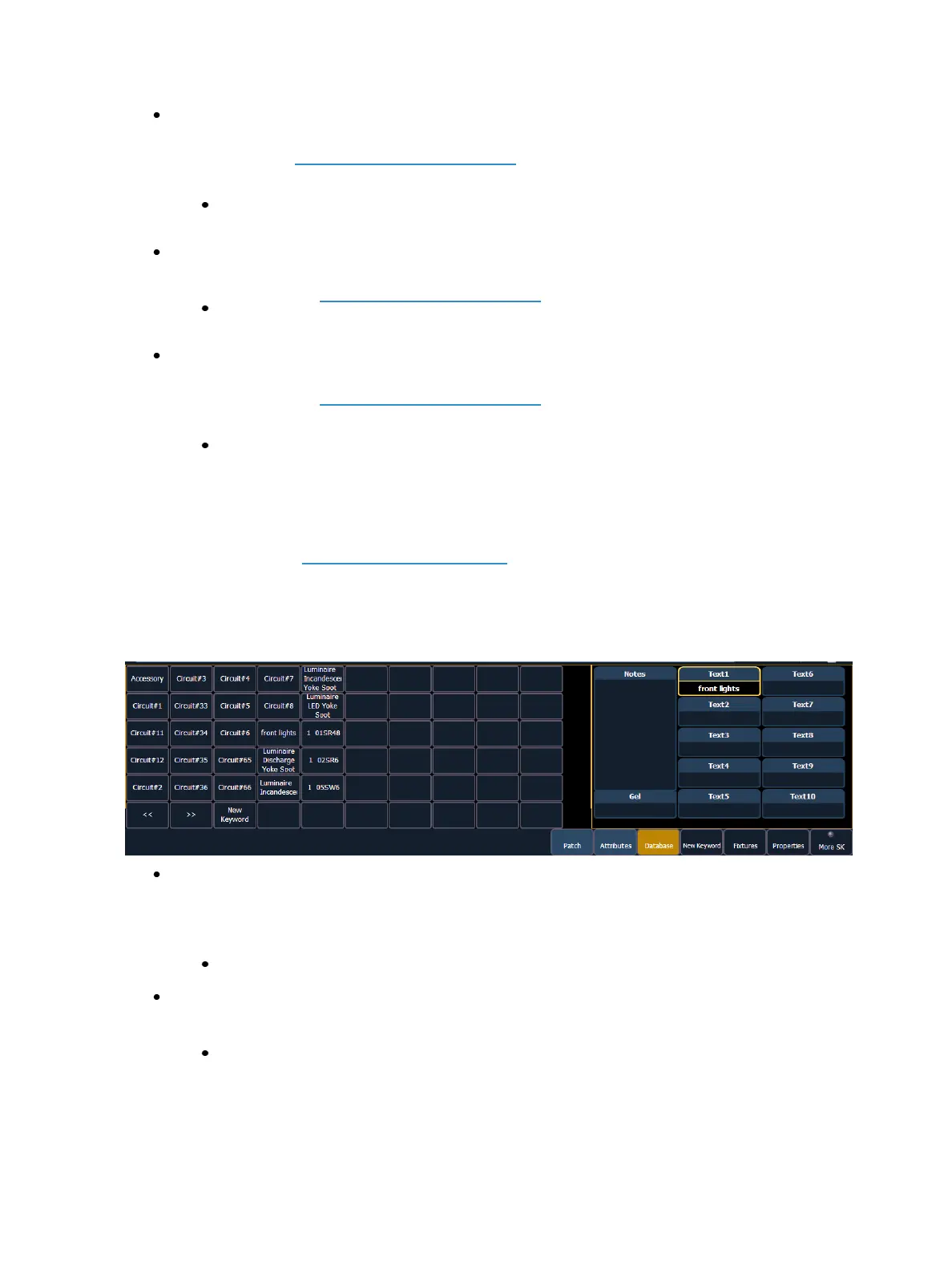

{Database} Display and Settings

The {Database} page provides you with additional fields for entering information that can be used by

the Query function. See Using [Query] (on page304). These fields include {Notes} and {Text 1}

through {Text 10}. Clicking on {Text 1} through {Text 10} will open up a display for selection of

keywords. It will display keywords that were already created as well as showing an option for cre-

ating new keywords. Clicking on {New Keyword} will display an alphanumeric keyboard for entering

in a new keyword.

{Text} - Text fields are used to provide up to ten keywords about any channel or group of chan-

nels. These fields can be anything that you think is important about a channel, such as its loc-

ation (FOH), an attribute of it (wash, spot) or other characteristics of the channel (such as gel

R80). You may use the virtual keyboard in the CIA, or an external keyboard, to provide up to

30 characters of key words about the device.

[5] {Database} {Text 1} < FOH right> [Enter] - adds text to channel 5.

{Notes} - Provides you the ability to attach a text note to a channel or group of channels.

Select the {Notes} button on the CIA to display the virtual keyboard. You may type a label or

any length of note regarding your channel in this space.

[5] {Database} {Notes} <this fixture is a backup to channel 15 for front of house right /

new lamp installed on 10/4/17> [Enter] - adds a note to channel 5.
