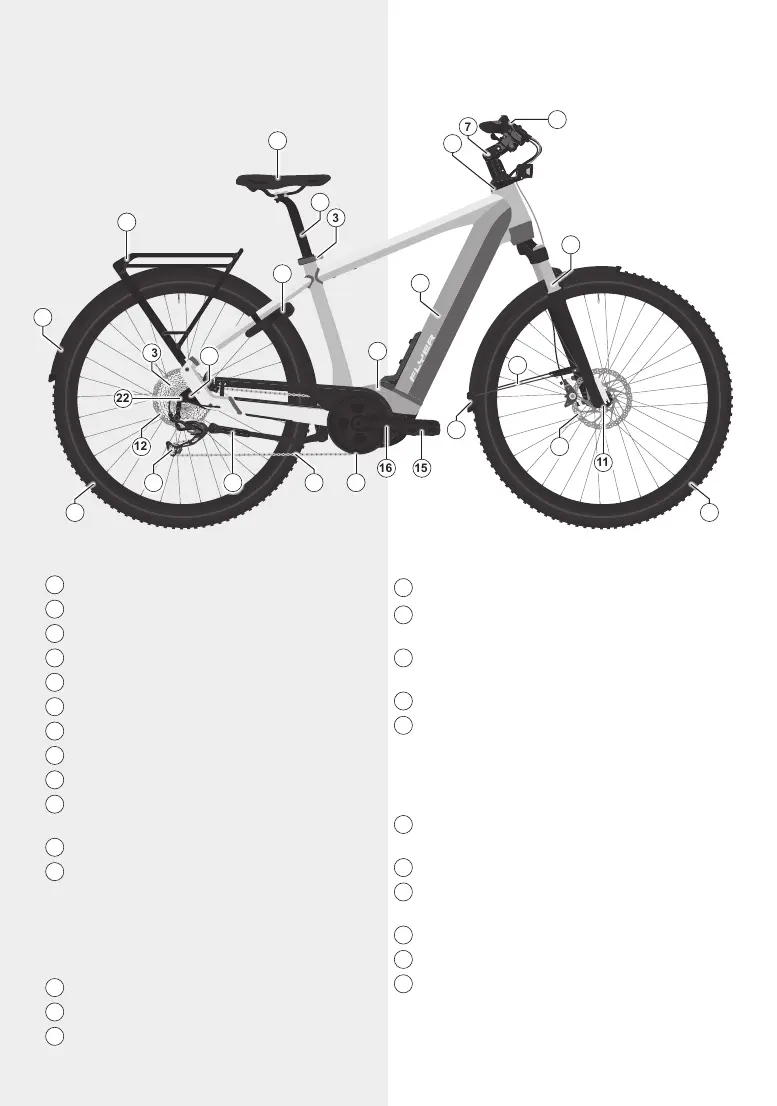

The FLYER e-bike
and its components
16
Crank arm (pedal crank)
17
Chainring/front gearwheel (chain drive)
For belt drive: See Fig.9 “Belt drive components”
18
Chain (chain drive)
For belt drive: See Fig.9 “Belt drive components”
19
Kickstand
20
Shifting unit (derailleur gears)
Other gear shift components: See Fig.18 “Derail-
leur gear components”.
For hub gears: See Fig.19 “Hub gears compo-
nents”.
21
Rear wheel
Also see Fig.31 “Wheel components”
22
Rear hub
23
Pinion/rear gearwheel (chain drive)
For belt drive: See Fig.9 “Belt drive components”
24
Dropout
25
Luggage rack
26
Bike lock
1
Saddle
2
Seat post
3
Seat post clamp
4
Motor (electric drive system)
5
Down tube (with battery holder)
6
Head tube (with headset)
7
Stem
8
Handlebars (with control levers)
9
Front fork/suspension fork
10
Front wheel
Also see Fig.31 “Wheel components”
11
Front hub
12
Brake disc (disc brake)
Other brake components: See Fig.15 “Disc brake
components”.
For the rim brake and coaster brake: See Fig.16
“Rim brake components” or Fig.17 “Coaster brake
components”.
13
Fender
14
Mounting struts (fender)
15
Pedal
